Correcting front inclination angle at transmission - AR41.10-P-0086-03CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 172, 204, 207, 212, 218, 231

	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate		WS26.00-P-3309B

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

	Number	Designation	Model 172	Model 204
BA22.10-P-1004-03E	Rear engine mount on engine support	Nm	28	28

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

	Number	Designation	Model 207	Model 212
BA22.10-P-1004-03E	Rear engine mount on engine support	Nm	28	28

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

	Number	Designation	Model 218	Model 231
BA22.10-P-1004-03E	Rear engine mount on engine support	Nm	28	30

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation				Model 172	Model 204
BA22.10-P-1005-03E	Bolt, rear engine support to frame floor assembly	M10x22	Silver	Nm	65	70
			Black	Nm	-	55
		M10x24	Black	Nm	-	50
			M10x38	Nm	-	-

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation				Model 207	Model 212
BA22.10-P-1005-03E	Bolt, rear engine support to frame floor assembly	M10x22	Silver	Nm	70	70
			Black	Nm	-	55
		M10x24	Black	Nm	50	-
			M10x38	Nm	-	-

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation				Model 218	Model 231
BA22.10-P-1005-03E	Bolt, rear engine support to frame floor assembly	M10x22	Silver	Nm	70	-
			Black	Nm	55	-
		M10x24	Black	Nm	-	-
			M10x38	Nm	-	45

Correct front inclination angle (∠ 1)

For inclination angle correction at the rear engine crossmember (34) or at the rear engine mount, mount shop-made shims. A 1 mm thick shim changes the inclination angle by approx. 0.17°.

The bolt length should be increased by 5 mm when using shims with a thickness of >2 mm If a shim with thickness of >5 mm is required, the front and rear engine mounts must be checked for signs of settling or wear and replaced if necessary.

Support transmission.
Remove rear engine crossmember (34).
Depending on the correction insert the shop-made shims between the rear engine crossmember (34) and frame floor or between the rear engine mount and the rear engine crossmember (34).
The dimensions for the shims must be taken from the corresponding part; see the picture below.
Install rear engine cross member (34). MODEL 172, 204, 207, 212, 218, 231
Observe specified tightening torque.
Remove telescopic lifter and transmission plate.

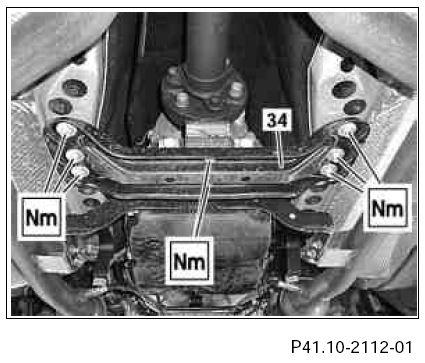

Fig 1: Installing Rear Crossmember

Courtesy of MERCEDES-BENZ USA

Shown: model 211 with engine 112

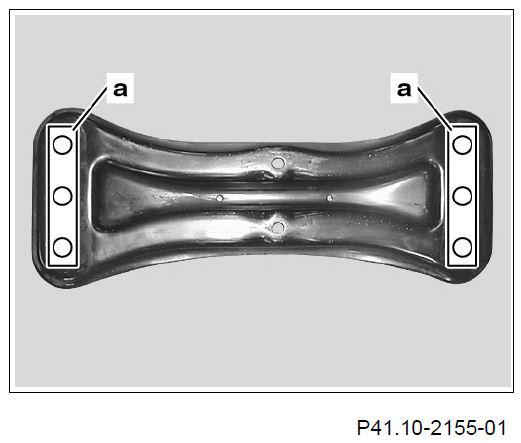

Example: Shop-made shims (a) between the rear engine cross member (34) and frame floor assembly. Material: steel or aluminum.

Fig 2: Shop-Made Shims Between Rear Engine Crossmember And Frame Floor

Courtesy of MERCEDES-BENZ USA

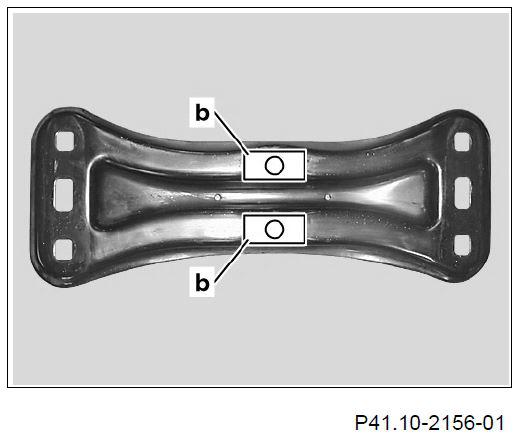

Example: Shop-made shims (b) between the rear engine mount and rear engine cross member (34). Material: steel or aluminum.

Fig 3: Shop-Made Shims Between Rear Engine Mount And Rear Engine Crossmember

Courtesy of MERCEDES-BENZ USA
