Correcting center inclination angle at propeller shaft intermediate bearing - AR41.10-P-0086-04CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 172, 204, 207, 212, 218, 231
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B |
PROPELLER SHAFT INTERMEDIATE BEARING
| Number | Designation | Model 172 | Model 204 | ||
|---|---|---|---|---|---|
| BA41.40-P-1001-01F | Bolt, propeller shaft center support bearing to frame floor assembly | Self-tapping screw | Nm | 23 | 20 |
PROPELLER SHAFT INTERMEDIATE BEARING
| Number | Designation | Model 207 | Model 212 | ||
|---|---|---|---|---|---|
| BA41.40-P-1001-01F | Bolt, propeller shaft center support bearing to frame floor assembly | Self-tapping screw | Nm | 20 | 20 |
PROPELLER SHAFT INTERMEDIATE BEARING
| Number | Designation | Model 218 | Model 231 | ||
|---|---|---|---|---|---|
| BA41.40-P-1001-01F | Bolt, propeller shaft center support bearing to frame floor assembly | Self-tapping screw | Nm | 20 | 28 |
Correct inclination angle at the center (∠ 2)
To correct the inclination angle, install shop-made shims at the propeller shaft intermediate bearing. A 1 mm thick shim changes the inclination angle by approx. 0.17°. When using shims > 2 mm thick, increase the bolt length by 5 mm. If a shim > 5 mm thick is required, check the front engine mount and rear engine mount for signs of settling or wear and replace if necessary.
- Detach underfloor paneling on left and right in area of heat shields.
- Support propeller shaft.
- Remove crossmember.
- Detach and remove heat shields.

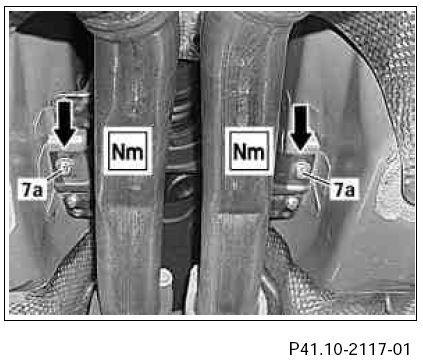

- Remove bolts (7a) from propeller shaft intermediate bearing.
- Insert shop-made shims between frame floor assembly and propeller shaft center support bearing (arrows).
The dimensions for the shims must be taken at the propeller shaft intermediate bearing, see following picture.
- Tighten screws/bolts (7a) of propeller shaft intermediate bearing.
- Install heat shields.
- Attach crossmember.
- Remove transmission jack and transmission plate.
- Remove underfloor paneling on left and right.
Example:
Shims (c) between frame floor assembly and propeller shaft intermediate bearing. Material: steel or aluminum.
