Correcting rear articulation angle at rear axle center assembly - AR41.10-P-0086-05CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 172, 204, 207, 212, 218, 231
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B |
REAR AXLE CARRIER
| Number | Designation | Model 172 | Model 204 | |
|---|---|---|---|---|
| BA35.10-P-1005-01N | Rear axle differential to front adapter | Nm | - | 65 |
REAR AXLE CARRIER
| Number | Designation | Model 207 | Model 212 | |
|---|---|---|---|---|
| BA35.10-P-1005-01N | Rear axle differential to front adapter | Nm | 65 | 65 |
REAR AXLE CARRIER
| Number | Designation | Model 218 | Model 231 | |
|---|---|---|---|---|
| BA35.10-P-1005-01N | Rear axle differential to front adapter | Nm | 65 | 65 |
REAR AXLE CARRIER
| Number | Designation | Model 172 | Model 204 | |
|---|---|---|---|---|
| BA35.10-P-1009-01N | Bolt, rear axle differential to front cross member | Nm | 43 | - |
REAR AXLE CARRIER
| Number | Designation | Model 207 | Model 212 | |
|---|---|---|---|---|
| BA35.10-P-1009-01N | Bolt, rear axle differential to front cross member | Nm | - | - |
REAR AXLE CARRIER
| Number | Designation | Model 218 | Model 231 | |
|---|---|---|---|---|
| BA35.10-P-1009-01N | Bolt, rear axle differential to front cross member | Nm | - | - |
Correct rear inclination angle (∠ 3)

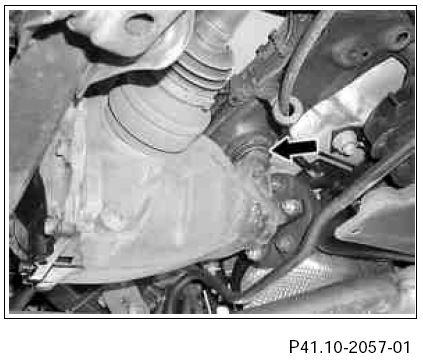

To correct the articulation angle at the rear axle differential, appropriate shims (arrow) are available as replacement parts.
The spacer washers are available with a thickness of 1 mm to 4 mm. Each 1 mm of eccentricity changes the articulation angle by approx. 0.25° to 0.33°.
- Support rear axle differential.
- Unscrew bolt connecting rear axle differential to front differential mount.
- Depending on the correction, insert the appropriate shim together with the bolt.
- Tighten bolt.
Observe specified tightening torque.
- Remove transmission jack and transmission platform.
