Remove/install main components of transmission - AR27.50-P-0610EWM
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 725.0
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Remove transmission with torque converter | TRANSMISSION 725.0 in MODEL 212 with ENGINE 642 | |
| AR27.10-P-0500EWM | |||
Otherwise, even the smallest foreign particle in the hydraulic components of the transmission can lead to malfunctions or a total failure of the transmission. |
|||
| 2 | Fasten transmission on assembly stand | AR27.10-P-0600-01EWM | |
| Boom crane Passenger car engine assembly stand |
|||
| Figure | |||
| Figure | |||

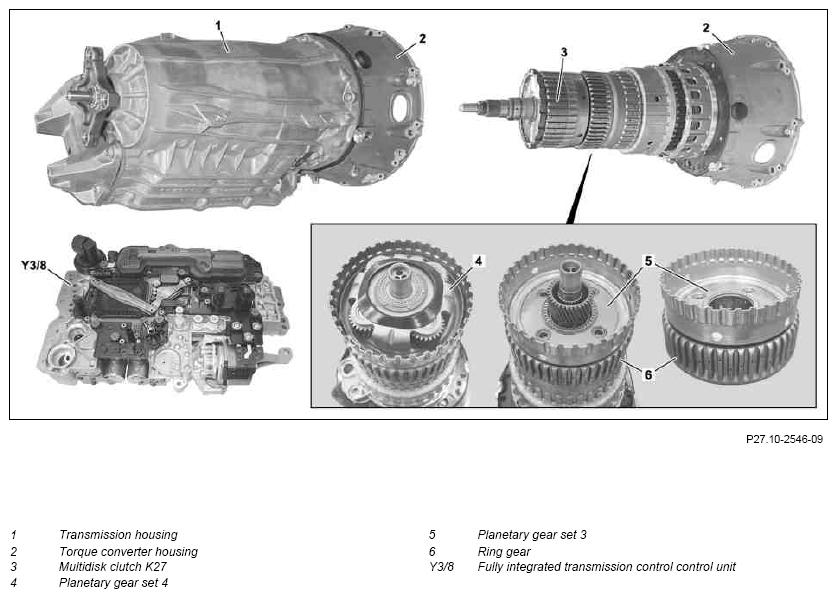

| 3 | Remove fully integrated transmission control controller unit (Y3/8) | AR27.19-P-0200EWM | |
| 4 | Detach transmission housing (1) from torque converter housing (2) | AR27.50-P-0601EWM | |
| 5 | Remove multidisk clutch K27 (3) | AR27.50-P-0619EWM | |
| 6 | Remove planetary gear set 4 (4) and planetary gear set 3 (5) with annulus gear (6) | AR27.50-P-0623EWM | |

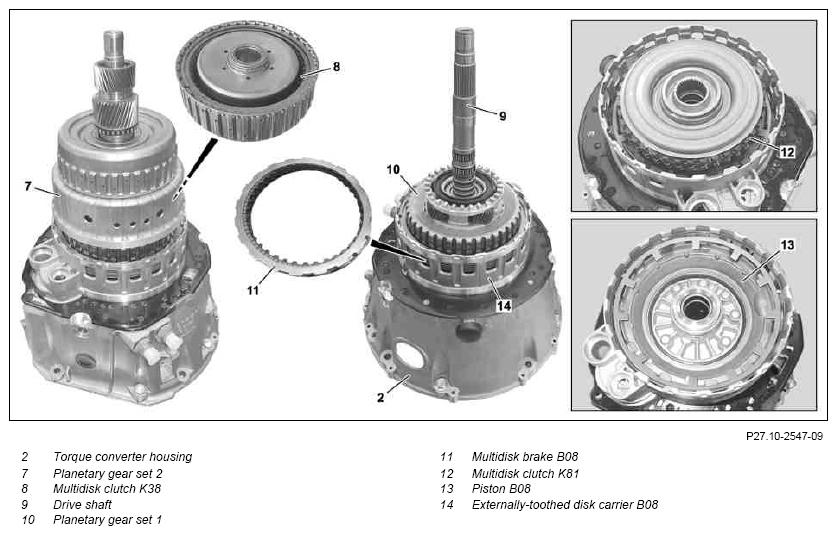

| 7 | Remove planetary gear set 2 (7) and multidisk clutch K38 (8) with annulus gear | AR27.50-P-0624EWM | |
| 8 | Remove drive shaft (9), planetary gear set 1 (10) with multidisk brake B08 (11) and multidisk clutch K81 (12) | AR27.50-P-0625EWM | |
| 9 | Remove piston B08 (13) | AR27.50-P-0618EWM | |
| 10 | Remove external plate carrier B08 (14) from torque converter housing (2) | AR27.50-P-0617EWM | |
| 11 | Install in the reverse order |
