Remove/install planetary gear set 1 with multidisk clutch K81 and multidisk brake B08 - AR27.50-P-0625EWM

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 725.0

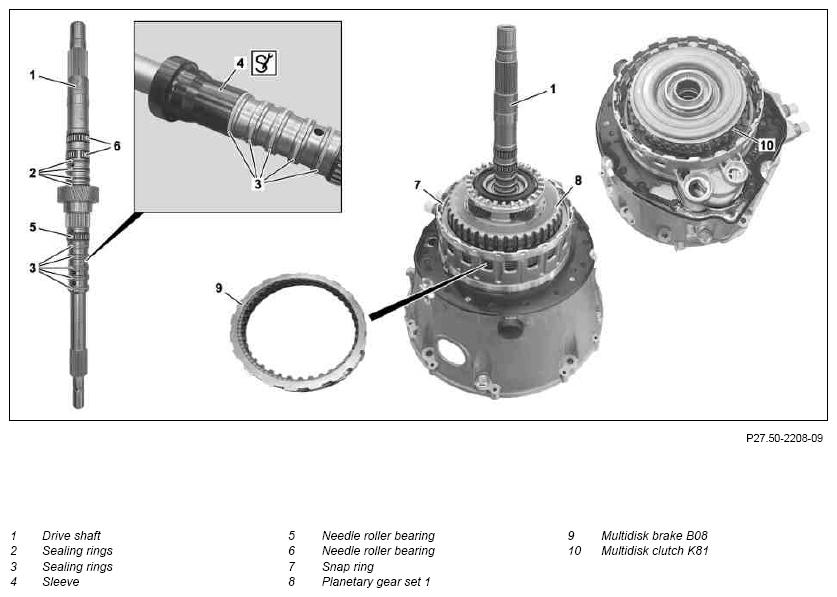

Fig 1: Planetary Gear Set 1 With Multidisk Clutch K81 And Multidisk Brake B08 Components

Courtesy of MERCEDES-BENZ USA

	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove/install
1	Remove planetary gear set 2 and multidisk clutch K38 with annulus gear		AR27.50-P-0624EWM
2	Remove drive shaft (1)
3	Replace sealing rings (2, 3)	Do not overstretch the new sealing rings (2, 3). Otherwise, the sealing rings (2, 3) may be damaged. To do so, slide sealing rings (2, 3) onto sleeve (4), mount sleeve (4) onto drive shaft (1) and carefully remove sealing rings (2, 3) on drive shaft (1).
3	Replace sealing rings (2, 3)	Set of sleeves	Figure
4	Check needle roller bearing (5, 6) for damage, replace, if necessary
5	Remove retaining ring (7)
6	Remove planetary gear set 1 (8) with multidisk brake B08 (9) and check	Disassemble/assemble planetary gear set 1 (8) To do so, remove multidisk brake B08 (9) from planetary gear set 1 (8).	AR27.50-P-0623-01EWM
7	Remove multidisk clutch K81 (10) and check		AR27.50-P-0622EWM
8	Install in the reverse order
9	Measure and adjust clearance		AR27.51-P-7229EWM

Fig 2: Identifying Set Of Sleeves (725 589 01 14 00)

Courtesy of MERCEDES-BENZ USA
