Remove/install planetary gear set 2 and multidisk clutch K38 with ring gear - AR27.50-P-0624EWM
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 725.0
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Remove multidisk clutch K27 with output shaft and park pawl gear | AR27.50-P-0614EWM | |
| 2 | Remove planetary gear set 4 and planetary gear set 3 with annulus gear | AR27.50-P-0623EWM | |
| 3 | Remove planetary gear set 2 (1) and sun gear (2) with multidisk clutch K38 (3) and disassemble | Disassemble/assemble planetary gear set 2 | AR27.50-P-0623-02EWM |
| Disassemble/assemble multidisk clutch K38 | AR27.50-P-0624-01EWM | ||

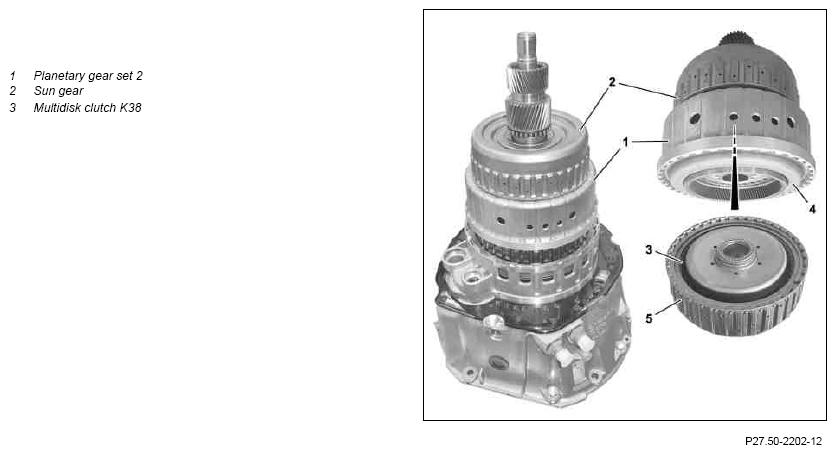

| Figure | |||
| 4 | Install in the reverse order | ||
| 5 | Measure and adjust clearance | AR27.51-P-7229EWM |
