Remove/install piston B08 - AR27.50-P-0618EWM

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 725.0

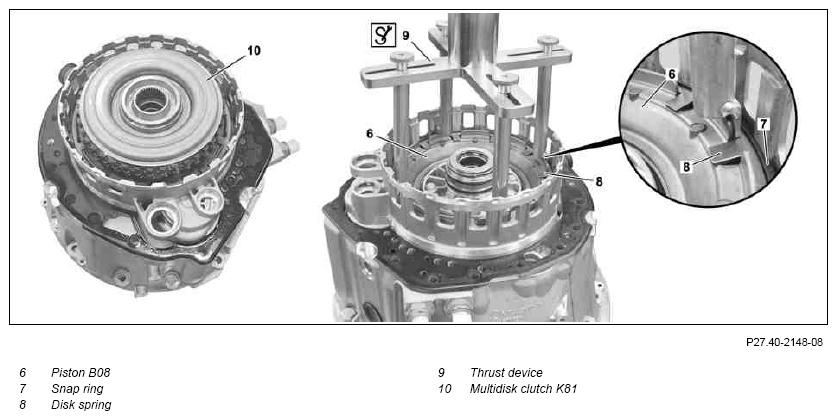

Fig 1: Piston B08 Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 2: Piston B08 Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove drive shaft (1), planetary gear set 1 (2) with multidisk brake B08 (3)		AR27.50-P-0625EWM
2	Remove multidisk clutch K81 (10)		AR27.50-P-0622EWM
3	Detach torque converter housing (4) from support fixture (5)	Support fixture	Figure
4	Mount pressure device (9) onto piston (B08) (6) and push disk spring (8) down far enough until the retaining ring (7) is exposed	Check for correct position of pressure device (9). Workshop press (stationary)
		Pressing tool	Fig 5
		Set of drifts	Fig 3
5	Remove retaining ring (7)	Make sure that it is installed at the correct position.
6	Remove disk spring (8)	Make sure that it is installed at the correct position.
7	Remove piston B08 (6)	Make sure that it is installed at the correct position.
8	Install in the reverse order
