Detach/attach external plate carrier B08 on torque converter housing - AR27.50-P-0617EWM

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 725.0

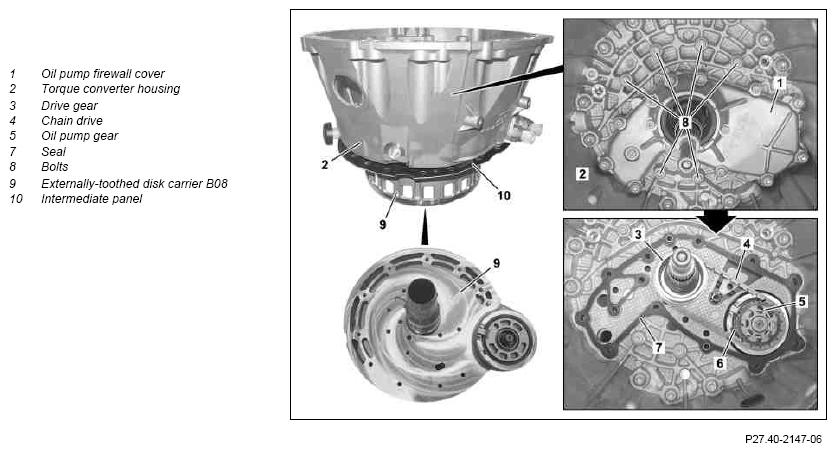

Fig 1: External Plate Carrier B08 On Torque Converter Housing Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

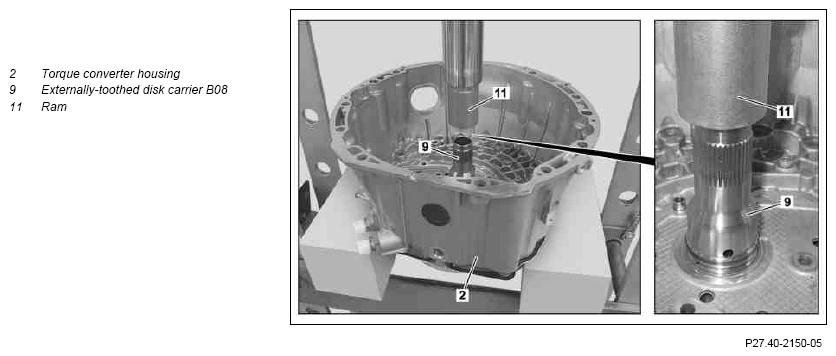

Fig 2: External Plate Carrier B08 On Torque Converter Housing Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove planetary gear set 1 with multidisk clutch K81 and multidisk brake B08		AR27.50-P-0625EWM
2	Remove drive gear (3), chain drive (4) and oil pump gear (5)	Remove/install oil pump	AR27.10-P-0400EWM
3	Remove seal (7)	Check seal (7) and replace if necessary.
4	Loosen screws/bolts (8)	Do not unscrew bolts (8) completely. Otherwise, the external plate carrier B08 (9) will drop down when pressed out and it may be damaged.
4	Loosen screws/bolts (8)	Screw/bolt, torque converter housing to external plate carrier	*BA27.10-P-1003-04H
5	Press external plate carrier B08 (9) out of torque converter housing (2) and take off	Only press out external plate carrier B08 (9) far enough until it can be removed from below. Otherwise, the external plate carrier B08 (9) and the bolts (8) may be damaged when pressed out. Position two bolts (8) as a guide before pressing in the external plate carrier B08 (9). Make sure that the contact surface of the ram (11) is flush fitted. Workshop press (stationary)
6	Remove intermediate panel (10)	Check intermediate panel (10) for damage, replace, if necessary.
7	Install in the reverse order

COMPLETE AUTOMATIC TRANSMISSION

Number	Designation			TRANSMISSION 725.0
BA27.10-P-1003-04H	Screw/bolt, torque converter housing to external plate carrier	M6	Nm	10
