Fasten transmission on assembly stand - AR27.10-P-0600-01EWM

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 725.0

000 588 00 31 00 Assembly stand

WS01.00-N-3028B

Fig 1: Identifying Lifting Device (724 589 02 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Support Fixture (725 589 00 40 00)

Courtesy of MERCEDES-BENZ USA

Mount support fixture (2) on engine assembly stand (3) and tighten bolts (4).

Fig 3: Mounting Support Fixture On Engine Assembly Stand
Courtesy of MERCEDES-BENZ USA
Mount lifting device (9) on transmission housing.
Ensure that lifting device (9) in the cutouts on transmission housing are seated correctly (arrow). If necessary, check by surging at the lifting device (9).
Attach transmission to boom crane with lifting device (9).

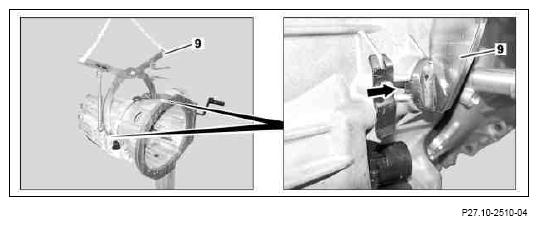

Fig 4: Attaching Transmission To Boom Crane With Lifting Device
Courtesy of MERCEDES-BENZ USA
Position transmission onto support fixture (2) so that the bores of the transmission and the support fixture (2) line up with each other.
Fit bolts (12).
Tighten bolts (12).
Detach lifting device (9) from transmission.

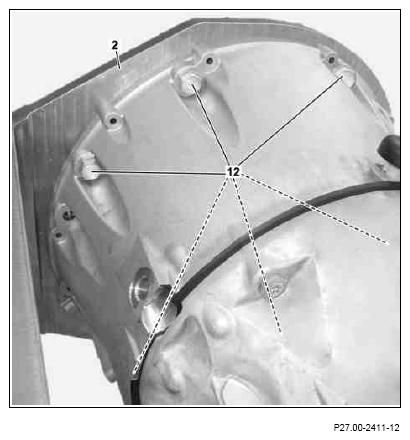

Fig 5: Support Fixture And Bolts
Courtesy of MERCEDES-BENZ USA
