Disassemble/assemble multidisk clutch K27 - AR27.50-P-0619EWM
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 725.0
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Disassemble/assemble | |||

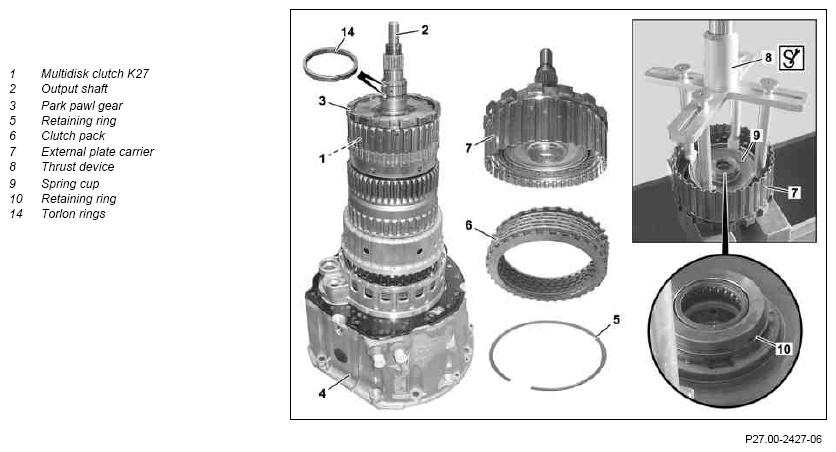

| 1 | Remove retaining ring (5) from multidisk clutch K27 (1) | ||
| 2 | Remove clutch pack (6) | ||
| 3 | Mount pressure device (8) onto external plate carrier (7) and push down far enough on spring cup (9) enough until the retaining ring (10) is exposed. | Workshop press (stationary) | |
| Figure | |||
| Figure | |||
| 4 | Remove retaining ring (10) | Figure | |
| 5 | Apply some compressed air through hole to output shaft (2) and remove piston (12) | ||

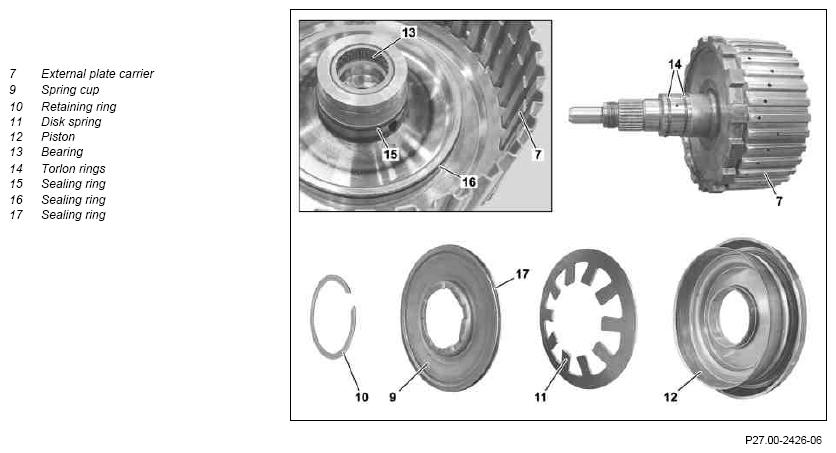

| 6 | Remove spring cup (9) | ||
| 7 | Remove disk spring (11) | ||
| 8 | Replace sealing rings (15, 16, 17) | Assembly: To do so, apply light coating of grease to sealing rings (15, 16, 17). | |
| Check | |||
| 9 | Check bearing (13) | If damage is found on bearing (13), ↓ Replace external plate carrier (7) and needle roller bearing in transmission housing. |
|
| Disassemble/assemble transmission housing | AR27.40-P-0510EWM | ||
| 10 | Check park pawl gear (3) | If damage is found on the park pawl gear (3), ↓ Replace external plate carrier (7) and needle roller bearing in transmission housing. |
|
| Disassemble/assemble transmission housing | AR27.40-P-0510EWM | ||
| 11 | Replace Torlon rings (14) | Do not bend or press Torlon rings (14). Otherwise, the Torlon rings (14) may be damaged. |
|
| Fig 3 | |||
| 12 | Install in the reverse order | ||
| 13 | Measure and adjust clearance | AR27.51-P-7229EWM |
