Remove/install panoramic roof frame - AR77.21-P-0800SX

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.3, 207.3, 212.0/1/2, 221.1 with CODE (413) Panoramic glass roof with top sliding roof

Shown on model 221

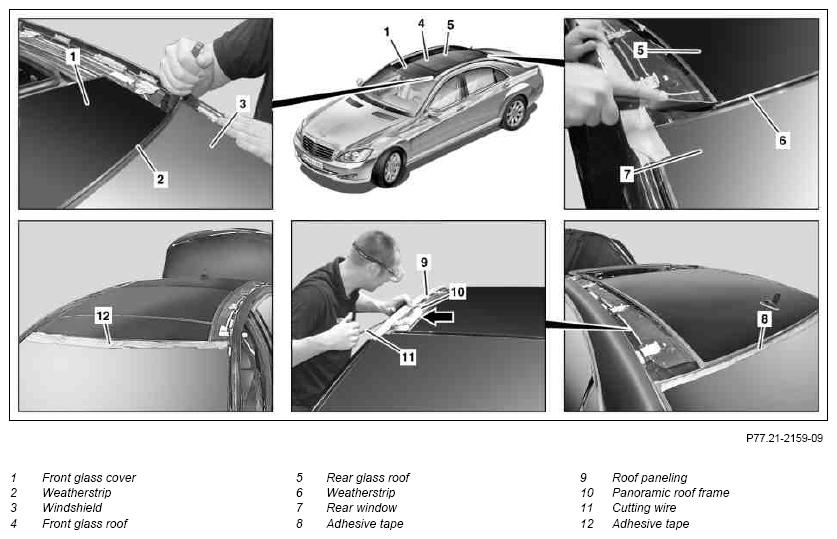

Fig 1: Panoramic Roof Frame Remove/Install Components - Shown On Model 221
G09977489Courtesy of MERCEDES-BENZ USA
REMOVING Removing
DANGER Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof Keep body parts and limbs well clear of moving parts. AS00.00-Z-0011-01A
NOTES Notes on removal/installation of windows   AH67.10-P-1000-02RT
1 Determine height between front glass cover (1) and windshield (3) and note IMPORTANT Dimensions are required for installing panoramic roof frame (10).
2.1 Determine height and gap dimension between rear glass roof (5) and rear window (7) and note Model 204.3, 207.3, 212.0
IMPORTANT The dimension is required for installing the panoramic roof frame (10).
SPECIAL TOOL Feeler gauge Fig 2
2.2 Determine height and gap dimension between rear glass roof (5) and rear glass cover and note Model 212.1
IMPORTANT The dimension is required for installing the panoramic roof frame (10).
SPECIAL TOOL Feeler gauge Fig 2
2.3 Determine height and gap dimension between rear glass roof (5) and rear roof paneling (9) and note Model 212.2
IMPORTANT The dimension is required for installing the panoramic roof frame (10).
SPECIAL TOOL Feeler gauge Fig 2
3 Open crank window in driver door NOTES Leave crank window in driver door open for duration of the glue hardening time (waiting time) to prevent the panoramic roof frame (10) from being pressed outwards by the air pressure when the doors are closed.
4 Prepare adhesive cartridge IMPORTANT Heat glue cartridge for at least 20 minutes.
Cartridge heater
Repair kit, installing window 500662 01/03/05/07/09/11 *BR00.45-Z-1031-02A
5.1 Remove drip rails on panoramic sliding sunroof Model 204.3, 207.3, 212 AR88.80-P-4000EW
5.2 Remove carrier with seal Model 221 AR77.21-P-0620SX
6.1 Remove multifunction antenna or multifunction antenna mockup Model 204.3, 207.3 AR82.70-P-8951EC
Model 212.0 up to model year 2011 AR82.70-P-8951EW
6.2 Remove multifunction antenna Model 212.0 as of model year 2011
with code (228) Stationary heater
with code (359) TELE AID emergency call system
with code (386) Comfort telephony
with code (511) Audio 50 APS incl. DVD changer,
with code (512) COMAND APS incl. DVD changer,
with code (525) Radio MB Audio 50 APS, With code (527) COMAND APS with single DVD disk drive (with navigation).
with code (528) HIGH Class USA,
with code (536) SIRIUS-satellite radio		 AR82.70-P-8951EL
6.3 Remove cover for antenna and antenna mock-up Model 212.0 as of model year 2011 AR82.70-P-8952EW
6.4 Remove telephone and GPS roof antenna Model 221 AR82.70-P-8951SX
7 Remove roller sun blind of panoramic sliding sunroof Model 204.3, 207.3 AR77.21-P-0215EC
Model 212 AR77.21-P-0215EW
Model 221 front AR77.21-P-0200SX
Model 221 rear AR77.21-P-0201SX
8 Cut off weatherstrip (2) on front glass cover (1) with suitable knife IMPORTANT Cut off weatherstrip (2) only at front.
9 Fold top lip down against windshield (3) and arrest with suitable adhesive tape (12)
10 Cut weatherstrip (6) off of rear glass roof (5) with suitable knife IMPORTANT Cut off weatherstrip (6) only at rear.
11 Fold lip over at top of rear window (7) and fasten with suitable adhesive tape (8) Model 204.3, 207.3, 212.0, 221
12 Mask roof paneling (9) with adhesive tape on both sides.
13 Mask rear roof paneling to weatherstrip (6) with suitable adhesive tape Model 212.2
NOTES This prevents damaging the vehicle paintwork in the repair area when cutting out the panoramic roof frame (10).
14 Install cutting wire (11) with pull-in device through glue bead on panoramic roof frame (10). IMPORTANT Install pull-in device in area of rear corner (arrow) of panoramic roof frame (10).
"Veritrac" window removal tool
DANGER Risk of injury  due to tear or warming up of cutting wire and through glass splinters when cutting out glued windows Wear protective gloves and safety glasses. AS67.00-Z-0004-01A
15 Cut out panoramic roof frame (10) with cutting wire (11) and remove from vehicle IMPORTANT Aid of helper required.
Panoramic roof frame (10) must be replaced.
Suction lifting device
"Veritrac" window removal tool
INSTALLING Install
16 Prepare panoramic roof frame (10) for installation Suction lifting device AR77.21-P-0800-02SX
Repair kit, installing window 500662 01/03/05/07/09/11 *BR00.45-Z-1031-02A
17 Prepare body flange for panoramic roof frame (10) for installation Wet and dry vacuum cleaner AR77.21-P-0800-05SX
Repair kit, installing window 500662 01/03/05/07/09/11 *BR00.45-Z-1031-02A
18 Apply glue for panoramic roof frame (10) "Pressofix" cartridge gun AR77.21-P-0800-03SX
Repair kit, installing window 500662 01/03/05/07/09/11 *BR00.45-Z-1031-02A
19 Install panoramic roof frame (10) NOTES Do not move vehicle before the glue is sufficiently dry (approx. 1 h), otherwise the stability of the glue is not ensured.
IMPORTANT Aid of helper required.
Remove adhesive tape (8, 12) after installing and before aligning panoramic roof frame (10). Observe dimensions noted when aligning.
On model 207 and 212 the panoramic roof frame (10) is only aligned as per the noted dimensions.
It is possible to carefully install the detachable parts after the adhesive has cured sufficiently (approx. 30 min.).		 *BE77.21-P-1001-01D
Gap dimensions for model 221
Cup suction tool		 AR77.21-P-0800-04SX
20 Install bezel of rear panoramic sliding sunroof Model 204.3, 207.3, 212.0 AR77.21-P-0751EW
21 Remove adhesive tape from roof paneling (9)
22 Install roller sun blind of panoramic sliding roof Model 204.3, 207.3 AR77.21-P-0215EC
Model 212 AR77.21-P-0215EW
Model 221 front AR77.21-P-0200SX
Model 221 rear AR77.21-P-0201SX
23.1 Install drip rails on panoramic sliding sunroof Model 207.3, 212 AR88.80-P-4000EW
23.2 Install carrier with seal Model 221 AR77.21-P-0620SX
24.1 Install multifunction antenna or multifunction antenna mockup Model 204.3, 207.3 AR82.70-P-8951EC
Model 212.0 up to model year 2011 AR82.70-P-8951EW
24.2 Install multi-function antenna Model 212.0 as of model year 2011
with code (228) Stationary heater
with code (359) TELE AID emergency call system
with code (386) Comfort telephony
with code (511) Audio 50 APS incl. DVD changer,
with code (512) COMAND APS incl. DVD changer,
with code (525) Radio MB Audio 50 APS, With code (527) COMAND APS with single DVD disk drive (with navigation).
with code (528) HIGH Class USA,
with code (536) SIRIUS-satellite radio		 AR82.70-P-8951EL
24.3 Install cover for antenna and antenna mock-up Model 212.0 as of model year 2011 AR82.70-P-8952EW
24.4 Install roof antenna for telephone and GPS [global positioning system] Model 221 AR82.70-P-8951SX
TEST AND ADJUSTMENT VALUES OF PANORAMIC ROOF

Number Designation Model 221
BE77.21-P-1001-01D Gap dimensions between front glass cover and rear glass roof mm 3.0
between front glass roof and rear glass roof mm 3.0
between rear glass roof and rear window mm 7, 9
Fig 2: Identifying Feeler Gauge (129 589 03 21 00)
G09977490Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1031-02A Repair kit, installing window 500662 01/03/05/07/09/11 A 973 670 00 93
