Remove, install roller sun blind on panoramic sliding roof - AR77.21-P-0215EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 166, 212 with CODE 413 (Automatic panoramic sliding sunroof)

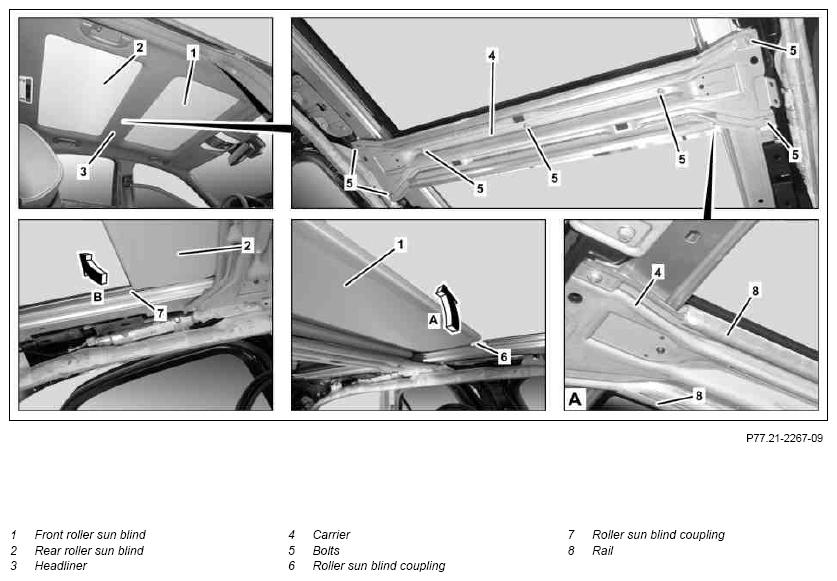

Fig 1: Roller Sun Blind On Panoramic Sliding Roof Remove/Install Components (1 Of 2)
G09977469Courtesy of MERCEDES-BENZ USA
Fig 2: Roller Sun Blind On Panoramic Sliding Roof Remove/Install Components (2 Of 2)
G09977470DANGERREMOVINGINSTALLINGIMPORTANTNOTESIMPORTANTIMPORTANTIMPORTANTIMPORTANTIMPORTANTIMPORTANTCourtesy of MERCEDES-BENZ USA
DANGER Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. No parts of the body or limbs should be within the operating area when the components are moving. AS00.00-Z-0011-01A
REMOVINGINSTALLING Remove/install
1 Open front roller sun blind (1) and rear roller sun blind (2)
2.1 Loosen headliner (3) MODEL 212.0/1
with CODE 413 (Automatic panoramic sliding sunroof)
  AR68.30-P-4300EW
IMPORTANT Lay headliner (3) down onto front seats with lines connected.
2.2 Remove headliner (3) MODEL 166
with CODE 413 (Automatic panoramic sliding sunroof)
MODEL 166
with CODE 413 (Automatic panoramic sliding sunroof)
with CODE Z05 (B5 armoring on special protection version)		 AR68.30-P-4300GQS
MODEL 166
with CODE 413 (Automatic panoramic sliding sunroof)
without CODE Z05 (B5 armoring on special protection version)		 AR68.30-P-4300GQ
3 Unhook rail (8) from front roller sun blind (1) out of roller sun blind coupling (6) by turning in direction of arrow (arrow A) on both sides. Then hook rail (8) into carrier (4) as shown in Fig 1
4 Unhook rail (8) from front roller sun blind (2) out of roller sun blind coupling (7) by turning in direction of arrow (arrow B) on both sides. Then hook rail (8) into carrier (4) as shown in Fig 1
5 Unscrew bolts (5) and remove carrier (4) with front roller sun blind (1) and rear roller sun blind (2) NOTES MODEL 212.0/1
with CODE 413 (Automatic panoramic sliding sunroof)
Carefully remove carrier (4).
Headliner (3) can be damaged.
IMPORTANT MODEL 212
with CODE 413 (Automatic panoramic sliding sunroof)
Front roller sun blind (1) and rear roller sun blind (2) are delivered completely with carrier (4) as replacement part.
IMPORTANT MODEL 212.0/1
with CODE 413 (Automatic panoramic sliding sunroof)
Helper required.
6 Remove rail (8) from carrier (4) and turn front roller sun blind (1) until retainer (10) can be installed through holes in roller sun blind shaft (9) and bracket (11) MODEL 166
with CODE 413 (Automatic panoramic sliding sunroof)
with CODE Z05 (B5 armoring on special protection version)
MODEL 166
with CODE 413 (Automatic panoramic sliding sunroof)
without CODE Z05 (B5 armoring on special protection version)
IMPORTANT Insert retainer (10) for front roller sun blind (1) into right side.
7 Install retainer (10) through holes in front roller (1) sun blind shaft (9) and bracket (11) MODEL 166
with CODE 413 (Automatic panoramic sliding sunroof)
IMPORTANT Use steel wire or needle with a diameter of approx. 1.2 mm as retainer (10). The retainer (10) ensure that the tension for the front roller sun blind (1) is maintained for approx. 16 to 18 rotations. This spring tension can be restored when lost.
8 Remove rail (8) from carrier (4) and turn rear roller sun blind (2) until retainer (10) can be installed through holes in roller sun blind shaft (9) and bracket (11) MODEL 166
with CODE 413 (Automatic panoramic sliding sunroof)
IMPORTANT Insert retainer (10) on rear roller sun blind (2) into left side.
9 Install retainer (10) through holes in rear roller (2) sun blind shaft (9) and bracket (11) MODEL 166
with CODE 413 (Automatic panoramic sliding sunroof)
IMPORTANT Use steel wire or needle with a diameter of approx. 1.2 mm as retainer (10). The retainer (10) ensures that the tension for the rear roller sun blind (2) is maintained for approx. 16 to 18 rotations. This spring tension can be restored when lost.
10 Unscrew bolt (12) on right from carrier (4) and remove front roller sun blind (1) MODEL 166
with CODE 413 (Automatic panoramic sliding sunroof)
11 Unscrew bolt (12) on left from carrier (4) and remove rear roller sun blind (2) MODEL 166
with CODE 413 (Automatic panoramic sliding sunroof)
12 Install in the reverse order
