Retrofit media interface - AN82.60-P-0016EWA

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0##/2## 1# as of 4/13/13 as of model year 2014 with CODE 510 (Audio 20 with CD changer) without CODE 494 (US version) without CODE 498 (Japanese version)

MODEL 212.0##/2## 1# as of 4/13/13 as of model year 2014 with CODE 512 (COMAND APS) without CODE 494 (US version) without CODE 498 (Japanese version)

MODEL 212.0##/2## 1# as of 4/13/13 as of model year 2014 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 494 (US version) without CODE 498 (Japanese version)

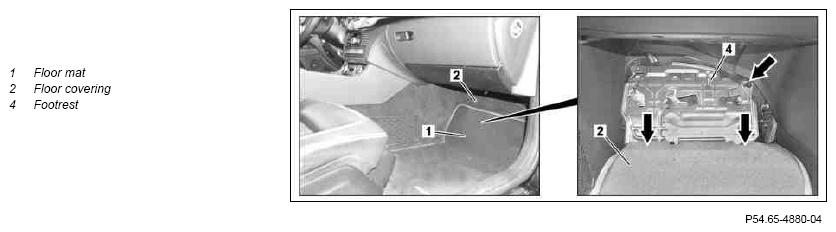

Fig 1: Locating Floor Mat Floor Covering And Footrest
G09977520Courtesy of MERCEDES-BENZ USA

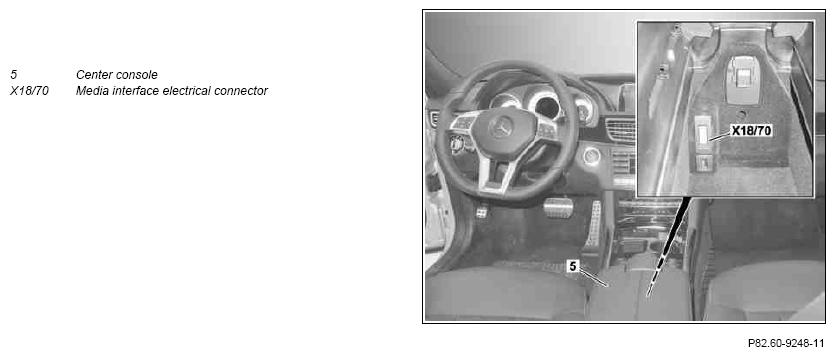

Fig 2: Center Console And Media Interface Electrical Connector
G09977521NOTESREMOVINGREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRNOTESREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRIMPORTANTREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRIMPORTANTINSTALLINGNOTESSPECIAL TOOLSPECIAL TOOLSPECIAL TOOLREFER TO SELF-DIAGNOSTIC SYSTEMSINSTALLATION IMPORTANTIMPORTANTIMPORTANTREFER TO TESTING & REPAIRCourtesy of MERCEDES-BENZ USA
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
REMOVING Remove
1 Remove glove box
REFER TO TESTING & REPAIR     AR68.10-P-1200EW
2 Remove radio
REFER TO TESTING & REPAIR     AR82.60-P-7502EW
3 Remove floor mat (1) from front passenger footwell
4 Fold back floor covering (2) in front passenger footwell
5 Unscrew nuts (arrows), remove footrest (4), fold toward rear and set down on floor covering (2) with electrical lines connected NOTES Handle footrest (4) carefully.
Otherwise damage to the electrical lines may occur.

6 Remove right front door sill and right rear door sill
REFER TO TESTING & REPAIR     AR68.30-P-4100EW
7 Remove A-pillar paneling at bottom right
8 Remove right lower B-pillar paneling
9 Remove center console (5)
REFER TO TESTING & REPAIR     AR68.20-P-2000EW
10 Remove dummy cover for Media Interface electrical connector cutout (X18/70) in center console (5) IMPORTANT Dummy cover is no longer required.
11.1 Remove right side bolster from rear seat backrest Model 212.2
REFER TO TESTING & REPAIR     AR91.12-P-1720ES
11.2 Remove right side bolster from rear seat backrest MODEL 212.0 with CODE 287 (Through-loading feature)
REFER TO TESTING & REPAIR     AR91.12-P-1710CW
11.3 Remove rear seat backrest MODEL 212.0 without CODE 287 (Through-loading feature)
REFER TO TESTING & REPAIR   MODEL 212.0 without CODE 224 (Design individual rear seat system) AR91.12-P-1620CW
REFER TO TESTING & REPAIR   MODEL 212.0 with CODE 224 (Design individual rear seat system) AR91.12-P-1620EW
12.1 Remove right side paneling from trunk MODEL 212.0
REFER TO TESTING & REPAIR     AR68.30-P-4600EW
12.2 Remove right side trim in load compartment Model 212.2
REFER TO TESTING & REPAIR     AR68.30-P-1180ES
13 Remove rear SAM control module with fuse and relay module
REFER TO TESTING & REPAIR     AR54.21-P-1258EW
    IMPORTANT Check in the EPC in design group 99 whether the rear SAM control unit with fuse and relay module installed in accordance with the vehicle equipment can be used for retrofitting the Media Interface. If necessary, the rear SAM control unit with fuse and relay module is to be removed and replaced with one compatible with the Media Interface. If the rear SAM control unit with fuse and relay module does not need to be replaced, simply detach it and place to one side with electrical lines connected.
INSTALLING Install
14 Install optical fiber for Media Oriented System Transport (MOST) Vehicles except CODE 537 (Digital radio) except CODE 810 (Sound system) except CODE 863 (Digital/analog TV tuner) AN82.61-P-0001-06ELX
NOTES Notes on avoiding damage to optical fibers during repair work   AH82.60-P-0001-05AK
    Vehicles with CODE 537 (Digital radio) with CODE 810 (Sound system) with CODE 863 (Digital/analog TV tuner) AN82.61-P-0001-06ELY
15 Prepare media interface power supply wiring harness   AN82.60-P-0016-04EWA
    SPECIAL TOOL Wiring harness repair kit Figure
16 Retrofit media interface power supply wiring harness MODEL 212.0 AN82.60-P-0016-03EWB
    Model 212.2 AN82.60-P-0016-03EWA
    SPECIAL TOOL Wiring harness repair kit Figure
    SPECIAL TOOL New passenger car wiring harness repair kit Figure
17 Install wiring harness with Media Interface electrical connector (X18/70) in center console (5)   AN82.60-P-0016-02EWB
18 Retrofit media interface control unit   AN82.60-P-0016-01EW
19 Install remaining parts
20 Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04A
21 Enter special equipment in online vehicle data card via vehicle documentation system (VeDoc) INSTALLATION IMPORTANT • Code (518) Media interface
22 Document retrofitted equipment through VeDoc IMPORTANT Attach note "Media Interface retrofitted as per AN82.60-P-0016EWA " under field organization texts to design group 82.
23 Perform variant coding with XENTRY using the software calibration number (SCN) IMPORTANT Variant coding with XENTRY using the software calibration number (SCN) must be carried out for the following control unit: • Media interface control unit (N125/1)
24 Disconnect diagnostic system
REFER TO TESTING & REPAIR     AD00.00-P-2000-04A
25 Perform function test with an external audio source
Fig 3: Identifying Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)
G09977522Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Wiring Harness Repair Kit (220 589 02 99 00)
G09977523Courtesy of MERCEDES-BENZ USA
PARTS ORDERING NOTE

Part no. Designation Quantity
KG 99 (see EPC) Media interface package contents 1
trade-sublich Brown line, 0.75 mm2 500 mm
trade-sublich Round cable lug, inside diameter 6 mm 1
