Retrofit comfort telephony - AN82.70-P-0008EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0## (except 212.074/077/092/095/098) 1# up to 5/31/12 with CODE 510 (Audio 20 with CD changer) without CODE 228 (Auxiliary heater) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 803 (Model year 2013) without CODE 830 (Vehicles for China, additional parts)

MODEL 212.0## (except 212.074/077/092/095/098) 1# up to 5/31/12 with CODE 511 (Audio 50 APS with DVD changer) without CODE 228 (Auxiliary heater) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 830 (Vehicles for China, additional parts)

MODEL 212.0## (except 212.074/077/092/095/098) 1# up to 5/31/12 with CODE 523 (MB Audio 20 radio) without CODE 228 (Auxiliary heater) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 803 (Model year 2013) without CODE 830 (Vehicles for China, additional parts)

MODEL 212.0## (except 212.074/077/092/095/098) 1# up to 5/31/12 with CODE 525 (MB Audio 50 APS radio) without CODE 228 (Auxiliary heater) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 830 (Vehicles for China, additional parts)

MODEL 212.0## (except 212.074/077/092/095/098) 1# up to 6/30/11 with CODE 512 (COMAND APS with DVD changer) without CODE 088 (Control code NTG 4.5) without CODE 228 (Auxiliary heater) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 830 (Vehicles for China, additional parts)

MODEL 212.0## (except 212.074/077/092/095/098) 1# up to 6/30/11 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 088 (Control code NTG 4.5) without CODE 228 (Auxiliary heater) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 830 (Vehicles for China, additional parts)

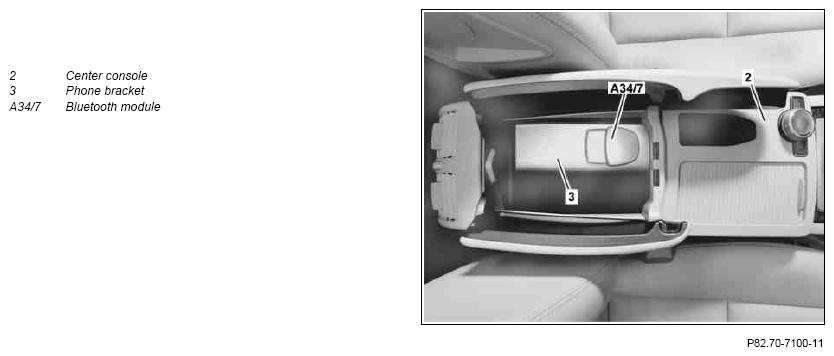

Fig 1: Center Console, Phone Bracket And Bluetooth Module
G09977527Courtesy of MERCEDES-BENZ USA
REMOVING Remove
1 Remove left door sill moldings
REFER TO TESTING & REPAIR     AR68.30-P-4100EW
2 Remove A-pillar paneling at bottom left
3 Remove cover below left of instrument panel
4 Remove center console (2)
REFER TO TESTING & REPAIR     AR68.20-P-2000EW
5 Remove accelerator pedal
REFER TO TESTING & REPAIR     AR30.12-P-1321EW
6 Remove screws/bolts at the rear of the driver seat
REFER TO TESTING & REPAIR     AR91.10-P-1000CW
7 Remove screws/bolts at the front of the driver seat
REFER TO TESTING & REPAIR     AR91.10-P-1000CW
8 Release and remove covers at the front of the driver seat guide rails
9 Remove left front floor covering IMPORTANT Observe routing of accelerator pedal wiring harness.
10 Fix driver seat in place using a screw/bolt at the front
11 Remove radio, radio with auto pilot system or COMAND controller unit
REFER TO TESTING & REPAIR     AR82.60-P-7502EW
12.1 Remove rear SAM control unit with fuse and relay module and place to one side with connected electrical connectors MODEL 212.0## (except 212.074/077/092/095/098) 1# as of 01.06.10 as of model year. 2011
REFER TO TESTING & REPAIR     AR54.21-P-1258EW
12.2 Remove front SAM control unit with fuse and relay module and place to one side with electrical connectors attached MODEL 212.0## (except 212.074/077/092/095/098) 1# up to 31.05.10 up to model year. 2010
REFER TO TESTING & REPAIR     AR54.21-P-1260CW
13 Remove left paneling next to rear seat
REFER TO TESTING & REPAIR     AR68.30-P-4780CW
14 Remove trim of left C-pillar MODEL 212.0## (except 212.074/077/092/095/098) 1# as of 01.06.10 as of model year. 2011
REFER TO TESTING & REPAIR     AR68.30-P-4490EW
    IMPORTANT Do not remove seat belt.
15.1 Remove multifunction antenna MODEL 212.0## (except 212.074/077/092/095/098) 1# up to 30.06.11 with CODE 512 (COMAND APS with DVD changer), MODEL 212.0## (except 212.074/077/092/095/098) 1# up to 30.06.11 with CODE 527 (COMAND APS with single DVD drive (with navigation)), MODEL 212.0## (except 212.074/077/092/095/098) 1# up to 31.05.12 with CODE 511 (Audio 50 APS with DVD changer), MODEL 212.0## (except 212.074/077/092/095/098) 1# up to 31.05.12 with CODE 525 (MB Audio 50 APS radio)
REFER TO TESTING & REPAIR   MODEL 212.0## (except 212.074/077/092/095/098) 1# as of 01.06.10 as of model year. 2011 AR82.70-P-8951EL
REFER TO TESTING & REPAIR   MODEL 212.0## (except 212.074/077/092/095/098) 1# up to 31.05.10 up to model year. 2010
IMPORTANT The multifunction antenna is no longer required.		 AR82.70-P-8951EW
15.2 Remove multifunction antenna mock-up MODEL 212.0## (except 212.074/077/092/095/098) 1# up to 31.05.12 with CODE 510 (Audio 20 with CD changer), MODEL 212.0## (except 212.074/077/092/095/098) 1# up to 31.05.12 with CODE 523 (MB Audio 20 radio)
    IMPORTANT The removal of the multifunction antenna mock-up is performed in the same manner as the removal of the multifunction antenna. The multifunction antenna mock-up is no longer required.
INSTALLING Install
16 Install new multifunction antenna for comfort telephony
REFER TO TESTING & REPAIR   MODEL 212.0## (except 212.074/077/092/095/098) 1# up to 31.05.10 up to model year. 2010 AR82.70-P-8951EW
REFER TO TESTING & REPAIR   MODEL 212.0## (except 212.074/077/092/095/098) 1# as of 01.06.10 as of model year. 2011 AR82.70-P-8951EL
17 Retrofit phone bracket (3) in center console (2) MODEL 212.0## (except 212.074/077/092/095/098) 1# except CODE 279 (Electronic gear selector) AN82.70-P-0001-02EW
    MODEL 212.0## (except 212.074/077/092/095/098) 1# with CODE 279 (Electronic gear selector) AN82.70-P-0001-02EWA
18 Retrofit comfort telephony wiring harness in center console (2) MODEL 212.0## (except 212.074/077/092/095/098) 1# up to 31.05.10 up to model year. 2010 AN82.70-P-0008-01EWA
    MODEL 212.0## (except 212.074/077/092/095/098) 1# as of 01.06.10 as of model year. 2011 AN82.70-P-0008-01EWD
19 Position center console (2) in vehicle IMPORTANT Do not install center console (2).
IMPORTANT Note routing of comfort telephony wiring harness.
20 Retrofit comfort telephony wiring harness in vehicle MODEL 212.0## (except 212.74/077/092/095/098) 1# up to 31.05.10 up to model year 2010 AN82.70-P-0008-01EWB
    MODEL 212.0## (except 212.074/077/092/095/098) 1# as of 01.06.10 as of model year. 2011 AN82.70-P-0008-01EWC
    TORQUE SPECIFICATION Left front seat crossmember ground point *BA00.19-P-1023-01D
21 Install remaining parts
  Update Vehicle Documentation (VeDoc)
22 Enter special equipment in online vehicle data card IMPORTANT Code 386 (Comfort telephony)
23 Attach the note "Comfort telephony retrofitted as per AN82.70-P-0008EW " under field organization texts to design group 82
24 Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04A
25 Carry out variant coding using software calibration number (SCN) IMPORTANT "Instrument cluster" Available audio component, e.g. "Radio"
26 Disconnect diagnostic system
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04A
INSPECT Check
27 Perform function test of comfort telephony
GROUND POINTS

Number Designation MODEL 212
BA00.19-P-1023-01D Left front seat crossmember ground point W18 Nm 10
PARTS ORDERING NOTE

Part no. Designation Quantity
KG 99 (see EPC) Comfort telephony parts kit 1
