Retrofit phone bracket - AN82.70-P-0001-02EWA

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.### 1# with CODE 279 (Electronic gear selector)

MODEL 218.3## (except 218.374) 1#

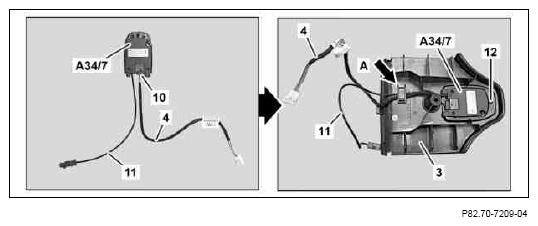

Connect 4-pin black connector (10) of adapter line (4) to Bluetooth module (A34/7), as shown.
Insert Bluetooth module (A34/7) into bracket (3).
Route antenna line (11) and adapter line (4) in support (arrow A) of bracket (3), as shown.

Fig 1: Inserting Bluetooth Module Into Bracket
Courtesy of MERCEDES-BENZ USA
Screw Bluetooth module (A34/7) to bracket (3) with screw/bolt (12).

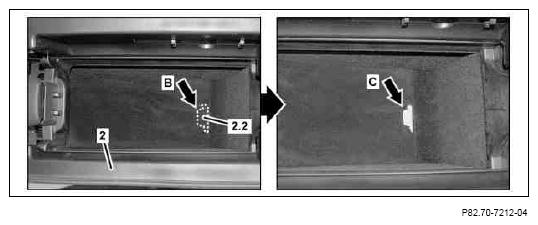

Detach section (2.2) from center console (2) along perforation (arrow B) and remove.
Place bracket with Bluetooth module into stowage compartment of center console (2).
Route antenna line and adapter line of Bluetooth module through opening (arrow C).

Fig 2: Routing Antenna Line And Adapter Line Of Bluetooth Module Through Opening
Courtesy of MERCEDES-BENZ USA

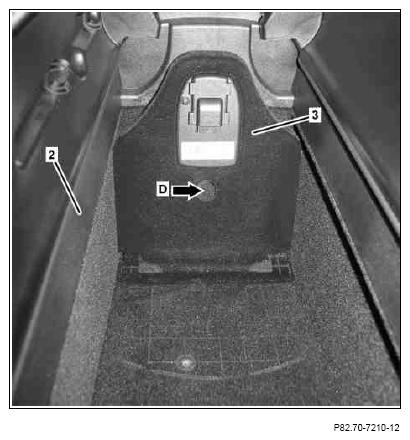

Position bracket (3) in stowage compartment of center console (2), as shown, and screw in place using provided screw/bolt (arrow D).

Fig 3: Positioning Bracket In Stowage Compartment Of Center Console
Courtesy of MERCEDES-BENZ USA

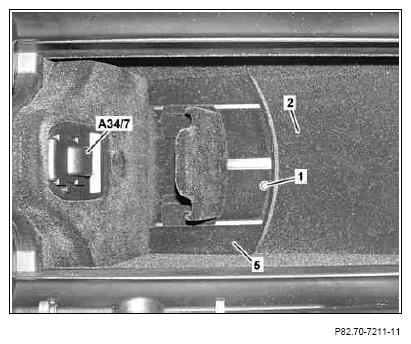

Insert bracket (5) into stowage compartment of center console (2) and screw down using screw/bolt (1).
Clip cover into Bluetooth module (A34/7).

Fig 4: Center Console Stowage Compartment, Bracket And Screw/Bolt
Courtesy of MERCEDES-BENZ USA
