Retrofit phone bracket - AN82.70-P-0001-02EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.### 1# without CODE 279 (Electronic gear selector)

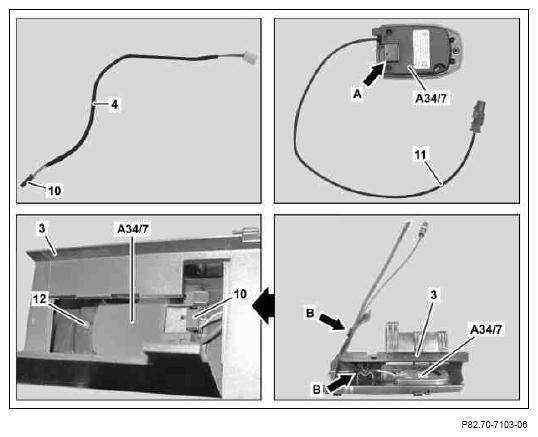

Connect black 4-pin connector (10) of adapter line (4) to Bluetooth module (A34/7) (arrow A).
Clip Bluetooth module (A34/7) into bracket (3).
Route antenna line (11) and adapter line (4), as shown, in supports (arrows B) of bracket (3).
Screw Bluetooth module (A34/7) to bracket (3) with screw/bolt (12).

Fig 1: Locating Bluetooth Module And Supports
Courtesy of MERCEDES-BENZ USA

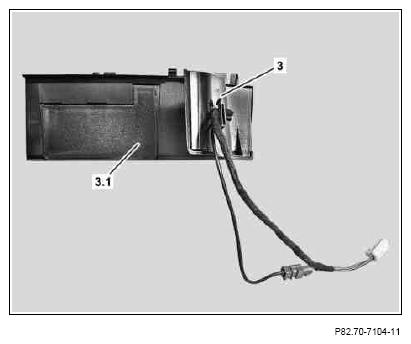

Fold over and lock cover (3.1) of bracket (3).

Fig 2: Lock Cover And Bracket
Courtesy of MERCEDES-BENZ USA

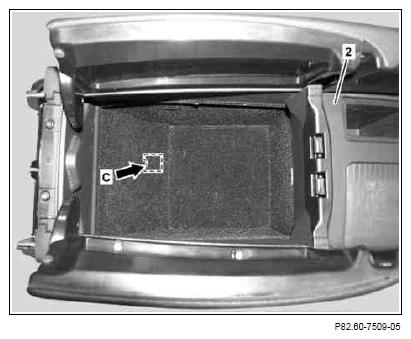

Create passage (arrow C) in stowage compartment of center console (2).
The passage is pre-stamped in the stowage tray of the center console (2) and can be broken out.

Fig 3: Passage In Center Console Stowage Compartment
Courtesy of MERCEDES-BENZ USA

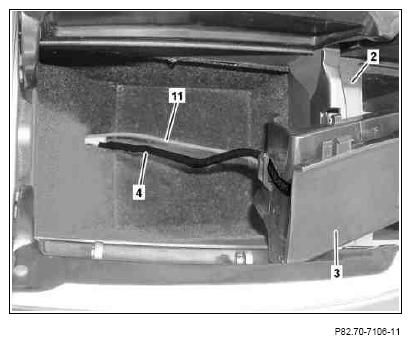

Route antenna line (11) and adapter line (4) through opening created in center console (2) and place bracket (3) with Bluetooth module into stowage compartment of center console (2).

Fig 4: Antenna Line, Adapter Line And Center Console
Courtesy of MERCEDES-BENZ USA

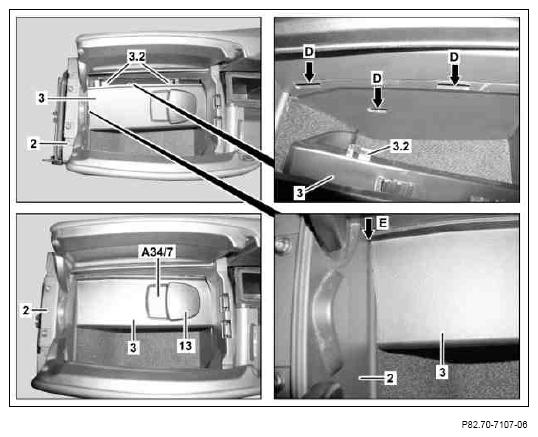

Position bracket (3) in stowage compartment of center console (2) and clip catch hook (3.2) into cutouts (arrows D) in center console (2).
Do not clamp the antenna line and the adapter line. Otherwise damage may occur.

The bracket (3) must be positioned in the rear area (arrow E) of the center console (2), as shown.
Clip cover (13) to Bluetooth module (A34/7).

Fig 5: Cliping Cover To Bluetooth Module
Courtesy of MERCEDES-BENZ USA
