Retrofit Night View Assist - AN54.30-P-0001EW

MODEL 212.0## (except 212.007/074/075/076/092/093/094/095/098) 1# up to 4/12/13, 212.1## (except 212.195) 1# up to 4/12/13, 212.2## (except 212.207/274/275/276/292/298) 1# up to 4/12/13 up to model year 2014 with CODE 512 (COMAND APS with DVD changer) with CODE 608 (Adaptive Highbeam Assist) without CODE Z04 (Light armoring)

MODEL 212.0## (except 212.007/074/075/076/092/093/094/095/098) 1# up to 4/12/13, 212.1## (except 212.195) 1# up to 4/12/13, 212.2## (except 212.207/274/275/276/292/298) 1# up to 4/12/13 up to model year 2014 with CODE 527 (COMAND APS with single DVD drive (with navigation)) with CODE 608 (Adaptive Highbeam Assist) without CODE Z04 (Light armoring)

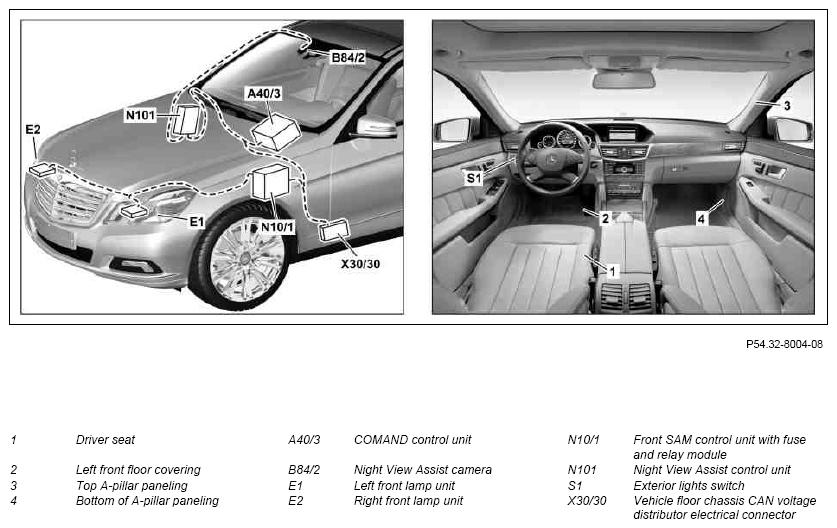

Fig 1: Night View Assist Components

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Remove right trim of A-pillar at top (3)
2	Remove right and left trim of A-pillar at bottom (4)
3	Remove left front door sill
			AR68.30-P-4100EW
4	Remove trim under instrument panel on right
			AR68.10-P-1520CW
5	Remove trim under instrument panel on left
6	Remove glove box
			AR68.10-P-1200EW
7	Remove COMAND controller unit (A40/3)
			AR82.60-P-7502EW
8	Remove exterior lights switch (S1)
		MODEL 212.0 up to 11.30.09	AR54.25-P-3270CW
		MODEL 212.0 as of 12.01.09, 212.1/2 The exterior lights switch (S1) is no longer required.	AR54.25-P-3270EW
9	Remove center console
			AR68.20-P-2000EW
10	Remove accelerator pedal
			AR30.12-P-1321EW
11	Unscrew bolts at rear of driver seat (1), remove front bolts on driver seat (1) and detach front paneling from guide rails
			AR91.10-P-1000CW
12	Remove left front floor covering (2)	Observe routing of accelerator pedal wiring harness.
13	Fasten driver seat (1) at front using bolt
14	Disconnect ground line of battery
			AR54.10-P-0003EW
15	Remove windshield
			AR67.10-P-1000P
		The windshield is no longer required.
16	Remove left front lamp unit (E1) and right front lamp unit (E2)
			AR82.10-P-4730CW
		It is not necessary to buffer the basic data. The left front headlight unit (E1) and right front headlight unit (E2) are no longer required. Remove bolts of telescopic nozzles left front headlight unit (E1) and right front headlight unit (E2).
17	Remove front SAM control unit with fuse and relay module (N10/1) and place to one side with electrical lines still connected
			AR54.21-P-1260CW
	Install
18	Install wiring harness for left front headlight unit (E1) and right front headlight unit (E2)		AN54.30-P-0001-01EW
19	Install new left front headlight unit (E1) and new right front headlight unit (E2)
			AR82.10-P-4730CW
		Complete assembly of vehicle front.
20	Install new exterior lights switch (S1)
		MODEL 212.0 up to 11.30.09	AR54.25-P-3270CW
		MODEL 212.0 as of 12.01.09, 212.1/2	AR54.25-P-3270EW
21	Install Night View Assist control unit (N101)		AN54.30-P-0001-03EW
22	Retrofit Night View Assist wiring harness		AN54.30-P-0001-02EW
23	Install remaining parts	Operation steps 17, 13 to 9 and 7 to 1.
24	Install windshield
			AR67.10-P-1000P
		Before installing the rain/light sensor and the multifunction camera, strip back the wrapping around the wiring harness for the rain/light sensor and for the multifunction camera wiring harness to a length of approx. 50 mm.
25	Install Night View Assist camera (B84/2)
			AR54.30-P-3000SX
26	Connect ground line to battery
			AR54.10-P-0003EW
27	Enter special equipment in online vehicle data card via vehicle documentation system (VeDoc)	Add:  CODE 610 (Night View Assist)
28	Document retrofitted equipment in VeDoc	Attach note "Night View Assist retrofitted as per AN54.30-P-0001EW " to the KG54 under field organization texts.
29	Connect Star Diagnosis and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
30	Perform variant coding with XENTRY using the software calibration number (SCN)
31	Disconnect Star Diagnosis
			AD00.00-P-2000-04A
32	Calibrate Night View Assist camera (B84/2)	Testing equipment for electronic systems
