Retrofit headlamp wiring harness - AN54.30-P-0001-01EW

MODEL 212.0##/1##/2## 1#

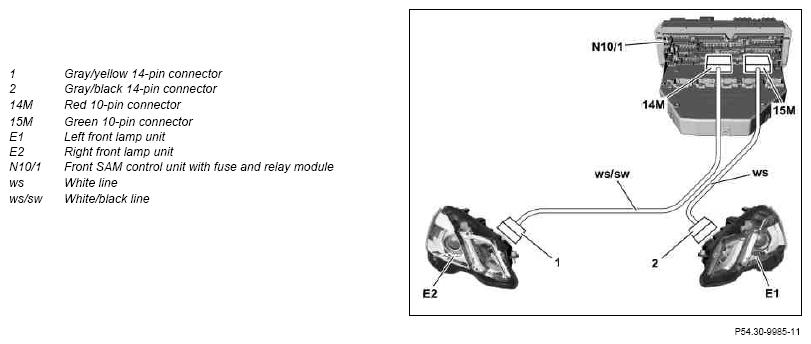

Connection scheme

Fig 1: Headlamp Connection Schematic Diagram

Courtesy of MERCEDES-BENZ USA

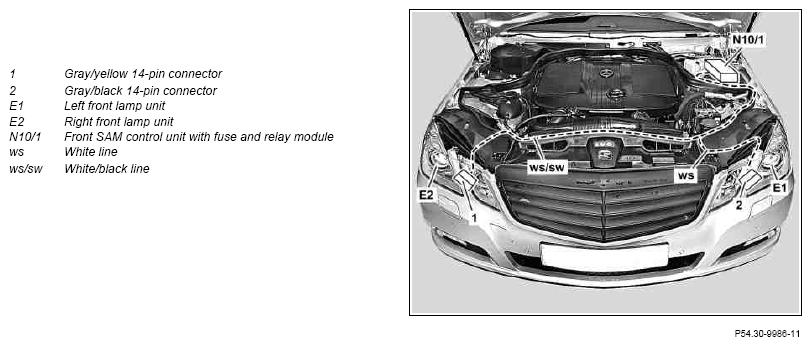

Routing diagram

Fig 2: Headlamp Wiring Routing Diagram

Courtesy of MERCEDES-BENZ USA

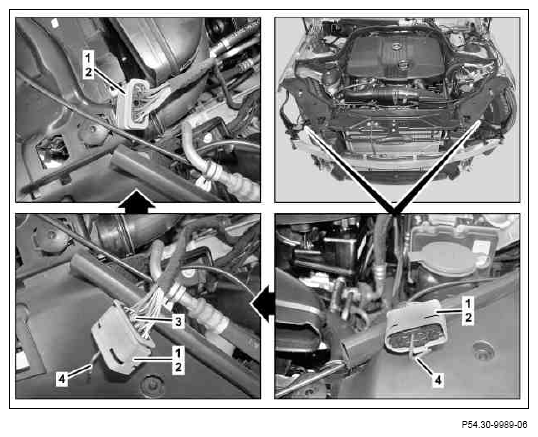

1. Press green rubber grommet (3) in slot 7 toward rear out of the gray/yellow 14-pin connector (1) of right front lamp unit and out of the gray/black 14-pin connector (2) of the left front lamp unit using a 2 mm drift (4).

   The numbering of the slots is imprinted on the rear on the gray/yellow 14-pin connector (1) and on the gray/black 14-pin connector (2).

   Fig 3: Green Rubber Grommet And Gray/Yellow 14-Pin Connector

   Courtesy of MERCEDES-BENZ USA

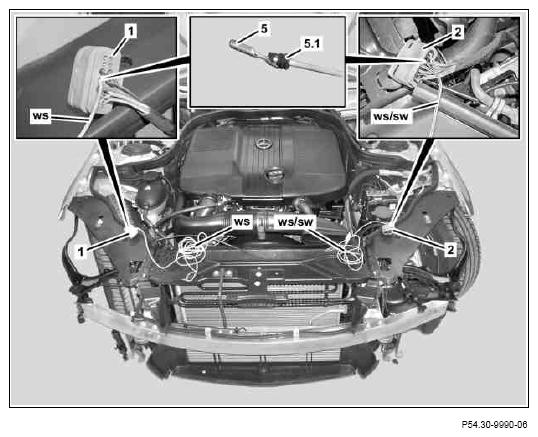

2. Install white line (ws) in chamber "7" of the gray/yellow 14-pin connector (1) of the front right lamp unit.

   Use contact (5) with the rubber grommet (5.1).

3. Install white/black line (ws/sw) in chamber "7" of the gray/black 14-pin connector (2) of the front left lamp unit.

   Use contact (5) with the rubber grommet (5.1).

   Fig 4: Rubber Grommet And Yellow 14-Pin Connector

   Courtesy of MERCEDES-BENZ USA

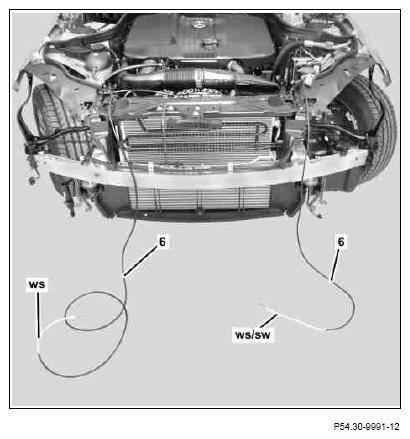

4. Slide a 1250 mm-long black insulation hose (6) over the white/black line (ws/sw).
5. Slide a 2250 mm-long black insulation hose (6) over the white line (ws).
   Fig 5: Black Insulation Hoses Over White/Black Line (WS/SW)

   Courtesy of MERCEDES-BENZ USA

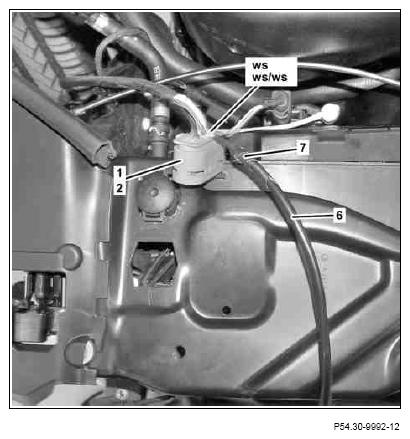

6. Slide the black insulation hose (6) onto the white line (ws) up to approx. 20 mm in front of the gray/yellow 14- pin connector (1), and seal behind the gray/yellow 14- pin connector (1) with insulation tape (7).
7. Slide the black insulation hose (6) onto the white/black line (ws/sw) up to approx. 20 mm in front of the gray/black 14-pin connector (2) and seal behind the gray/black 14-pin connector (2) with insulation tape (7).
   Fig 6: Gray/Yellow 14- Pin Connector, Insulation Tape And Black Insulation Hoses

   Courtesy of MERCEDES-BENZ USA

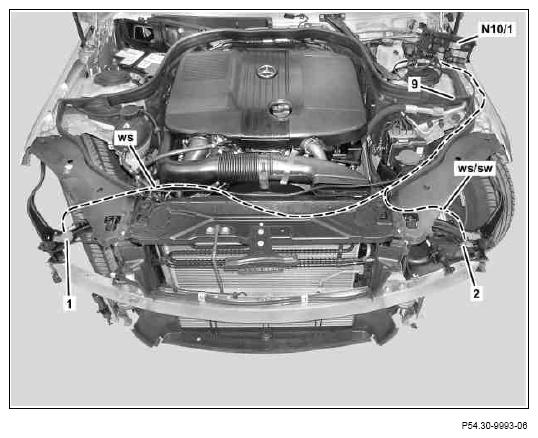

8. Route white line (ws) and white/black line (ws/sw) from the installation location of the gray/yellow 14-pin connector (1) and the gray/black 14-pin connector (2) along the vehicle wiring harness and the engine hood cable to the front SAM control unit with fuse and relay module (N10/1).

   Route white line (ws) and white/black line (ws/sw) under the rubber seal (9).

   Fig 7: Gray/Yellow 14-Pin Connector And Rubber Seal

   Courtesy of MERCEDES-BENZ USA
9. Fix white line (ws) and white/black line (ws/sw) in place at the vehicle wiring harness and at the engine hood cable with cable tie.

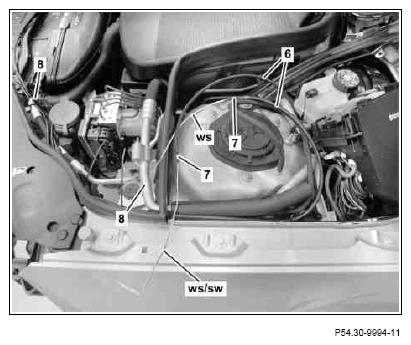

10. Wrap felt band around the black insulation hose (6) of the white line (ws) and of the white/black line (ws/sw) near the refrigerant lines (8).
11. In the area of the front SAM control unit with fuse and relay module, seal the black insulation hose (6) at the white line (ws) and at the white/black line (ws/sw) with insulation tape (7).

    The white line (ws) and the white/black line (ws/sw) may not be protected by the black insulation hose (6) at a length of approx. 350 mm. Shorten the black insulation hose (6) before sealing if necessary.

12. Wrap contact at the white line (ws) and contact at the white/black line (ws/sw) with a thin layer of insulation tape.
    Fig 8: Refrigerant Lines, Black Insulation Hose And Insulation Tape

    Courtesy of MERCEDES-BENZ USA

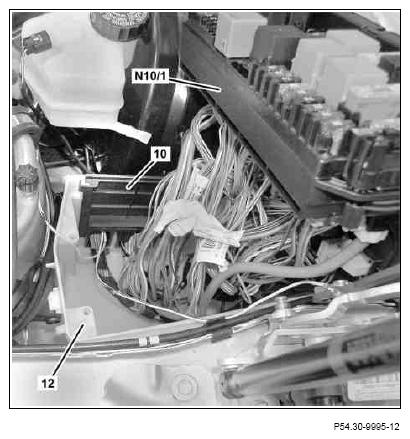

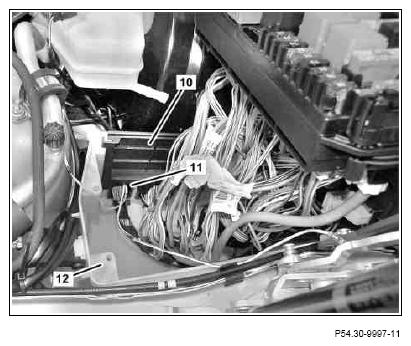

13. Unclip cover (10) of the support box (12) on the front SAM control unit with fuse and relay module (N10/1) and remove upwards.
    Fig 9: Front SAM Control Unit With Fuse And Relay Module, Cover And Support Box

    Courtesy of MERCEDES-BENZ USA
14. Carefully feed the expanding pliers between the sealant (arrow A) and the rubber grommet (11).

    Do not damage the electrical lines and the rubber grommet (11).

    Otherwise, water penetration may occur.

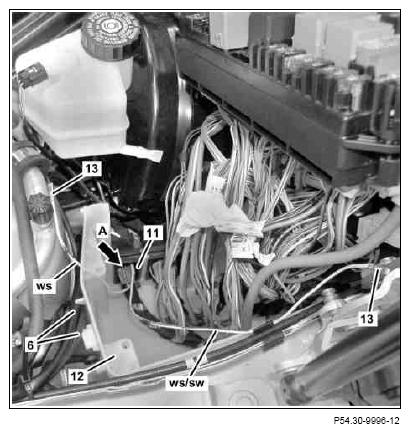

15. Carefully route white line (ws) and white/black line (ws/sw) between sealant (arrow A) and rubber grommet (11) into the support box (12).

    Ensure that the black insulation hoses (6) end before the rubber grommet (11).

    Otherwise, water may infiltrate the support box (12) due to the capillary effect.

    Fig 10: Routing White Line And White/Black Line Between Sealant And Rubber Grommet

    Courtesy of MERCEDES-BENZ USA
16. Push sealant (arrow A) firmly into the rubber grommet (11) once again.

    Re-establish leaktightness with new sealant if necessary.

17. Remove insulation tape again from contact (13) of the white line (ws) and of the white/black (ws/sw) line.
18. Check correct fit of the rubber grommet (11) in the support box (12) and correct if necessary.
19. Insert cover (10) into the support box (12) from above and lock in place.
    Fig 11: Rubber Grommet, Cover And Support Box

    Courtesy of MERCEDES-BENZ USA
20. Remove red 10-pin connector (14M) and green 10-pin connector (15M) at front SAM control unit with fuse and relay module (N10/1).

    The short designations of the red 10-pin connector (14M) and the green 10-pin connector (15M) are imprinted on the front SAM control unit with fuse and relay module (N10/1).

    Fig 12: Front SAM Control Unit With Fuse And Relay Module And Connector Pins

    Courtesy of MERCEDES-BENZ USA

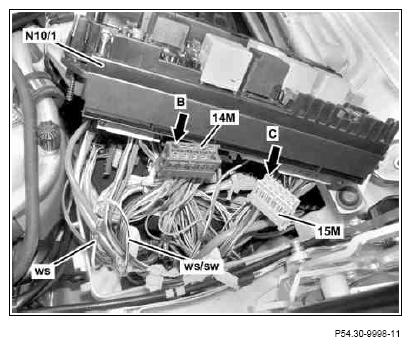

21. Install white line (ws) in slot 10 (arrow C) of the green 10-pin connector (15M).
22. Install white/black line (ws/sw) in slot 1 (arrow B) of the red 10-pin connector (14M).

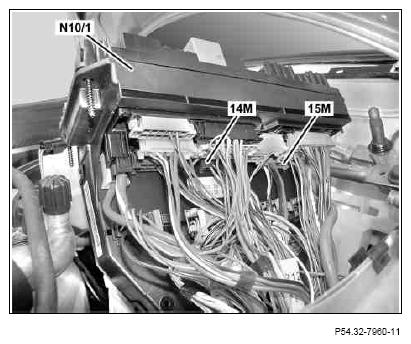

23. Connect red 10-pin connector (14M) and green 10-pin connector (15M) at the front SAM control unit with fuse and relay module (N10/1).
    Fig 13: Connecting Red 10-Pin Connector And Green 10-Pin Connector At The Front SAM Control Unit
