Retrofit Night View Assist control unit - AN54.30-P-0001-03EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0##/1##/2## 1#

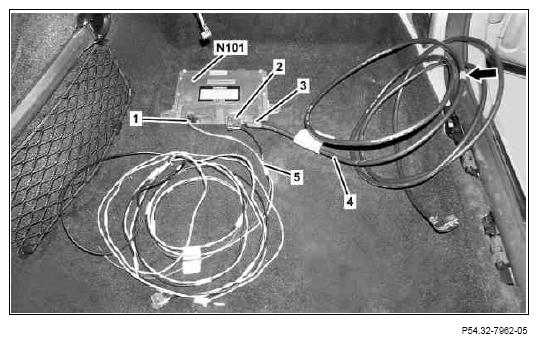

- Connect black, 6-pin female connector (1) of power supply wiring harness (5) to Night View Assist control unit (N101).
- Connect violet, 2-pin female connector (2) of power supply wiring harness (5) to Night View Assist control unit (N101).
- Connect silver, 10-pin female connector (3) of low voltage differential signal (LVDS) line (4) to Night View Assist control unit (N101).
The silver, 10-pin female connector (3) of the LVDS line (4) which is at the white length adjustment marking (arrow) must be used.

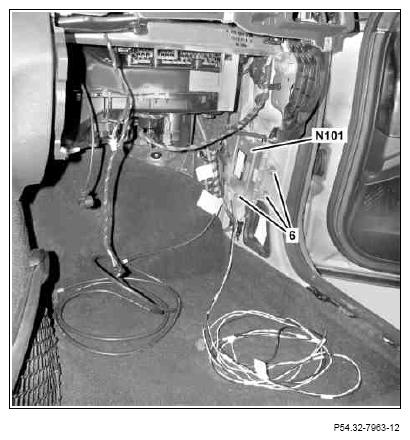

- Position Night View Assist control unit (N101) on mounts at right A-pillar and screw down securely using sheet metal nuts (6).
