Retrofit Night View Assist wiring harness - AN54.30-P-0001-02EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0##/1##/2## 1#

Connection scheme

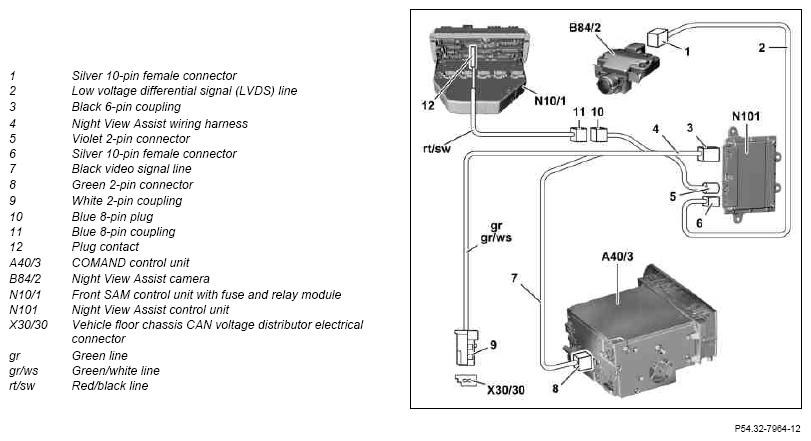

Fig 1: Night View Assist Wiring Harness Connection Schematic Diagram
G10239947Courtesy of MERCEDES-BENZ USA

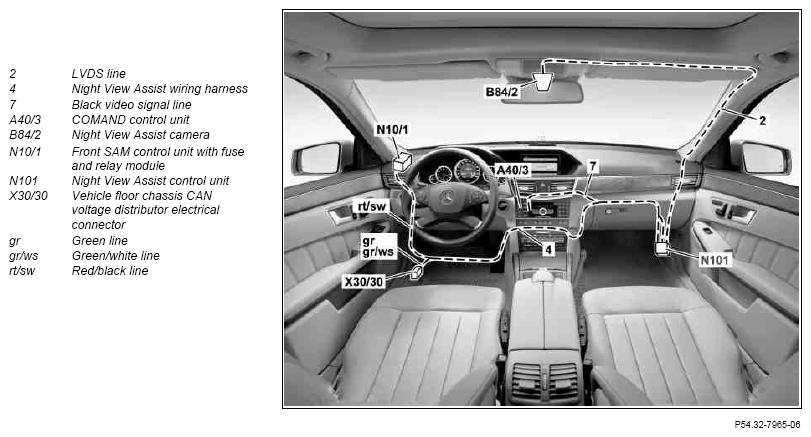

Fig 2: Night View Assist Wiring Harness Layout Diagram
G10239948Courtesy of MERCEDES-BENZ USA
  1. Unscrew bolts (13) from carrier (14) of inside rearview mirror (A67) and remove carrier (14).

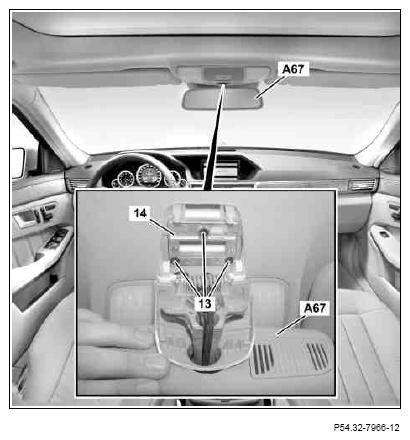

    Fig 3: Inside Rearview Mirror Carrier And Bolts
    G10239949Courtesy of MERCEDES-BENZ USA
  2. Wrap insulation tape (14) around Night View Assist wiring harness (4) and LVDS line (2) over a length of approx. 500 mm starting at Night View Assist control unit (N101).
  3. Fix Night View Assist wiring harness (4) and LVDS line (2) in place at A-pillar at bottom of vehicle wiring harness using cable tie (arrows A).

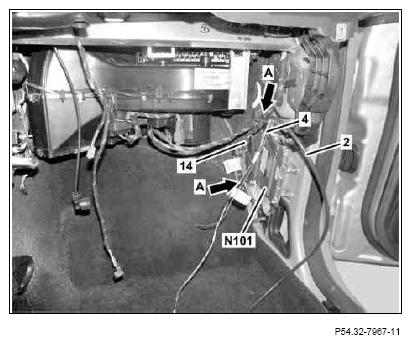

    Fig 4: Fix Vehicle Wiring Harness Using Cable Tie
    G10239950Courtesy of MERCEDES-BENZ USA
  4. Wrap felt tape (15) around LVDS line (2) 180 mm downstream of silver 10-pin female connector (1) along a length of 1500 mm.

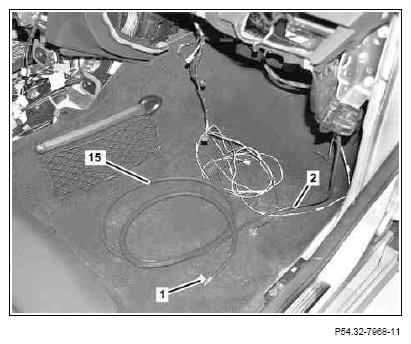

    Fig 5: Felt Tape, LVDS Line And Silver 10-Pin Female Connector
    G10239951Courtesy of MERCEDES-BENZ USA
  5. Route LVDS line (2), as shown, from installation location of Night View Assist camera behind headliner (16) to top of A-pillar.

    IMPORTANT The silver 10-pin female connector (1) of the LVDS line (2) must hang out of the headliner (16) at the inside rearview mirror by approx. 180 mm.

  6. Position LVDS line (2) in cutout (arrow B) of headliner (16).

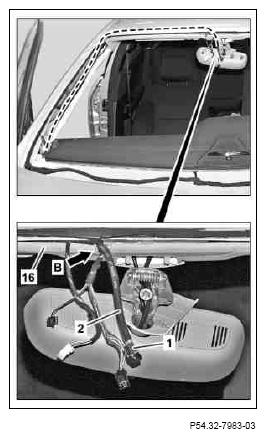

    Fig 6: Positioning LVDS Line In Cutout Of Headliner
    G10239952Courtesy of MERCEDES-BENZ USA
  7. Route LVDS line (2) from headliner (16) along vehicle wiring harness at top of A-pillar and fix in place using cable ties (arrows C).

    IMPORTANT Route the LVDS line (2) in such a way that the distance to the windowbag (17) is as great as possible.

  8. Mask off sharp-edged sides (arrows D) of reinforcement (18) using felt tape and route LVDS line (2), as shown, between A-pillar and reinforcement (18).

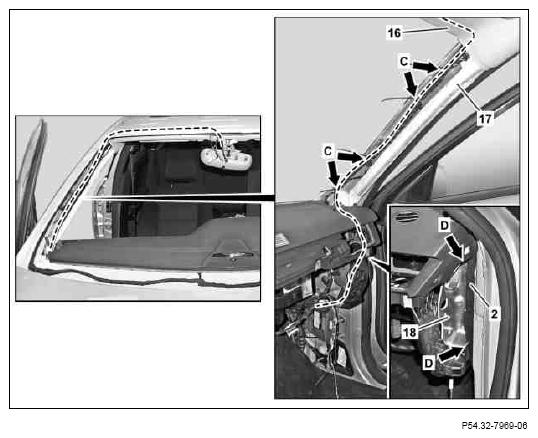

    Fig 7: Masking Off Sharp-Edged Sides Of Reinforcement Using Felt Tape And Route LVDS Line
    G10239953Courtesy of MERCEDES-BENZ USA
  9. Position carrier (14) of inside rearview mirror (A67) and screw down securely using bolts (13).
    Fig 8: Positioning Carrier Of Inside Rearview Mirror And Screw Down Securely Using Bolts
    G10239954Courtesy of MERCEDES-BENZ USA
  10. Lay LVDS line (2), as shown, in loops and fix in place on vehicle wiring harness using cable tie (19).
  11. Install red/black line of Night View Assist wiring harness (4) in contact cavity "6" of blue 8-pin plug (10) contained in package contents.
  12. Lock retaining clip (arrows E) at blue 8-pin plug (10).

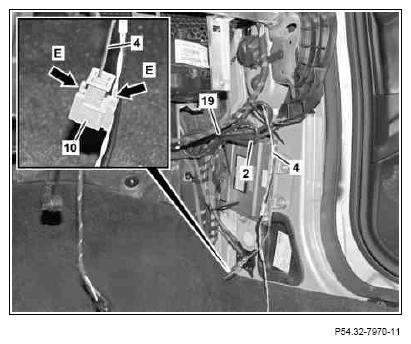

    Fig 9: Lock Retaining Clip At Blue 8-Pin Plug
    G10239955Courtesy of MERCEDES-BENZ USA
  13. Route Night View Assist wiring harness (4), as shown, along vehicle wiring harness to air conditioner housing (21) and fix in place using cable ties.
  14. Connect blue 8-pin female connector (11) of red/black line (RD/BK) to blue 8-pin plug (10) of Night View Assist wiring harness (4).
  15. Fix electrical connection made with blue 8-pin female connector (11) and blue 8-pin plug (10) in place on vehicle wiring harness using cable tie.

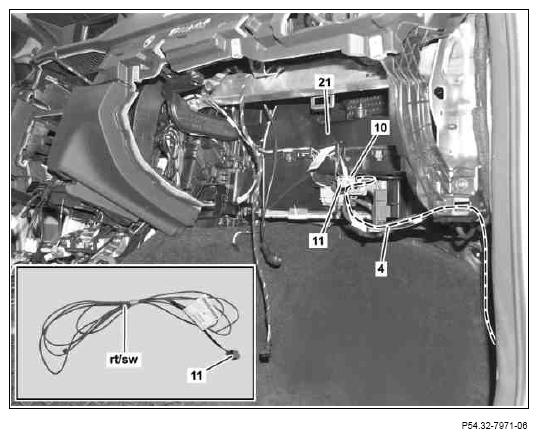

    Fig 10: Night View Assist Wiring Harness And Blue 8-Pin Female Connector
    G10239956Courtesy of MERCEDES-BENZ USA
  16. Route Night View Assist wiring harness (4) with green line, green/white line and black video signal line (7) as well as red/black line (RD/BK) above air duct (20) along vehicle wiring harness and into installation opening of COMAND controller unit.
  17. Route green 2-pin female connector (8) of video signal line (7) approx. 200 mm out of installation opening of COMAND operating unit.

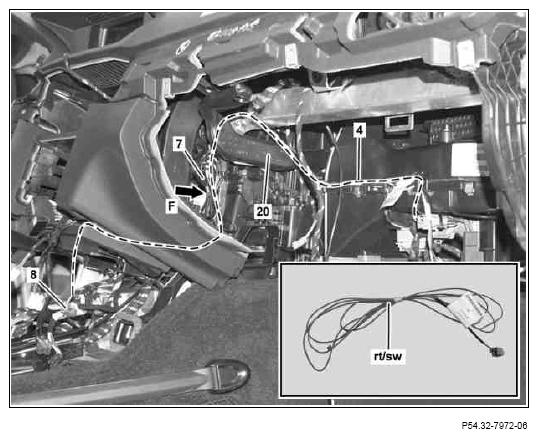

    Fig 11: Night View Assist Wiring Harness And Green 2-Pin Female Connector
    G10239957Courtesy of MERCEDES-BENZ USA
  18. Fix Night View Assist wiring harness (4) and red/black line (RD/BK) in place on vehicle wiring harness using cable tie.
  19. Lay extended length of video signal line (7) in loops and fix in place using cable tie (arrow F).
  20. Route Night View Assist wiring harness (4) and red/black line (RD/BK) along vehicle wiring harness to Bowden cable (24) of foot-operated parking brake.
  21. Fix Night View Assist wiring harness (4) and red/black line (RD/BK) in place on vehicle wiring harness using cable tie (arrows G).
  22. Fix Night View Assist wiring harness (4) and red/black line (RD/BK) to insulation mat (22) using felt tape (23).

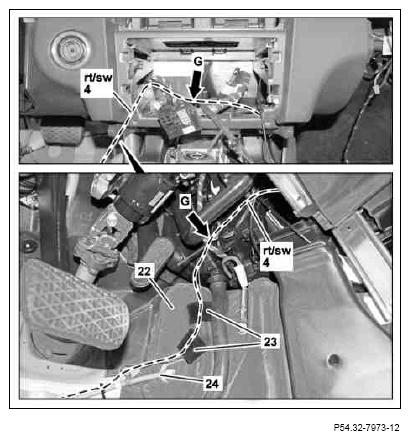

    Fig 12: Night View Assist Wiring Harness And Insulation Mat
    G10239958Courtesy of MERCEDES-BENZ USA
  23. Route Night View Assist wiring harness (4) and red/black line (RD/BK) along Bowden cable (24) of foot-operated parking brake and fix in place using cable ties (25).
  24. Open left front cable duct (26).

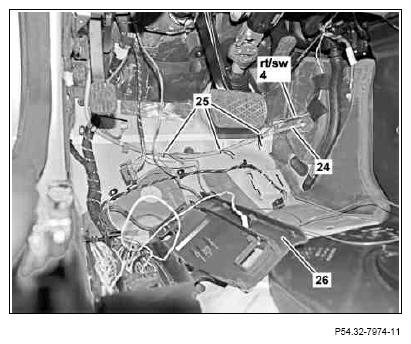

    Fig 13: Night View Assist Wiring Harness And Left Front Cable Duct
    G10239959Courtesy of MERCEDES-BENZ USA
  25. Route white 2-pin female connector (9) of Night View Assist wiring harness (4) into left front cable duct (26).
  26. Connect white 2-pin female connector (9) of Night View Assist wiring harness (4) to vehicle floor chassis CAN potential distributor electrical connector (X30/30).
  27. Fix Night View Assist wiring harness (4) in place on vehicle wiring harness using cable tie (27).

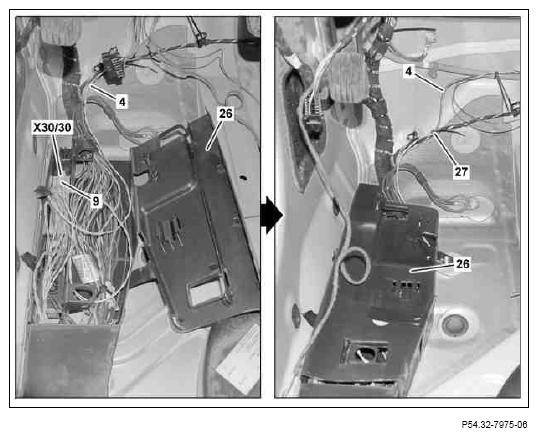

    Fig 14: White 2-Pin Female Connector And Night View Assist Wiring Harness
    G10239960Courtesy of MERCEDES-BENZ USA
  28. Lay Night View Assist wiring harness (4) in left front cable duct (26) in loops and fix in place.
  29. Close left front cable duct (26).
  30. Route red/black line (RD/BK) from Bowden cable (24) of foot-operated parking brake along vehicle wiring harness to front SAM control unit with fuse and relay module.
  31. Fix red/black line (RD/BK) in place on vehicle wiring harness using cable ties (28).

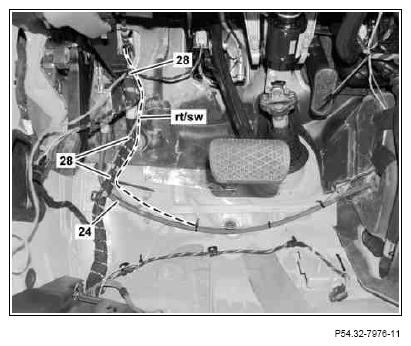

    Fig 15: Left Front Cable Duct, Night View Assist Wiring Harness And Bowden Cable
    G10239961Courtesy of MERCEDES-BENZ USA

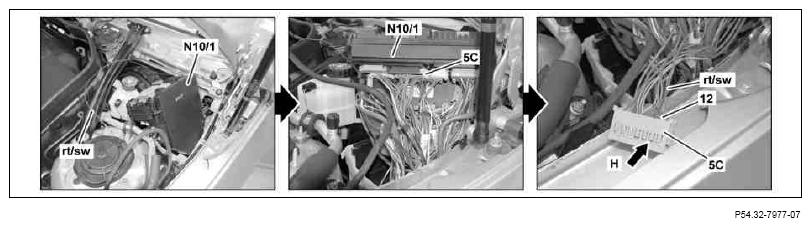

    Fig 16: Locating Pink Female Connector Contact Cavity
    G10239962Courtesy of MERCEDES-BENZ USA
  32. Detach pink female connector (5C) from front SAM control unit with fuse and relay module (N10/1).
  33. Insert plug contact (12) of red/black line (RD/BK) into contact cavity "11" (arrow H) of pink female connector (5C).
  34. Connect pink female connector (5C) to front SAM control unit with fuse and relay module (N10/1).
  35. Install 7.5 A fuse in slot 36 of front SAM control unit with fuse and relay module (N10/1).
