Remove/Install Engine With Front Axle Carrier - AR01.10-P-2500MNP
Engine 177 In Model 167
MODIFICATION NOTES
| 30.01.2017 | Union nut fuel line to fuel rail/high-pressure fuel pump | BA07.03-P-1001-01H |
Shown on model 167 With Engine 177 except code M036 (Maybach version)
Shown on model 167 With Engine 177 with code M036 (Maybach version)
Shown on model 167 With Engine 177 except code M036 (Maybach version)
Shown on model 167 With Engine 177 with code M036 (Maybach version)
Shown on right side of vehicle
Shown on model 167 With Engine 177 except code M036 (Maybach version)
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Risk of burn injuries, suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. | AS49.00-Z-0001-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Notice | Information on influencing load ratios when removing major assemblies | AH00.60-P-0001-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Notes on bolted connections with self tapping screws | AH00.00-P-0007-01SF | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Use of engine no. when installing reconditioned engines and factory-new replacement engines or crankcases | AH01.10-P-0001-01A | ||
| Remove/install | |||
| 1 | Secure vehicle against rolling away, shift transmission to neutral position, and release parking brake. | ||
| AD00.00-P-2000-06ME | |||
| 2 | Deactivate easy entry and exit feature. | Engine 177 in model 167 with code 275 (Driver's seat, electrically adjustable with memory function) | |
| 3 | Secure vehicle on vehicle lift. | AR00.60-P-1006A | |
| 4 | Pump pneumatic pressure of suspension struts using vehicle diagnosis system to central reservoir. | Engine 177 in model 167 with code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 490 (Electrohydraulic suspension) Engine 177 in model 167 with code 489 (AIRMATIC Dual Control/semi-active air suspension) with code 490 (Electrohydraulic suspension) |
|
| Notice | Notes on air suspension | AH32.22-P-1000-01T | |
| 000 588 19 21 00 Leak tester | WS83.00-P-0035B | ||
| 167 588 00 91 00 Adapter | WS32.00-P-0035B | ||
The complete wheels must not touch the ground. Suspension struts can otherwise be predamaged and subsequently fail. |
AD00.00-P-2000-06ME | ||
| 5 | Remove cover for air/water duct. | AR83.10-P-1411ME | |
| 6 | Remove partition upper part. | ||
| 7 | Disconnect the ground line for the on-board electrical system battery (G1). | Engine 177 in model 167 with code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 490 (Electrohydraulic suspension) | AR54.10-P-0003ME |
| 8.1 | Remove suspension strut electric controller units (M67, M67/1). | Engine 177 in model 167 with code 489 (AIRMATIC Dual Control/semi-active air suspension) with code 490 (Electrohydraulic suspension) | AR32.50-P-0047ME |
| 8.2 | Remove stabilizer bar. | Engine 177 in model 167 with code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 490 (Electrohydraulic suspension) |
AR32.35-P-2200ME |
| 9 | Turn steering wheel to center position (front wheels in straight-ahead position) and fix steering wheel in place using holding device. | Do not turn steering wheel when steering coupling is removed. The clock spring contact will otherwise be destroyed. |
Fig 1 |
| 10 | Drain coolant of the engine cooling circuit. | AR20.00-P-1142MNP | |
| 11 | Drain coolant of low-temperature circuit. | AR09.41-P-6834MNP | |
| 12 | Drain engine oil. | Engine 177 in model 167 except code M036 (Maybach version) | |
| AP18.00-P-0101GDD | |||
| 13 | Remove left and right underfloor panelings. | AR61.30-P-1001ME | |
| 14 | Remove front wheel and tire assemblies. | AR40.10-P-1102ME | |
| 15 | Remove air filter housing. | Left air filter housing | AR09.10-P-1151MNP |
| Right air filter housing | AR09.10-P-1152MNP | ||
| 16 | Remove expansion reservoir of the low-temperature circuit. | AR09.41-P-0001MNP | |
| 17 | Discharge air conditioning system. | AR83.30-P-1760ME | |

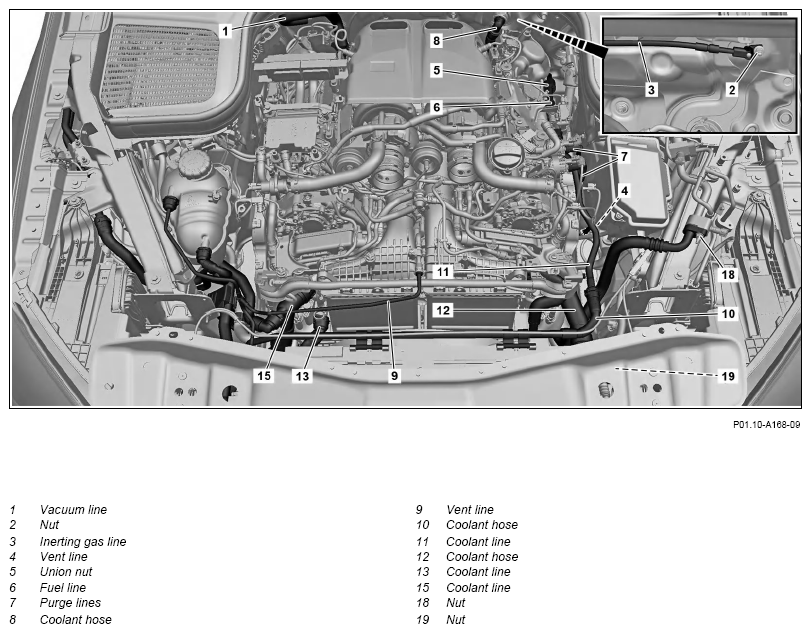

| 18 | Remove vacuum line (1) from the separating point on the firewall and seal openings with suitable stop plugs. | Fig 4 | |
| 19 | Remove nut (2) and remove inerting gas line (3). | *BA86.10-P-1003-03B | |
| 20 | Remove bleed line (4) of the front axle differential from the body. | ||
| 21 | Remove fuel pressure via the service connection. | AR07.03-P-1460-01MNL | |
| *BA07.03-P-1005-01H | |||
| Fig 6 | |||
| 22 | Remove union nut (5) from the separating point, pull out fuel line (6) and remove from the cylinder head cover. | *BA07.03-P-1001-01H | |
| 23 | Seal openings of the fuel distributor and fuel line (6) with suitable stop plugs. | Fig 4 | |
| 24 | Remove purge lines (7) from the separating point and seal openings with suitable stop plugs. | Fig 4 | |
| 25 | Remove coolant hose (8) at separating point for firewall. | AR20.20-P-7441-01RQ | |
| 26 | Remove bleed line (9). | AR20.20-P-7441-01RQ | |
| 27 | Disconnect coolant hose (10) from the coolant line (11). | Engine 177 in model 167 except code M036 (Maybach version) |
AR20.20-P-7441-01RQ |
| 28 | Remove coolant hose (12). | AR20.20-P-7441-01RQ | |

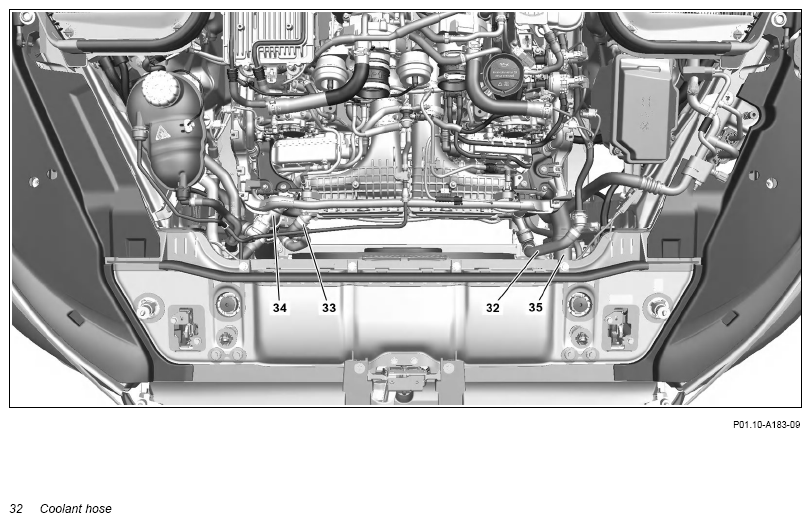

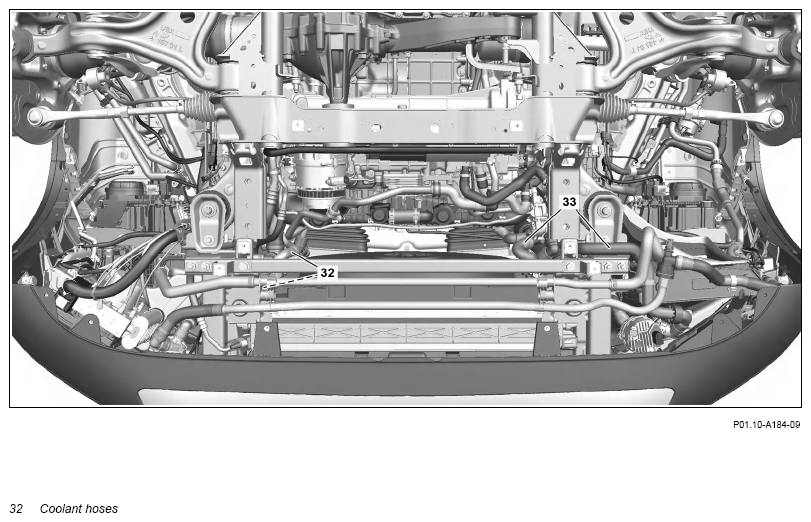

| 29 | Remove coolant hose (32). | Engine 177 in model 167 with code M036 (Maybach version) |
AR20.20-P-7441-01RQ |
| 30 | Remove coolant line (13, 15). | AR20.20-P-7441-01RQ | |
| 31 | Remove oil lines (14) from the engine oil cooler to the engine and seal openings with suitable stop plugs. | Engine 177 in model 167 except code M036 (Maybach version) |
*BA18.30-P-1007-01N |
| *BA18.30-P-1009-01N | |||
| Fig 2 | |||
| 32 | Remove coolant line (16) and place to one side. | Engine 177 in model 167 except code M036 (Maybach version) |
AR20.20-P-7441-01RQ |
| 33 | Remove nut (18), remove refrigerant line at the separating point and seal openings with suitable stop plugs. | ||
| Compressor oils (specification 362.1) | BB00.40-P-0362-01A | ||
| *BA83.30-P-1002-01U | |||
| Fig 4 | |||
| 34 | Remove nut (19), pull the refrigerant line out of the capacitor and seal the openings with suitable stop plugs. | ||
| Compressor oils (specification 362.1) | BB00.40-P-0362-01A | ||
| *BA83.30-P-1003-01U | |||
| Fig 2 | |||
| Fig 4 | |||
| 35 | Remove steering coupling from steering shaft. | AR46.10-P-8000ME | |
| 36 | Remove heat shield from transmission. | AR27.40-P-0700-01GZ | |
| *BA27.10-P-1009-04H | |||
| 37 | Disconnect engine wiring harness for removal of the engine. | AR15.18-P-1000-05MNO | |
| Notice | Notes on battery | AH54.10-P-0001-01A | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | AH00.00-Z-0300-01A | |
| *BA28.10-P-1007-01I | |||
| *BA54.15-P-1001-01L | |||
| 38 | Remove exhaust system. | AR49.10-P-7142MNO | |
| 39 | Remove propeller shaft. | AR41.10-P-0050MSC | |
| 40 | Release and disconnect electrical connectors (20, 28). | ||

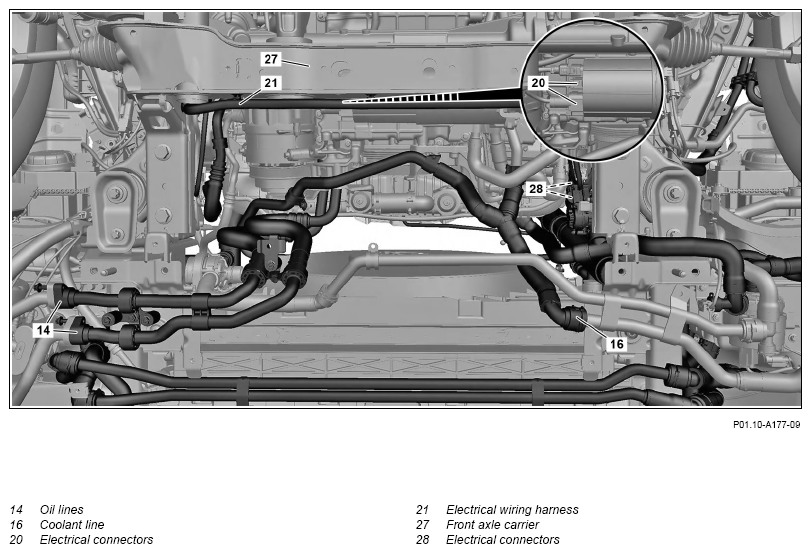

| 41 | Remove electrical wiring harness (21) from the front axle carrier (27) and place to one side | Fig 5 | |
| 42 | Release and disconnect electrical connector of the right front brake wear sensor (S10/2). | Only on right hand side of vehicle. | |

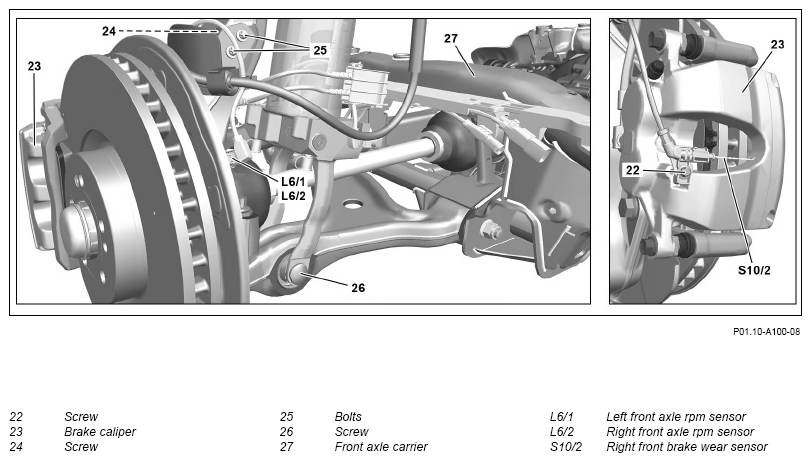

| 43 | Remove screw (22) and remove the connector coupling of right front brake wear sensor (S10/2) from the brake caliper (23). | Only on right hand side of vehicle. | |
| *BA42.10-P-1004-10L | |||
| 44 | Remove screw (24). | Only on right hand side of vehicle. |
*BA33.20-P-1006-01W |
| 45 | Remove screws (25). | *BA33.20-P-1006-01W | |
| 46 | Remove left front-axle rpm sensor (L6/1) and right front-axle rpm sensor (L6/2) from the wheel carrier. | ||
| *BA42.30-P-1001-01G | |||
| 47 | Remove left and right brake caliper (23) from the wheel carriers and secure against falling down with the lines connected. | Engine 177 in model 167 with code B06 (Silver brake calipers) with code B07 (AMG - ceramic brake system) with code U29 (AMG high-performance braking system) with code U70 (red-painted brake callipers) | AR42.10-P-0070MEX |
| Engine 177 in model 167 except code B06 (Silver brake calipers) except code B07 (AMG - ceramic brake system) except code U29 (AMG high-performance braking system) except code U70 (red-painted brake callipers) Do not stretch, crush or kink the brake hoses. Otherwise damage will occur. |
AR42.10-P-0070ME | ||
| 48 | Install guard plates for protection of brake disk cover panels. | AR42.00-P-0100-01A | |
| Fig 3 | |||
| 49 | Remove nuts of the screws (26) and remove screws (26) from the front suspension strut. | *BA32.25-P-1002-01O | |
| 50 | Remove left front level sensor (B22/8) and right front level sensor (B22/9) from the upper transverse control arm. | Engine 177 in model 167 with code 489 (AIRMATIC Dual Control/semi-active air suspension) Engine 177 in model 167 with code 613 (headlights left-hand-traffic) Engine 177 in model 167 with code 631 (Static LED headlamps, left-hand traffic) Engine 177 in model 167 with code 640 (SAE dynamic LED headlamps, right-hand traffic) Engine 177 in model 167 with code 641 (Dynamic LED headlamps, left-hand traffic) Engine 177 in model 167 with code 642 (Dynamic LED headlamps, right-hand traffic) |
AR82.10-P-0006ME |
| 51 | Remove upper transverse control arms from the wheel carriers. | *BA33.20-P-1001-01W | |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| 52 | Support front axle carrier (27) and secure engine transmission unit against slipping and falling down using suitable means. | ||
| 000 588 03 62 00 Lifting platform | WS01.00-P-0091A | ||
| 53 | Remove rear engine carrier from the body. | AR22.10-P-4360MNP | |

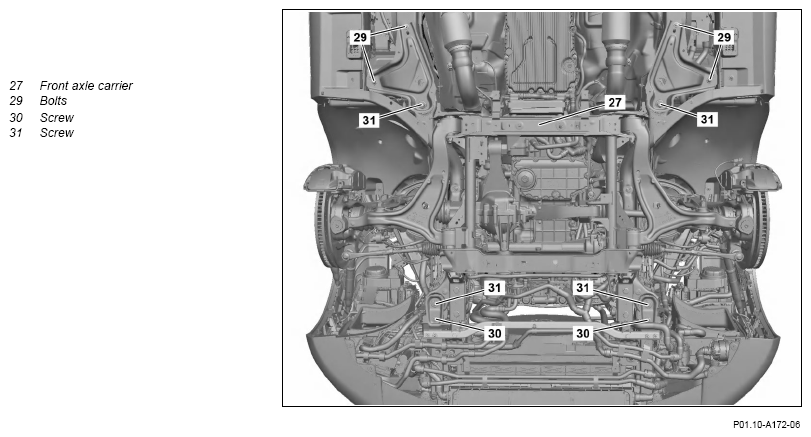

| 54 | Remove rear screws (31) and screws (29) and remove rear brackets from the front axle carrier (27). | *BA33.10-P-1001-01I | |
| *BA33.10-P-1003-01I | |||
| 55 | Remove front screws (31) and screws (30) and remove front brackets from the front axle carrier (27). | *BA33.10-P-1001-01I | |
| *BA33.10-P-1002-01I | |||
| 56 | Lower front axle carrier (27) with the engine transmission unit. | ||
| 000 588 03 62 00 Lifting platform | The engine transmission unit must not be in contact with body panels. Otherwise damage will occur. Do not crush or kink or subject lines to tension. Otherwise, the lines will be damaged. |
WS01.00-P-0091A | |
| 57 | Install in the reverse order. | ||
| Concluding tasks | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 58 | Perform engine test run. While doing so, check engine for proper operation and leak tightness. | ||
| 59 | Perform wheel alignment measurement. | AR40.20-P-0200ME |
