Remove/Install Front Axle Level Sensor - AR82.10-P-0006ME

Model 167

With Code 489 (AIRMATIC Dual Control/semi-active air suspension)

Model 167

With Code 613 (headlights left-hand-traffic)

Model 167

With Code 620 (Right-hand traffic headlamps)

Model 167

With Code 631 (Static LED headlamps, left-hand traffic)

Model 167

With Code 632 (Headlamps, LED, static, right-side traffic)

Model 167

With Code 640 (SAE dynamic LED headlamps, right-hand traffic)

Model 167

With Code 641 (Dynamic LED headlamps, left-hand traffic)

Model 167

With Code 642 (Dynamic LED headlamps, right-hand traffic)

MODIFICATION NOTES

19.06.2020

Remove left or right front wheel.

Operation step 2.

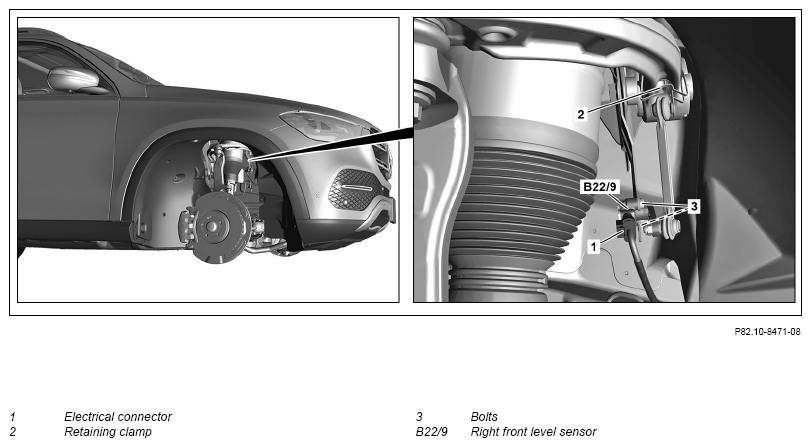

Fig 1: Front Axle Level Sensor Components Location - Model 167 With Code 489, 613, 620, 631, 632, 640, 641, 642 (Shown On Right Side)

Courtesy of MERCEDES-BENZ USA

Shown on right side of vehicle

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Remove/install
1	Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
2	Remove left or right front wheel.		AR40.10-P-1102ME
3	Release and disconnect electrical connector (1) from left front level sensor (B22/8) or right front level sensor (B22/9).	The number of level sensors per axle varies depending on the vehicle equipment. Pay attention to installation position.
4	Remove retaining clamp (2) from upper transverse control arm.	Do not twist left front level sensor (B22/8) or right front level sensor (B22/9).
		Pay attention to installation position.
5	Remove screws (3) and remove left front sensor (B22/8) or right front level sensor (B22/9).	Do not twist left front level sensor (B22/8) or right front level sensor (B22/9). Pay attention to installation position.
		Bolt/nut, level sensor to retaining plate	*BA82.10-P-1002-01B
6	Install in the reverse order.
	Calibrate
7	Calibrate left front level sensor (B22/8) or right front level sensor (B22/9) using diagnostic system.	When replacing left front level sensor (B22/8) or right front level sensor (B22/9).
			AD00.00-P-2000-06ME
	Check
8	Check headlamp adjustment and correct if necessary.	When replacing left front level sensor (B22/8) or right front level sensor (B22/9).
			AP82.10-P-8260Q

FRONT AXLE LEVEL SENSOR

Number	Designation		Model 167
BA82.10-P-1002-01B	Bolt/nut, level sensor to retaining plate	Nm	5
