Remove/Install Steering Coupling - AR46.10-P-8000ME

Model 167

G15038246Courtesy of MERCEDES-BENZ USA

Shown with engine 264.9

WARNING Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities. No parts of the body or limbs should be within the operating area of mechanical components when moving components. AS00.00-Z-0009-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
Notice  Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
Notice  Evaluating steering gear when repairing accident vehicles   AH46.20-P-9409-01A
  Notes on safety-relevant components   AH00.00-Z-0019-01A
REMOVINGINSTALLING Remove/install
1 Deactivate easy entry and exit feature. Model 167
with code 275 (Memory Package (driver's seat, steering column and mirror))

2 Turn steering wheel to center position (front wheels in straight-ahead position) and fix steering wheel in place using holding device. NOTES
Do not twist steering wheel when steering coupling (1) is removed.
Otherwise the clock spring contact will be destroyed.
SPECIAL TOOL Retainer device
Fig 1
3 Detach ground line of on-board electrical system battery.   AR54.10-P-0003ME
4.1 Remove air filter housing. Model 167 with engine 256, 264, 654, 656
    Model 167 with engine 256.9 AR09.10-P-1150MSC
    Model 167 with engine 264 AR09.10-P-1150MRK
    Model 167 with engine 654 AR09.10-P-1150OLM
    Model 167 with engine 656 AR09.10-P-1150OID
4.2 Remove engine cover. Model 167 with engine 176, 177
REFER TO MAINTENANCE   Model 167 with engine 176 AP01.10-P-2405-01M
REFER TO MAINTENANCE   Model 167 with engine 177 AP01.10-P-2405-01E

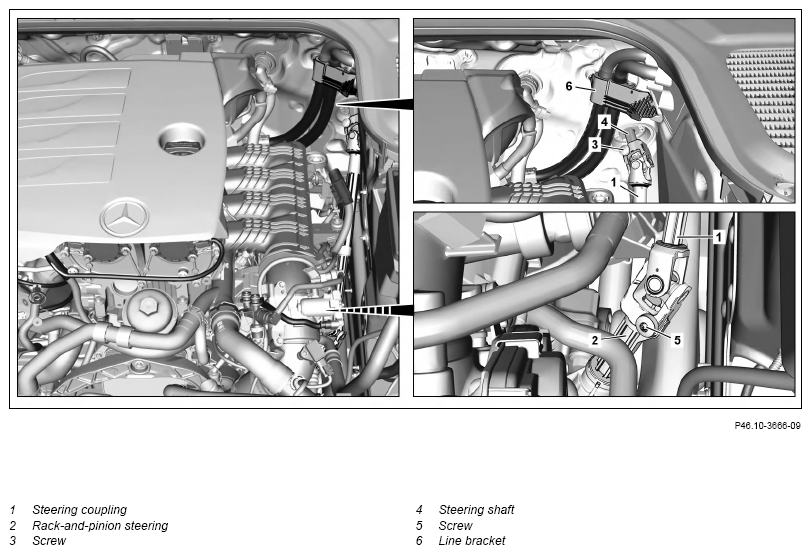

5 Unclip line bracket (6) and push to one side with electric lines until the screw (3) is accessible. Model 167 with engine 264, 654, 656
6 Remove bolt (3) TORQUE SPECIFICATION Bolt, steering coupling to steering shaft *BA46.10-P-1001-01J
7 Remove the engine compartment lining at the front and in the center. Model 167 with engine 176, 177
      AR61.20-P-1105ME
8 Remove screw (5). TORQUE SPECIFICATION Bolt, steering coupling to rack-and-pinion steering *BA46.10-P-1002-01J
9 Detach steering coupling (1) from rack-and-pinion steering (2). Turn steering gear to center position AR46.20-P-0500-01ME
    NOTES
Do not use force (hammer blows, excessive leverage).
Otherwise the rack-and-pinion steering (2) will be damaged.
INSTALLATION IMPORTANT The rack-and-pinion steering (2) must be in the center position in order to install the steering coupling (1).

10 Detach steering coupling (1) from steering shaft (4).
11 Remove steering coupling (1).
12 Install in the reverse order.
STEERING SHAFT

Number Designation Model 167
BA46.10-P-1001-01J Bolt, steering coupling to steering shaft Nm 42
STEERING SHAFT

Number Designation Model 167
BA46.10-P-1002-01J Bolt, steering coupling to rack-and-pinion steering Nm 42
Fig 1: Identifying Retainer Device (129 589 01 21 00)
G12078799Courtesy of MERCEDES-BENZ USA
