Remove/Install Exhaust System - AR49.10-P-7142MNO

Model 167 With Engine 176, 177

Courtesy of MERCEDES-BENZ USA

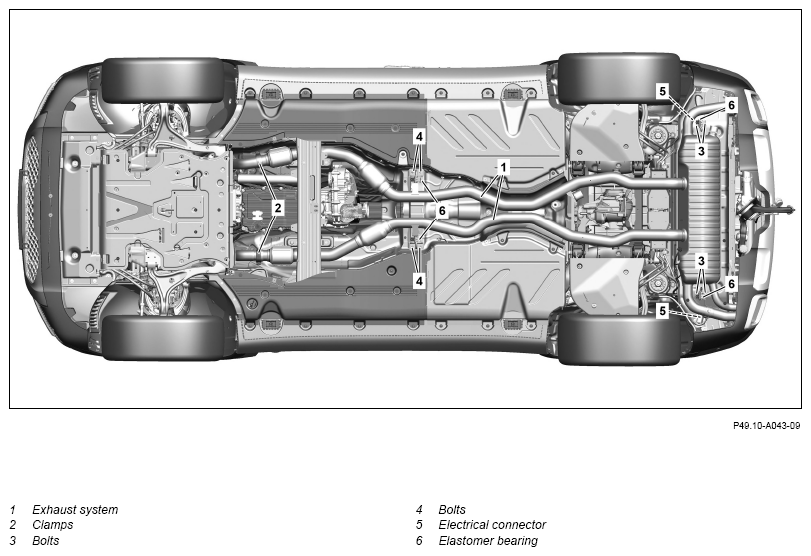

Shown on model 167.9 without code 598 (gasoline particulate filter (GPF) with sensor system)

Courtesy of MERCEDES-BENZ USA

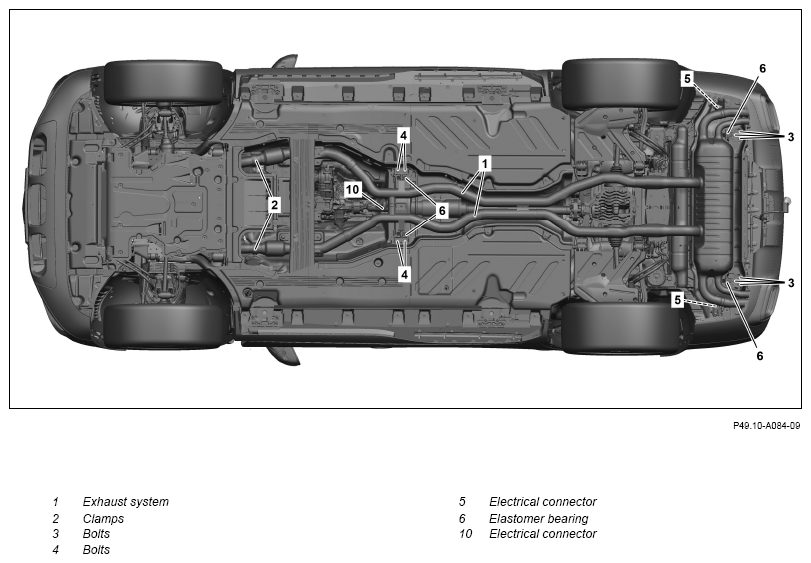

Shown on model 167.9 with engine 177 With Code U78 (AMG Sport exhaust system)

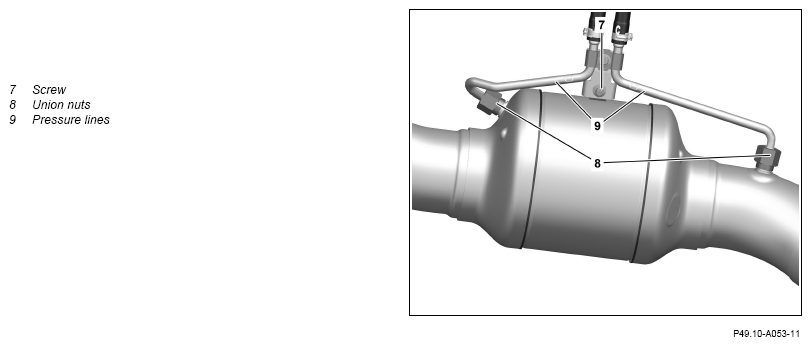

Shown on left gasoline particulate filter With Code 598 (gasoline particulate filter (GPF) with sensor system)

Courtesy of MERCEDES-BENZ USA

	Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone.	AS49.00-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Remove/install
1	Remove the rear engine support.	Engine 176 in model 167	AR22.10-P-4360MNO
		Engine 177 in model 167	AR22.10-P-4360MNP
		Only install lower center and rear engine compartment lining again after leak test.
2	Remove screw (7).	Engine 176 in model 167 with code 598 (Gasoline particulate filter (GPF) with sensor system) Perform operation step at both gasoline particulate filters.
		Bolt, holder to gasoline particulate filter	*BA49.10-P-1012-02W
3	Unscrew union nuts (8), seal exposed openings with suitable stop plugs and place pressure lines (9) to one side.	Engine 176 in model 167 with code 598 (Gasoline particulate filter (GPF) with sensor system)
	Note on calculation of tightening torque when using insertion or socket tools with various effective lengths		AH00.00-P-0015-01CW
		Perform operation step at both gasoline particulate filters.
		Union nut, pressure line to gasoline particulate filter	*BA49.10-P-1013-02W
		Tool kit	Fig 1
		Record plug	Fig 2
4	Remove clamps (2).	Replace seals.
		Engine 176 in model 167Clamp, front exhaust system to center exhaust system	*BA49.10-P-1006-02W
		Engine 177 in model 167Clamp, front exhaust system to center exhaust system If the clamps (2) are damaged or weakened by corrosion, ↓ Replace clamps (2).	*BA49.10-P-1005-02E
5	Release, disconnect electrical connectors (2) and remove wiring harness from exhaust system (1).	The number of electrical connectors (5) varies depending on the vehicle equipment.
6	Release, disconnect electrical connector (10) and remove wiring harness from exhaust system (1).	Engine 177 in model 167 with code U78 (AMG sports exhaust system)
7	Remove screws (3) and support exhaust system (1) in the rear area.
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate		WS26.00-P-3309B
		Engine 177 in model 167Nut holder/screw, elastomer bearing for rear exhaust system to frame floor assembly	*BA49.10-P-1017-02E
		Engine 176 in model 167Bolt, bracket for suspension for rear exhaust system to body	*BA49.10-P-1010-02W
8	Remove screws (4) and lower exhaust system (1) in the front area and remove it.	Aid of helper required.
		Engine 176 in model 167Bolt, center exhaust system to holder for elastomer bearing	*BA49.10-P-1007-02W
		Engine 177 in model 167Bolt, holder for decoupling element to front exhaust system	*BA49.10-P-1022-02E
9	Remove combustion and corrosion residues.
10	Check elastomer bearings (6) for damage.	If the elastomer bearings (6) are damaged, ↓ Replace corresponding elastomer bearings (6).
		Lubricant, rubber assembly 1 L	*BR00.45-Z-1010-06A
11	Install in the reverse order.
12	Check installation position and clearance of exhaust system (1) and correct if necessary.
13	Read out and delete fault memory.
			AD00.00-P-2000-06ME
	Check
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
14	Perform engine test run; check engine for proper operation and check exhaust system (1) for leak tightness.
15	Install bottom center and rear engine compartment paneling.		AR61.20-P-1105ME

Fig 1: Identifying Tool Kit (000 589 10 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
