Remove/Install Shield At Transmission - AR27.40-P-0700-01GZ
Transmission 722.9 in model 164, 166, 251
Transmission 722.9, 725.0 in model 292
Transmission 724.2 in model 166
Transmission 725.0 in model 166, 167
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.10-P-1009-04H | Screw/bolt, heat shield to oil pan | Nm | 9 |
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 724.2 | |
|---|---|---|---|
| BA27.10-P-1013-04G | Bolt, heat shield to sprag | Nm | 9 |
HOUSING
| Number | Designation | Transmission 722.9 | |
|---|---|---|---|
| BA27.40-P-1014-01A | Bolt, heat shield to transmission housing | Nm | 9 |

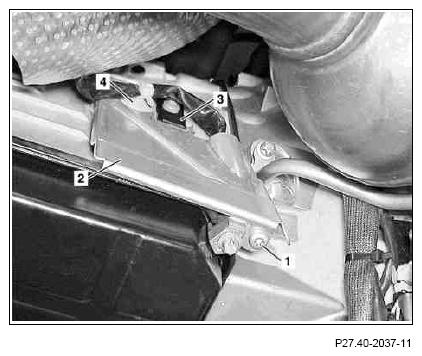

Shown on TRANSMISSION 722.9
- Remove bolt (1) and remove heat shield (2) downward.
Transmission 722.9 in model 164, 166, 251, 292
.
Transmission 724.2 in model 166
Transmission 725.0 in model 166, 167, 292
- Press cable holder (4) out of heat shield (2) and remove heat shield (2).
When replacing the transmission, transfer the leaf spring (3).
The heat shield (2) must be located below the leaf spring (3).
- Install in the reverse order.
