Remove/Install Rear Engine Support - AR22.10-P-4360MNP
Engine 177 In Model 167
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove rear engine compartment lining. | AR61.20-P-1105ME | |
| 2 | Remove side underfloor paneling. | AR61.30-P-1001ME | |
| 3 | Support the automatic transmission. | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||

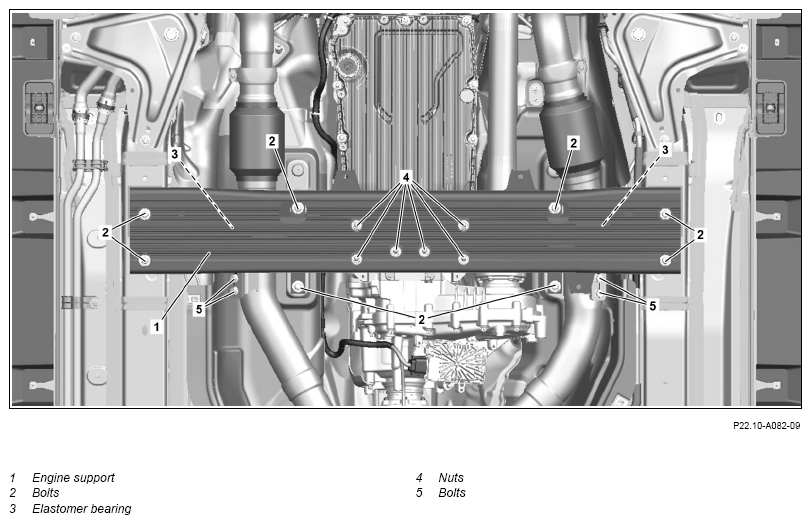

| 4 | Remove nuts (4). | *BA22.10-P-1004-03G | |
| 5 | Remove bolts (5). | *BA49.10-P-1022-02E | |
| 6 | Unscrew screws (2) and remove engine carrier (1). | Never use an impact wrench or pneumatic tools to remove/screw in screws (2). Otherwise, the threads will be damaged. |
*BA22.10-P-1005-03G |
| 7 | Remove brackets with the elastomer bearings (3) from the engine carrier (1). | When installing new engine carrier (1). |
*BA49.10-P-1023-02E |
| 8 | Install in the reverse order. |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA22.10-P-1004-03G | Bolt/nut, rear engine mount to rear engine crossmember | Nm | 50 |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA22.10-P-1005-03G | Bolt, rear engine crossmember to body | Nm | 50 |
EXHAUST SYSTEM
| Number | Designation | Engine 177 in model 167 | ||
|---|---|---|---|---|
| BA49.10-P-1022-02E | Bolt, holder for decoupling element to front exhaust system | M8 | Nm | 20 |
EXHAUST SYSTEM
| Number | Designation | Engine 177 in model 167 | ||
|---|---|---|---|---|
| BA49.10-P-1023-02E | Nut, decoupling element for front exhaust system to bracket | M8 | Nm | 23 |
