Disconnect/Connect Engine Wiring Harness To Remove Engine - AR15.18-P-1000-05MNO
Engine 176, 177 In Model 167
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | AH00.00-Z-0300-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on battery | AH54.10-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A |
COMPLETE TRANSFER CASE
| Number | Designation | Model 167 with engine 176, 177, 254, 256, 274, 656 except code 430 Model 167 with engine 654 with code M006/ME05/ME10 except code 430 | Model 167 with code 430 | ||
|---|---|---|---|---|---|
| BA28.10-P-1007-01I | Screw, shield to transfer case | M8 | Nm | 35 | 35 |
FUSE AND RELAY BOX
| Number | Designation | Model 167 | ||
|---|---|---|---|---|
| BA54.15-P-1001-01L | Nut, positive line to engine compartment/vehicle interior pre-fuse box | M6 | Nm | 8 |
| M8 | Nm | 16 | ||
- Remove cover of right air duct.
- Remove air duct seal (9).
- Release and disconnect electrical connector (1) and place connector couplings outside of working area.
- Release and disconnect the electrical connector (2).
- Unclip electric line of electrical connector (2) and place to one side.
- Remove nut of electric line (3) from 48 V on-board electrical system fuse box in engine compartment (F153/2) and place electric line (3) to one side.
.
- Remove cover (5).
- Release and disconnect electrical connector (6).
- Remove nuts (7).
- Release and disconnect electrical connector (8).
- Guide previously removed electrical wiring harnesses out of air duct.

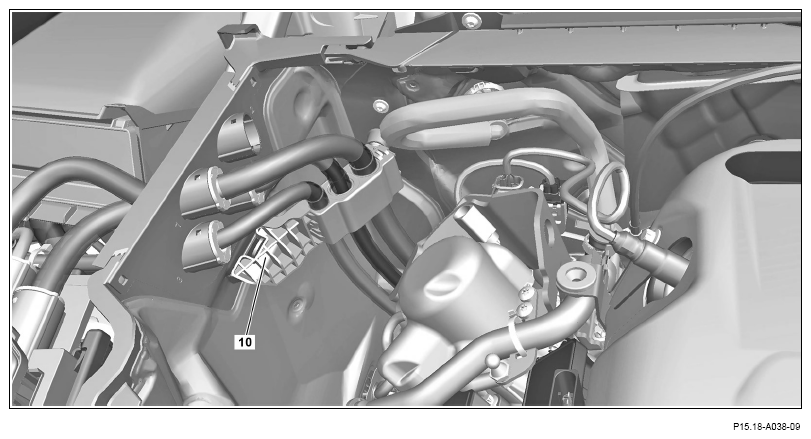

- Remove bracket (10) from body and secure electrical wiring harnesses to engine.

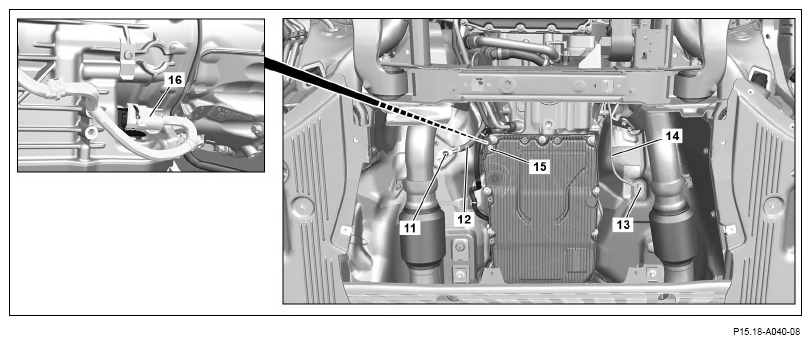

- Remove nut (11), remove electric line (12) from grub screw and fasten outside of working area.
- Remove nut (13), remove electric line (14) from grub screw and fasten outside of working area.
- Remove screw (15).
- Remove electrical wiring harness from heat shield and remove heat shield.
- Release and disconnect electrical connector (16) and fasten outside of working area.
- Unscrew screws (17) and remove heat shield (18).
- Release and disconnect electrical connectors (20, 21) on transfer case (19).
- Remove electrical wiring harness (22) from transfer case (19).
- Connect in reverse order.
