Remove/Install Front Stabilizer Bar - AR32.35-P-2200ME

Model 167

Except Code 489 (AIRMATIC Dual Control/semi-active air suspension)

Except Code 490 (Electrohydraulic suspension)

Model 167

With Code 489 (AIRMATIC Dual Control/semi-active air suspension)

Except Code 490 (Electrohydraulic suspension)

05.03.2021

Document completely revised, code 465 (Electric active roll stabilization (EARS)) added.

Courtesy of MERCEDES-BENZ USA

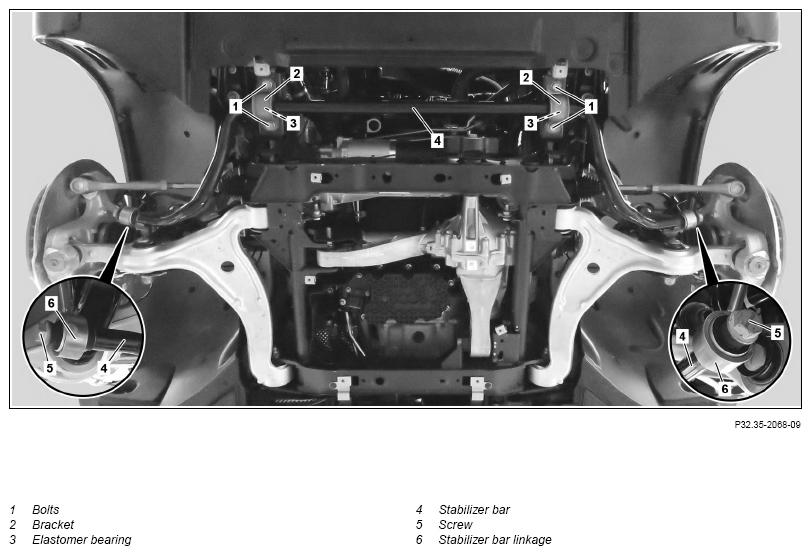

Shown without code 465 (Electric active roll stabilization (EARS))

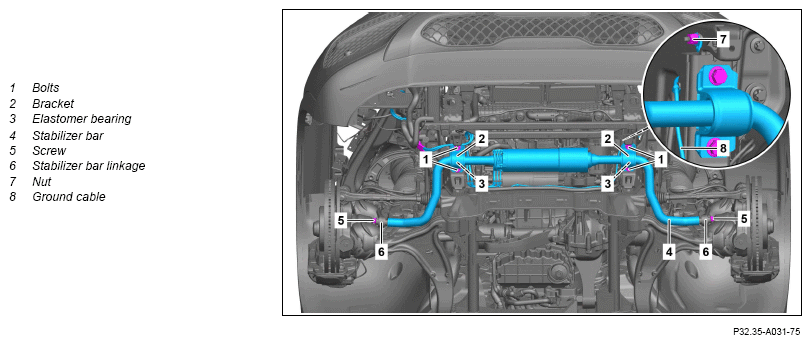

Shown With Code 465 (Electric active roll stabilization (EARS))

Shown With Code 465 (Electric active roll stabilization (EARS))

Courtesy of MERCEDES-BENZ USA

Shown With Code 465 (Electric active roll stabilization (EARS))

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Evaluation of elastomer bearings		AH00.10-P-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install

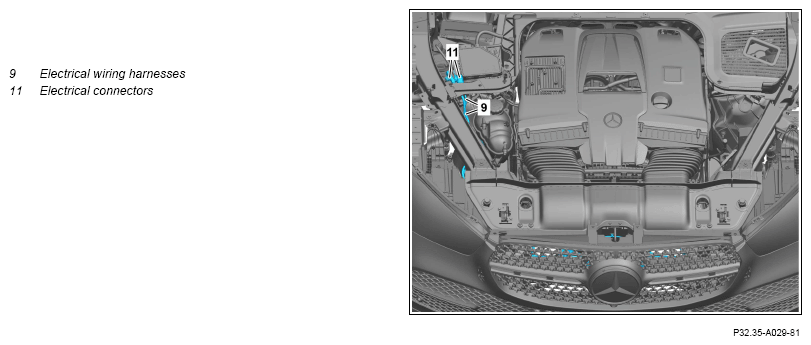

1	Open hood and remove covers over right suspension strut.	Model 167 with code 465 (Electric Active Roll Stabilization (EARS)) with code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 490 (Electrohydraulic suspension)
2	Release and disconnect electrical connectors (11).	Model 167 with code 465 (Electric Active Roll Stabilization (EARS)) with code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 490 (Electrohydraulic suspension)
3	Remove front wheel and tire assemblies.		AR40.10-P-1102ME
4	Remove right front fender liner.	Model 167 with code 465 (Electric Active Roll Stabilization (EARS)) with code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 490 (Electrohydraulic suspension)
			AR88.10-P-1301ME
5	Remove center engine compartment lining.		AR61.20-P-1105ME
6	Unscrew screws (5) and remove torsion bar linkage (6) at left and right from stabilizer bar (4).
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
		Remove torsion bar linkage (6) carefully; stabilizer bar (4) is under tension.
		Bolt, stabilizer rod to stabilizer	*BA32.35-P-1002-02D
7	Remove nut (7) and expose ground line (8).	Model 167 with code 465 (Electric Active Roll Stabilization (EARS)) with code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 490 (Electrohydraulic suspension)
		Dismantling tool	Fig 2

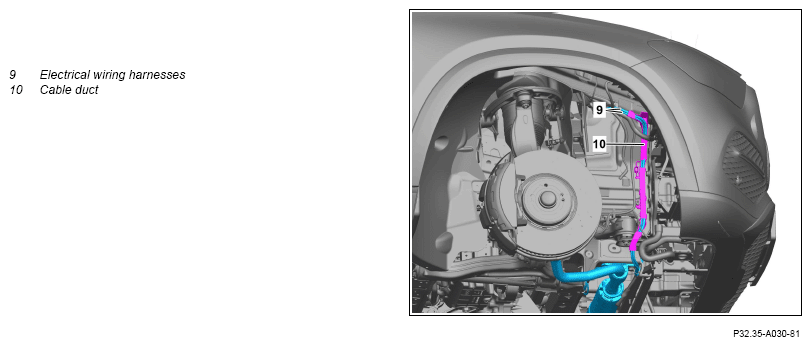

8	Remove electrical wiring harnesses (9) from cable duct (10) and expose.	Model 167 with code 465 (Electric Active Roll Stabilization (EARS)) with code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 490 (Electrohydraulic suspension)
		Dismantling tool	Fig 2
9	Unscrew screws (1) and remove holders (2) and stabilizer bar (4).	Bolt, stabilizer bracket/stabilizer to front axle carrier	*BA32.35-P-1001-02D
	Check
10	Check elastomer bearings (3) and stabilizer bar (4) for damage.	If damage is found, ↓ replace corresponding component part.
11	Install in the reverse order.

Number	Designation		Model 167 except code 490 (Electrohydraulic suspension)
BA32.35-P-1001-02D	Bolt, stabilizer bracket/stabilizer to front axle carrier	Nm	100

Number	Designation			Model 167 except code 490 (Electrohydraulic suspension)
BA32.35-P-1002-02D	Bolt, stabilizer rod to stabilizer	Stage 1	Nm	80
		Stage 2	∠°	90
