Remove/Install Engine With Front Axle Carrier - AR01.10-P-2500MNI

Engine 177 in model 290

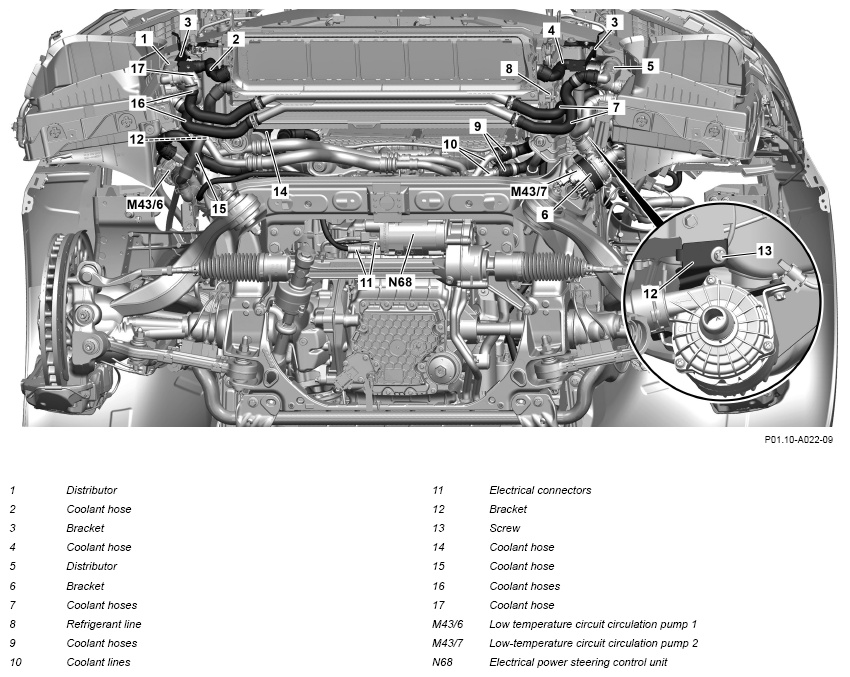

G16557036Courtesy of MERCEDES-BENZ USA

Shown without code ME10 (Hybrid vehicle (plug-in, PHEV))

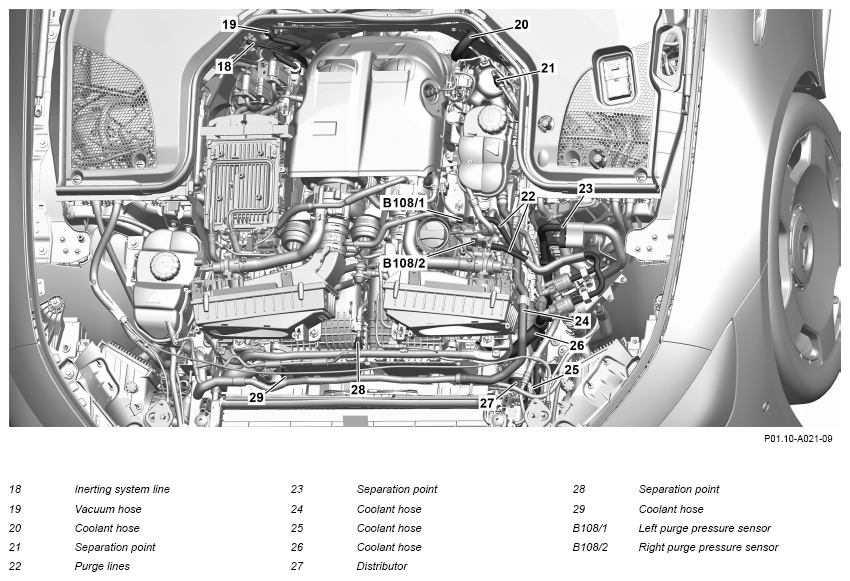

G16557037Courtesy of MERCEDES-BENZ USA

Shown without code ME10 (Hybrid vehicle (plug-in, PHEV))

Shown without code ME10 (Hybrid vehicle (plug-in, PHEV))

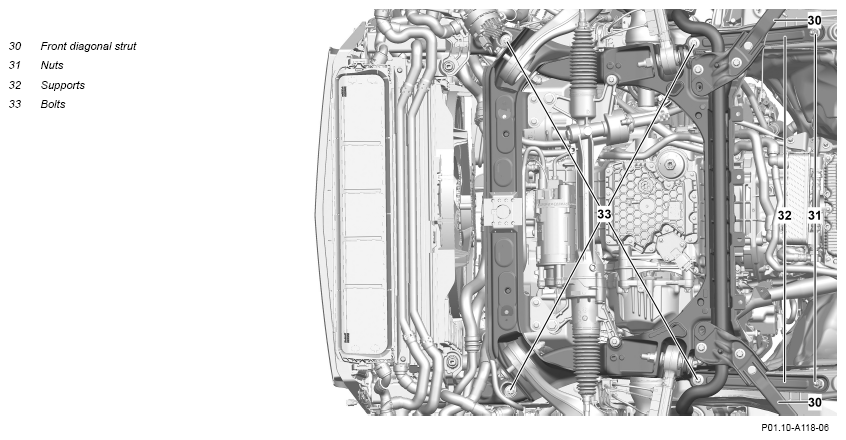

G16557038Courtesy of MERCEDES-BENZ USA

Shown with code ME10 (Hybrid vehicle (plug-in, PHEV))

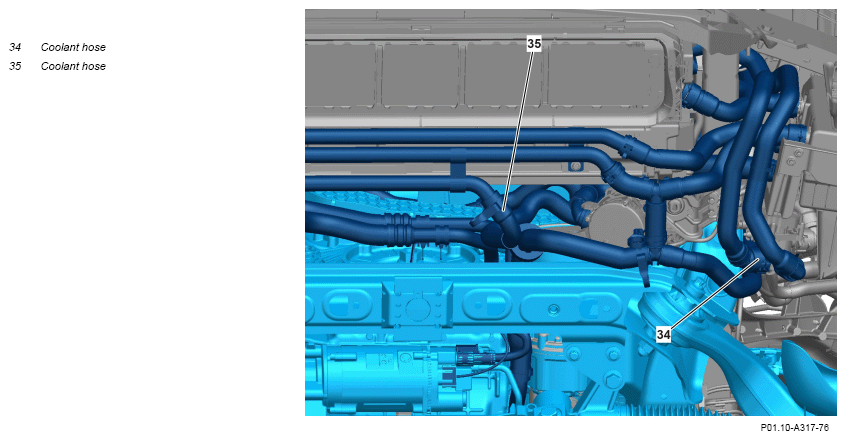

G16557039Courtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of fire  due to ignition of R1234yf refrigerant on hot components. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion  due to formation of ignitable refrigerant/air mixtures Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. AS83.00-Z-0007-01A
DANGER Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only.
Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A
DANGER Risk of explosion  caused by fuel igniting. Risk of injury  to skin and eyes caused by fuel spraying out at high pressure Keep all ignition sources out of hazard area.
Do not carry out any work on system when it is pressurized.
AS07.16-Z-0001-01A
WARNING Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities. No parts of the body or limbs should be within the operating area of mechanical components when moving components. AS00.00-Z-0009-01A
WARNING Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant. Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers.
Wear protective gloves, protective clothing and safety glasses.
AS20.00-Z-0001-01A
WARNING Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
Notice  Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
Notice  Notes on coolant   AH20.00-P-2080-01KOA
Notice  Procedure for a damaged or leaky air conditioning system   AH83.30-P-0004-01KOA
Notice  Protect air conditioning circuit and components from moisture when carrying out repair work   AH83.30-P-0005-01KOA
Notice  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notice  General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment   AH00.00-Z-0300-01A
Notice  Notes on AIR BODY CONTROL Engine 177 in model 290
with code 489 (AIR BODY CONTROL)
AH32.22-P-1000-03LWO
Notice  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
Notice  Notes on bolted connections with self tapping screws   AH00.00-P-0007-01SF
Notice  Information on influencing load ratios when removing major assemblies   AH00.60-P-0001-01A
  Notes on handling refrigerant R1234yf   AH83.30-P-0003-02A
  General information on work on gasoline direct injection system   AH07.00-P-2000-01A
  Use of engine no. when installing reconditioned engines and factory-new replacement engines or crankcases   AH01.10-P-0001-01A
  Notes on repair work on suspension components   AH00.00-P-0100-01A
REMOVINGINSTALLING Remove/install
1 Deactivate easy entry and exit feature.
2 Turn wheel and tire assembly of front axle to straight-ahead position and fix steering wheel in place with holding device. NOTES
Do not turn steering wheel when steering coupling is removed.
Otherwise, the clock spring contact will be damaged.

    SPECIAL TOOL Retainer device Fig 2
3 Move automatic transmission to neutral position and release parking brake.
4 Vent pressure from air springs using diagnostic system. Model 290 with engine 177
with code 489 (AIR BODY CONTROL)

REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-06FR
5 Perform power disable of the high-voltage onboard electrical system. Engine 177.8 in model 290.679 AR47.70-P-1000FRH
6 Remove ground line from battery.   AR54.10-P-0003FR
7 Secure vehicle on vehicle lift.   AR00.60-P-0100-01A
    SPECIAL TOOL Vehicle hoist securing tool Fig 6
8 Discharge air conditioning system.   AR83.30-P-1760FR
9 Remove wheel and tire assembly from front axle.   AR40.10-P-1102A
10 Remove front bumper.   AR88.20-P-2000FR
11 Unscrew the center bolts of the front axle shafts. Model 290 with engine 177 with transmission 725.0
with code M005 (Vehicles with 4MATIC/all-wheel drive)
AR33.30-P-0620MNI
12 Drain off coolant of the engine cooling system. INSTALLATION IMPORTANT Only install lower engine compartment paneling after a leak test. AR20.00-P-1142FR
13 Drain coolant of low-temperature circuit. INSTALLATION IMPORTANT Only install upper engine cover after the leak test. AR09.41-P-6834MNI
14 Drain engine oil.
REFER TO MAINTENANCE     AP18.00-P-0101DD
15 Remove propeller shaft.   AR41.10-P-0050MNI
16 Remove coolant hose from automatic transmission oil cooler and place to one side. Engine 177 in model 290 with transmission 725.0 with code ME10 (Hybrid vehicle (plug-in, PHEV)) AR27.55-P-1000MNI
17 Release and disconnect electrical connection of left and right RPM sensors.   AR42.30-P-0713FRX
18 Unclip the electric lines of the RPM sensors from the spring links and steering knuckles and put the electric lines to the side.   AR42.30-P-0713FRX
19 Unclip electric lines of right wear indicator from spring links and steering knuckles and place to one side.   AR42.30-P-0713FRX
20 Release and disconnect electrical connections at the suspension struts. Model 290 with engine 177
with code 489 (AIR BODY CONTROL)
AR32.25-P-1017FRA
    Model 290 with engine 177
except code 489 (AIR BODY CONTROL)
AR32.25-P-1017FR
21 Unclip electric lines of suspension struts from spring links and steering knuckles and place to one side.
22 Remove brake calipers from steering knuckles, secure with connected brake hoses to vehicle so that they are free of tension and secure against falling down. Engine 177 in model 290
with code B07 (AMG - ceramic brake system)
with code ME10 (Hybrid vehicle (plug-in, PHEV))
AR42.10-P-0070LSE
    Model 290 with engine 177
with code B07 (AMG - ceramic brake system)
except code ME10 (Hybrid vehicle (plug-in, PHEV))
AR42.10-P-0070FRK
    Model 290 with engine 177
with code B06 (Silver brake calipers)
except code B07 (AMG - ceramic brake system)
Model 290 with engine 177
with code U69 (Brake calipers painted yellow)
except code B07 (AMG - ceramic brake system)
Model 290 with engine 177
with code U70 (red-painted brake callipers)
except code B07 (AMG - ceramic brake system)
AR42.10-P-0070FRX
23 Remove coolant hose (2) from additional cooler.   AR20.20-P-7441-01RQ
24 Remove coolant hoses (16) from wheel arch cooler. Engine 177 in model 290
with code M014 (Engine uprated)

      AR20.20-P-7441-01RQ
25 Remove coolant hose (17) from distributor (1). Engine 177 in model 290
with code M014 (Engine uprated)

      AR20.20-P-7441-01RQ
26 Remove coolant hose (34) from low temperature regulation valve. Engine 177 in model 290
with code ME10 (Hybrid vehicle (plug-in, PHEV))

      AR20.20-P-7441-01RQ
27 Remove coolant hose (35) distributor fitting. Engine 177 in model 290
with code ME10 (Hybrid vehicle (plug-in, PHEV))

    SPECIAL TOOL Hose clamp pliers Fig 3
28 Remove coolant hose (15) from additional cooler.   AR20.20-P-7441-01RQ
29 Remove coolant hose (15) from low-temperature circuit circulation pump 1 (M43/6).   AR20.20-P-7441-01RQ
30 Unclip the distributor (1).
31 Remove coolant hose (14) from cooler.   AR20.20-P-7441-01RQ
32 Remove coolant hoses (9) from coolant lines (10). Engine 177 in model 290
except code ME10 (Hybrid vehicle (plug-in, PHEV))

      AR20.20-P-7441-01RQ
33 Remove coolant hose (4) from additional cooler.   AR20.20-P-7441-01RQ
34 Remove coolant hoses (7) from distributor (5).   AR20.20-P-7441-01RQ
35 Unclip the distributor (5). Engine 177 in model 290
except code ME10 (Hybrid vehicle (plug-in, PHEV))

36 Remove refrigerant line (8) from condenser and seal openings with suitable stop plugs.   AR83.30-P-6540FRX
    SPECIAL TOOL Record plug Fig 4
37 Detach oil lines from the oil cooler.   AR18.30-P-1000MNI
38 Remove fan unit.   AR20.40-P-5050MNI
39 Mount protective plate on cooler.
REFER TO SHOP-MADE TOOLS Guard plate for radiator/condenser   WF58.50-P-0110-01A
40 Remove coolant hose (25) from distributor (27).   AR20.20-P-7441-01RQ
41 Remove coolant hose from return line on left charge air cooler. Engine 177 in model 290
with code ME10 (Hybrid vehicle (plug-in, PHEV))

      AR20.20-P-7441-01RQ
42 Remove distributor (27) from cooler. Engine 177 in model 290
except code ME10 (Hybrid vehicle (plug-in, PHEV))

      AR20.20-P-7441-01RQ
43 Remove coolant hose (26) from switchover valve. Engine 177 in model 290
except code ME10 (Hybrid vehicle (plug-in, PHEV))

      AR20.20-P-7441-01RQ
44 Remove coolant hose (29) from charge air cooler.   AR20.20-P-7441-01RQ
45 Remove coolant hose from coolant suction nozzle.   AR20.10-P-2461MNI
46 Remove bleed line from connecting point (28).   AR20.20-P-7441-01RQ
47 Remove coolant hose (20) from heat exchanger.   AR20.20-P-7441-01RQ
48.1 Remove holder for the low-temperature circuit expansion reservoir. Engine 177.9 in model 290 AR09.41-P-0017MNI
48.2 Remove the oil separator. Engine 177.8 in model 290 AR01.20-P-9750LSE
49 Remove coolant hose (24) and place to one side.   AR20.20-P-7441-01RQ
50 Remove fuel pressure via the service connection.   AR07.03-P-1460-04MNI
    TORQUE SPECIFICATION Dust protection cap to service connection *BA07.03-P-1005-01H
    SPECIAL TOOL Pressure hose Fig 7
51 Disconnect fuel feed hose from connection (21).
  Note on calculation of tightening torque when using insertion or socket tools with various effective lengths   AH00.00-P-0015-01CW
    TORQUE SPECIFICATION Union nut, fuel hose to diagnostic socket/fuel line *BA07.03-P-1006-01H
    SPECIAL TOOL Box wrench bit Fig 5
52 Disconnect refrigerant lines from connection (23) and close openings with suitable stop plugs. INSTALLATION IMPORTANT Replace sealing rings.
    TORQUE SPECIFICATION Nut/bolt, connecting point for refrigerant line *BA83.30-P-1004-01S
    SPECIAL TOOL Record plug Fig 4
53 Remove purge lines (22) from left purging pressure sensor (B108/1) and right purging pressure sensor (B108/2) and place to one side.
54 Disconnect inerting system line (18) from bulkhead and put to side. Model 290 with engine 177
with code 2U8 (Alternative refrigerant)

      AR86.10-P-0119FRX
55 Release and remove vacuum hose (19). Engine 177 in model 290
except code ME10 (Hybrid vehicle (plug-in, PHEV))

56 Insert crossmember above cooler and finger-tighten with two screws.
57 Secure cooler unit against falling.
58 Remove engine wiring harness for removal of engine and place to one side.   AR15.18-P-1000-05MNI
    TORQUE SPECIFICATION Nut, positive line to busbar on firewall *BA54.18-P-1001-02C
    TORQUE SPECIFICATION Bolt/nut, ground line to transmission/underfloor *BA00.19-P-1039-02D
59 Release and disconnect electrical connectors (11) of electric lines at electrical power steering control unit (N68).   AR46.20-P-0600FRX
60 Remove electric lines from rack-and-pinion steering and front axle carrier and place to one side.
61 Remove steering coupling from steering shaft.   AR46.10-P-8000-01FR
    SPECIAL TOOL Engine mount wrench set Fig 1
62 Remove holders of wheel arch coolers on left and right from front axle carrier. TORQUE SPECIFICATION M6x1 *BA00.10-P-1002-04A
63 Remove low-temperature circuit circulation pump 2 (M43/7) from holder (6) and place to one side with connected lines. Engine 177 in model 290
except code ME10 (Hybrid vehicle (plug-in, PHEV))

      AR09.41-P-6933MNI
64 Remove screw (13) and place the holder (12) of low-temperature circuit circulation pump 2 (M43/7) to one side. Engine 177 in model 290
except code ME10 (Hybrid vehicle (plug-in, PHEV))

    TORQUE SPECIFICATION M6x1 *BA00.10-P-1002-04A
65 Remove circulation pump 1 for low-temperature circuit (M43/6) and place to one side. Engine 177 in model 290
with code ME10 (Hybrid vehicle (plug-in, PHEV))

    TORQUE SPECIFICATION M6x1 *BA00.10-P-1002-04A
66 Remove holders (3). TORQUE SPECIFICATION Bolt, strut to soundproofing *BA62.30-P-1004-01H
67 Remove steering knuckles from upper transverse control arms.   AR33.25-P-0400FRX
68 Detach suspension struts from spring links. Model 290 with engine 177
with code 489 (AIR BODY CONTROL)
AR32.25-P-1017FRA
    Model 290 with engine 177
except code 489 (AIR BODY CONTROL)
AR32.25-P-1017FR
69 Remove front diagonal struts (30). Engine 177 in model 290
with code M005 (Vehicles with 4MATIC/all-wheel drive)
AR61.10-P-5141FRX
70 Support front axle with lifting platform and major assembly mount and secure entire engine-transmission unit with a tensioning strap against slipping and falling down.
REFER TO SPECIAL TOOLS 000 588 24 62 00 Major assembly mount   WS01.00-P-0253B
REFER TO SPECIAL TOOLS 000 588 25 62 00 Lift table   WS01.00-P-0264A
    IMPORTANT Ensure even alignment of major assembly mount.
71 Remove rear engine crossmember from frame floor assembly.   AR22.10-P-4360MNI
72 Unscrew screws (33) of the front axle carrier from the longitudinal members. TORQUE SPECIFICATION Bolt, front axle carrier to longitudinal member *BA33.10-P-1001-01Q
73 Remove nuts (31) and remove bracings (32). TORQUE SPECIFICATION Mount, support (strut) *BA33.10-P-1002-01Q
74 Lower engine-transmission unit with front axle carrier. NOTES
Ensure that engine does not touch any body panels or major assemblies and that no lines are pinched.
Otherwise damage will occur.

    IMPORTANT Aid of helper required.
75 Install in the reverse order.
76 Check oil level of engine and correct.
REFER TO MAINTENANCE     AP18.00-P-1812DKI
77 Perform wheel alignment measurement.   AR40.20-P-0200FRX
78 Read out and delete fault memory.
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-06FR
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes.
Do not touch hot or rotating parts.
AS00.00-Z-0005-01A
79 Carry out engine test run and check engine for proper operation and leak tightness.
80 Install lower engine compartment lining.   AR61.20-P-1105FRX
81 Install upper engine cover.
REFER TO MAINTENANCE     AP01.10-P-2405-01E
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143

Number Designation 8.8 10.9
BA00.10-P-1002-04A M6x1 Nm 9 13
GROUND POINTS

Number Designation Model 290
BA00.19-P-1039-02D Bolt/nut, ground line to transmission/underfloor M8 Nm 20
INJECTION NOZZLES, INJECTION VALVES, LINES

Number Designation Engine 177
BA07.03-P-1005-01H Dust protection cap to service connection Nm 1
INJECTION NOZZLES, INJECTION VALVES, LINES

Number Designation Engine 177
BA07.03-P-1006-01H Union nut, fuel hose to diagnostic socket/fuel line Nm 24
FRONT AXLE CARRIER

Number Designation Model 290
BA33.10-P-1001-01Q Bolt, front axle carrier to longitudinal member Nm 180
FRONT AXLE CARRIER

Number Designation Model 290
BA33.10-P-1002-01Q Mount, support (strut) Nm 110
WIRING HARNESS

Number Designation Model 290
BA54.18-P-1001-02C Nut, positive line to busbar on firewall M6 Nm 8
M8 Nm 17
CROSS MEMBER AND FRONT REINFORCEMENT

Number Designation Model 290
BA62.30-P-1004-01H Bolt, strut to soundproofing M8 Nm 20
AIR CONDITIONING

Number Designation Model 290
BA83.30-P-1004-01S Nut/bolt, connecting point for refrigerant line Nm 12
Fig 1: Identifying Engine Mount Wrench Set (001 589 01 16 00)
G16163131Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Retainer Device (129 589 01 21 00)
G16145172Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Hose Clamp Pliers (454 589 00 37 00)
G16163101Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Record Plug (129 589 00 91 00)
G16145354Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Box Wrench Bit (000 589 69 03 00)
G16145343Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Vehicle Hoist Securing Tool (171 589 01 31 00)
G16145138Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Pressure Hose (119 589 04 63 00)
G16145362Courtesy of MERCEDES-BENZ USA
