Remove/Install Inertization System Line In Engine Compartment - AR86.10-P-0119FRX

Model 290 with engine 177

with code 2U8 (Alternative refrigerant)

Courtesy of MERCEDES-BENZ USA

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove heat shield from exhaust gas turbocharger.		AR09.40-P-6044MNI

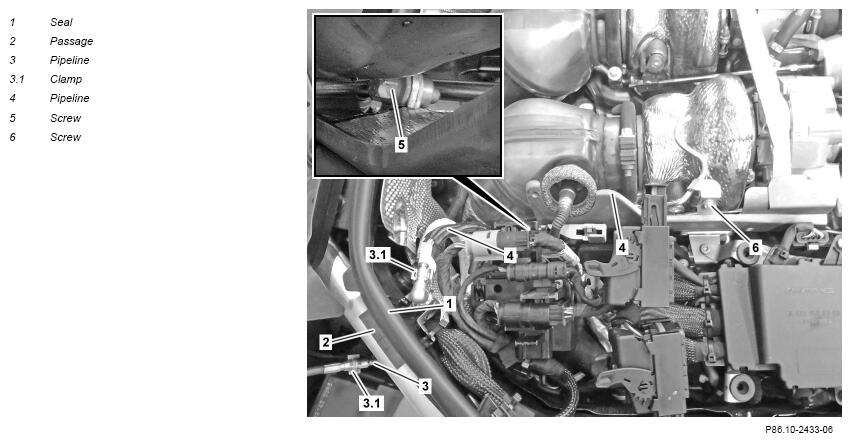

2	Open clamps (3.1) for piping (3).	: Replace clamps (3.1) for piping (3).
3	Take off seal (1).
4	Remove piping (3) together with the passage (2).
5	Remove piping (3) from passage (2).
6	Remove screw (5).	Pipe for inerting to engine	*BA86.10-P-1002-03E
7	Remove screw (6) and remove piping (4).	Pipe for inerting to engine	*BA86.10-P-1002-03E
	Check
8	Check piping (3, 4) for damage and plugging.	If there is a problem, ↓ Replace the piping (3, 4).
9	Install in the reverse order.

INERTING

Number	Designation					Model 290
BA86.10-P-1002-03E	Pipe for inerting to engine	M6	Screw		Nm	8
			Nut	Stage 1	Nm	-
				Stage 2	∠°	-
