Remove/Install Low-Temperature Circuit Coolant Expansion Reservoir Holder - AR09.41-P-0017MNI
Engine 177.9 in model 290

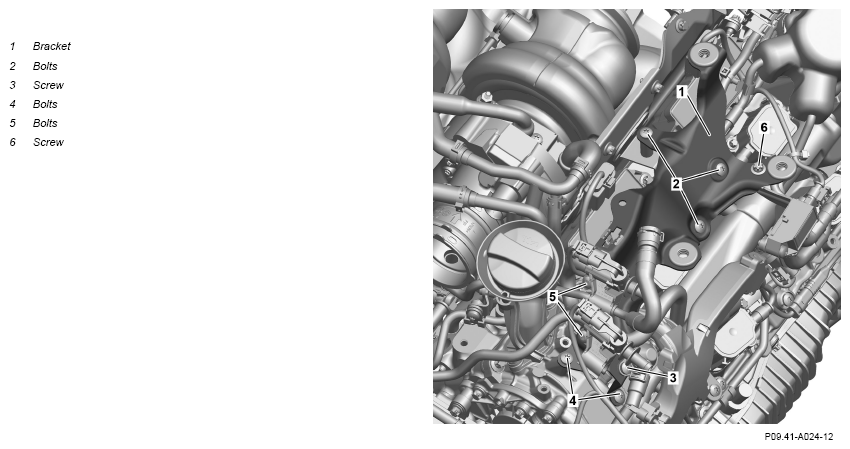

Shown on engine 177 with code 598 (Gasoline particulate filter (GPF) with sensor system)
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Remove coolant expansion reservoir for low-temperature circuit in upward direction out of the elastomer bearings and place to one side with lines attached. | AR09.41-P-0001MNI | |
| 2 | Unscrew the screws (5) on the brackets of the purge lines. | *BA00.10-P-1002-04A | |
| 3 | Unscrew the screw (3) on the non-return valve. | *BA00.10-P-1002-04A | |
| 4 | Remove screws (4) from bracket (1). | *BA00.10-P-1002-04A | |
| 5 | Remove screws (2) from bracket (1). | *BA00.10-P-1002-04A | |
| 6 | Unscrew screw (6) from bracket (1). | Engine 177.9 in model 290 with code 598 (Gasoline particulate filter (OPF) with sensor system) |
|
| *BA00.10-P-1002-04A | |||
| 7 | Pull the bracket (1) out upwards. | ||
| 8 | Install in the reverse order. |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6x1 | Nm | 9 | 13 |
