Remove/Install Rear Engine Support - AR22.10-P-4360MNI
Engine 177 in model 290
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notice | Notes on bolted connections with self tapping screws | AH00.00-P-0007-01SF | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Remove/install | |||

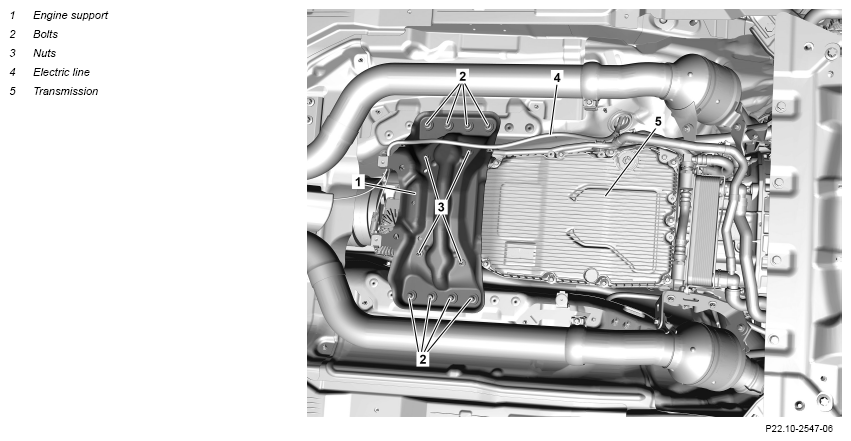

| 1 | Remove center and rear sections of lower engine compartment lining. | AR61.20-P-1105FRX | |
| 2 | Support transmission (5). | ||
| 000 588 24 62 00 Major assembly mount | WS01.00-P-0253B | ||
| 000 588 23 62 00 Mounting plate | WS26.00-P-0415B | ||
| 3 | Unclip electric line (4) from engine carrier (1). | ||
| 4 | Unscrew nuts (3). | *BA22.10-P-1004-03N | |
| 5 | Unscrew screws (2) and remove engine carrier (1). | In no case use impact wrenches or pneumatic tools to remove/screw in screws (2). Otherwise the threads can get damaged. |
*BA22.10-P-1005-03N |
| 6 | Install in the reverse order. |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 290 with engine 177 | ||
|---|---|---|---|---|
| BA22.10-P-1004-03N | Rear engine mount to engine support | M6 | Nm | 18 |
| M8 | Nm | 30 | ||
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 290 with engine 177 | |||
|---|---|---|---|---|---|
| BA22.10-P-1005-03N | Bolt, rear engine support to body | M10 | Stage 1 | Nm | 35 |
| Stage 2 | Nm | 50 | |||
