Remove/Install Rack-And-Pinion Steering - AR46.20-P-0600FRX
Model 290
MODIFICATION NOTES
| 11.07.2023 | Work procedure adapted. |
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Evaluating steering gear when repairing accident vehicles | AH46.20-P-9409-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Deactivate easy entry and exit feature. | Model 290 with code 275 (Memory Package (driver's seat, steering column and mirror)) |
|
| 2 | Move steering wheel forward and upward. | ||
| 3 | Turn steering wheel to center position (front wheels in straight-ahead position) and fix in place using holding device. | Do not turn steering wheel with steering coupling removed. Clock spring contact will otherwise be destroyed. |
|
| Fig 2 | |||
| 4 | Remove voltage of high-voltage on-board electrical system. | Model 290.679 | |
| AR47.70-P-1000FRH | |||
| 5 | Disconnect ground line from battery. | AR54.10-P-0003FR | |
| 6 | Remove front wheels. | AR40.10-P-1102A | |
| 7 | Remove rear and center engine compartment lining. | AR61.20-P-1105FRX | |
| 8 | Remove tie rods from steering knuckles. | AR46.40-P-0200FR | |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| 9 | Disconnect steering coupling from steering shaft. | AR46.10-P-8000-01FR | |

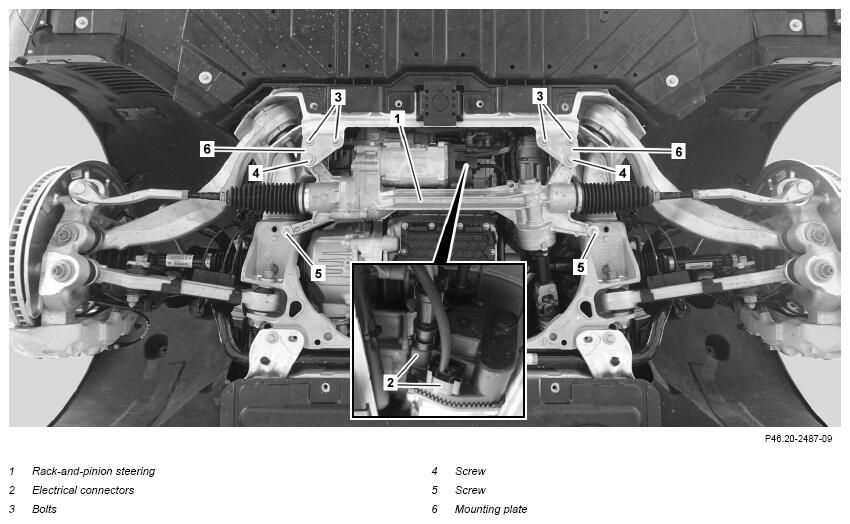

| Fig 1 | |||
| 10 | Release and disconnect electrical connectors (2). | ||
| 11 | Support rack-and-pinion steering (1) and secure against falling down. | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 000 588 11 62 00 Major assembly mount | Tensioning strap |
WS01.00-P-0092B | |
| 12 | Remove screws (3, 4, 5), remove mounting plates (6) and take off rack-and-pinion steering (1). | ||
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Notice | Notes on self-locking nuts and bolts | Fit screws (3, 4, 5) first, then tighten in the following sequence: Screws (3), screws (4), screws (5). |
AH00.00-P-0001-01KOA |
| *BA46.20-P-1001-01Q | |||
| *BA46.20-P-1002-01Q | |||
| 13 | Remove steering coupling from rack-and-pinion steering (1). | When replacing the rack-and-pinion steering (1). | |
| Check | |||
| 14 | Check rack-and-pinion steering (1). | After repairing an accident vehicle. | |
| If there is a problem, ↓ Replace rack-and-pinion steering (1). |
|||
| 15 | Install in the reverse order. | ||
| 16 | Add new steering number of rack-and-pinion steering (1) to on-line vehicle data card via Vehicle Documentation (VeDoc). | When replacing the rack-and-pinion steering (1). | |
| Measure | |||
| 17 | Perform wheel alignment measurement. | AR40.20-P-0200FRX | |
| 18 | Commission electrical power steering control unit. | When replacing the rack-and-pinion steering (1). | |
| AD00.00-P-2000-06FR |
STEERING GEAR
| Number | Designation | Model 290 | |||
|---|---|---|---|---|---|
| BA46.20-P-1001-01Q | Screw/nut, electric rack-and-pinion steering to front axle carrier | M8/M10 | Stage 1 | Nm | 20 |
| Stage 2 | ∠° | 90 | |||
| M12 | Stage 1 | Nm | 100 | ||
| Stage 2 | ∠° | 90 | |||
STEERING GEAR
| Number | Designation | Model 290 | ||
|---|---|---|---|---|
| BA46.20-P-1002-01Q | Screw/bolt, rack-and-pinion steering mounting plate to front axle carrier | M10 | Nm | 50 |
