Front Diagonal Struts Removal And Installation - Ar61.10-P-5141FRX

Model 290 with code M005 (4MATIC)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove center and rear engine compartment lining.		AR61.20-P-1105FRX

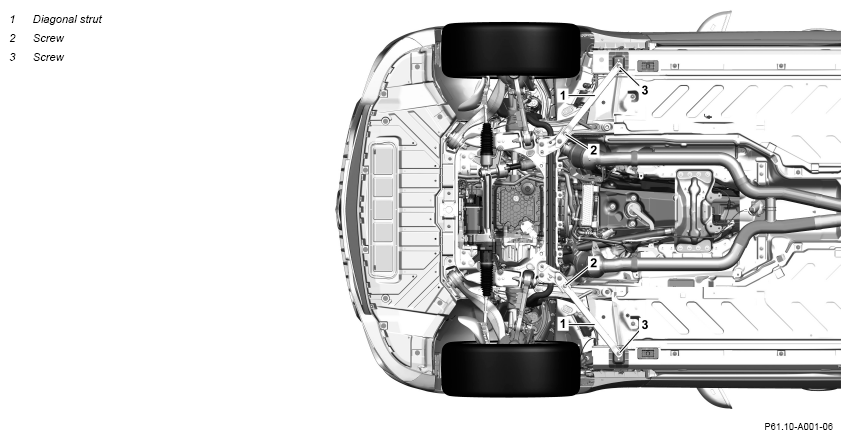

2	Release longitudinal member panel in the area of the diagonal struts (1).		AR61.30-P-1001FR
3	Remove screw/bolt (2).	Bolt, front diagonal strut to front axle carrier/torsion bar bearing shell/radiator mounting console	*BA61.10-P-1006-01L
4	Remove screw (3).	Bolt, front diagonal strut to longitudinal member	*BA61.10-P-1007-01L
5	Remove diagonal struts (1).
6	Install in the reverse order

FRAME FLOOR ASSEMBLY

Number	Designation		Model 290
BA61.10-P-1006-01L	Bolt, front diagonal strut to front axle carrier/torsion bar bearing shell/radiator mounting console	Nm	50

FRAME FLOOR ASSEMBLY

Number	Designation		Model 290
BA61.10-P-1007-01L	Bolt, front diagonal strut to longitudinal member	Nm	50
