Disconnect/Connect Engine Wiring Harness To Remove Engine - AR15.18-P-1000-05MNI
Engine 177 in model 290
GROUND POINTS
| Number | Designation | Model 290 | ||
|---|---|---|---|---|
| BA00.19-P-1039-02D | Bolt/nut, ground line to transmission/underfloor | M8 | Nm | 20 |
WIRING HARNESS
| Number | Designation | Model 290 | ||
|---|---|---|---|---|
| BA54.18-P-1001-02C | Nut, positive line to busbar on firewall | M6 | Nm | 8 |
| M8 | Nm | 17 | ||

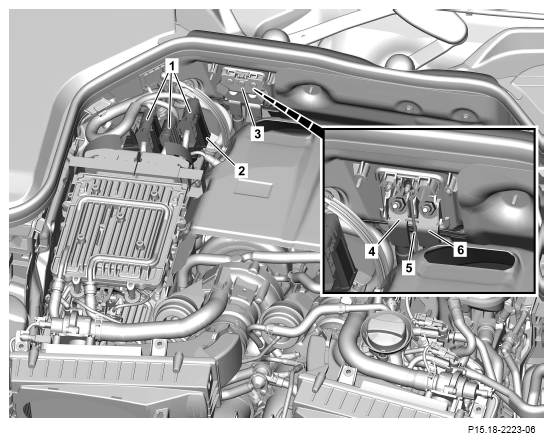

- Release and disconnect electrical connections (1).
- Unclip holder (2).
- Remove heat shield in front of cover (3).
- Remove cover (3).
- Remove electric line (4) from busbar
- Remove electric line (5) from busbar
.
- Remove electric line (6) from busbar

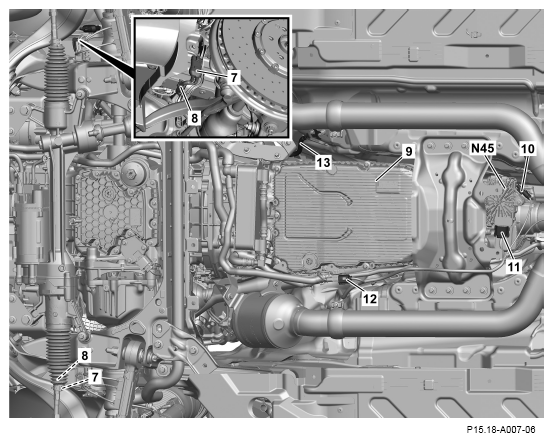

Shown on engine 177.9
- Release and disconnect electrical connectors (7).
- Unclip retaining clips (8)
- Release and disconnect electrical connector (10).
- Release and disconnect electrical connector (11) of all-wheel drive control unit (N45) and remove electric line from the rear engine carrier.
- Remove transmission (9) ground line (13) from underbody
-
- Engine 177.9 in model 290
Release and disconnect electrical connectors (12).
- Engine 177.8 in model 290 with code ME10 (Hybrid vehicle (plug-in, PHEV))
Release and disconnect electrical connectors of high-voltage wiring harness and remove high voltage wiring harness from holders and front axle carrier.
- Engine 177.9 in model 290
- Connect in reverse order.
Shown on engine 177.9
