Remove/Install Engine Oil Cooler - AR18.30-P-1000MNI
Engine 177 in model 290
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and nondeferrable vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Remove/install | |||
| 1 | Drain off coolant. | AR20.00-P-1142FR | |
| 2 | Remove front right wheel and tire assembly. | AR40.10-P-1102A | |
| 3 | Remove front right fender liner. | AR88.10-P-1301FR | |
| 4 | Remove coolant hoses (5) and seal openings with protective covers. | AR20.20-P-7441-01RQ | |

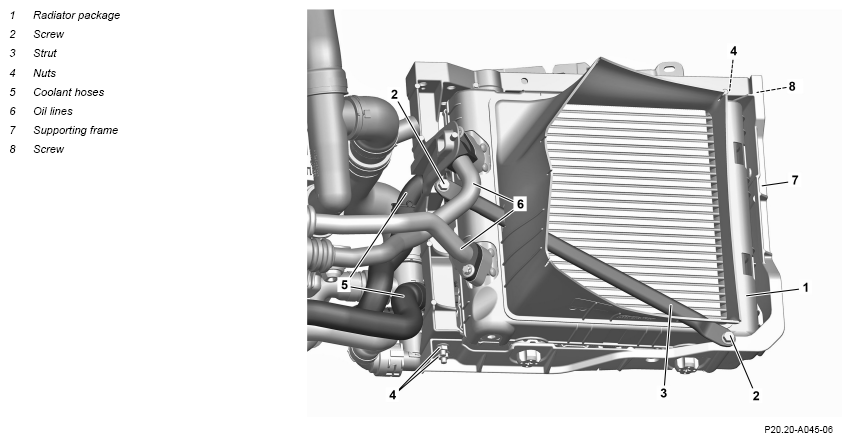

| Fig 1 | |||
| 5 | Remove drain screw (15) from the engine oil cooler (12) and catch engine oil with a suitable container. | *BA18.30-P-1011-01N | |
| 6 | Remove oil lines (6) and seal openings with protective covers. | *BA18.30-P-1006-01N | |

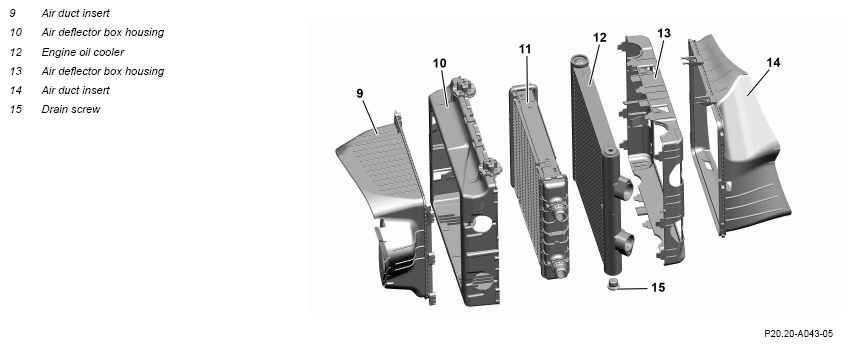

| Fig 1 | |||
| 7 | Remove screws (2) and remove strut (3). | ||
| 8 | Unscrew nuts (4). | ||
| 9 | Remove screw (8) and remove supporting frame (7). | ||
| 10 | Remove radiator package (1). | ||
| 11 | Remove air duct inserts (9, 14). | ||
| 12 | Remove air deflector box housing (10, 13). | ||
| 13 | Remove engine oil cooler (12). | ||
| 14 | Install in the reverse order. | ||
| 15 | Check and correct engine oil level. | ||
| AP18.00-P-1812DKI | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 16 | Perform engine test run and check engine cooling system and engine for proper operation and leak tightness. | ||
| 17 | Install the front and lower center engine compartment lining. | AR61.20-P-1105FRX |
OIL COOLING
| Number | Designation | Engine 177 except in model 463 | |
|---|---|---|---|
| BA18.30-P-1006-01N | Screw/bolt, oil line to front-end/wheel arch oil cooler | Nm | 8 |
OIL COOLING
| Number | Designation | Engine 177 except in model 463 | |
|---|---|---|---|
| BA18.30-P-1011-01N | Drain screw to wheel arch oil cooler | Nm | 25 |
