Overview Of System Components, Instrument Cluster (IC) Component Description - GF54.30-P-9996RD
Model 172.4

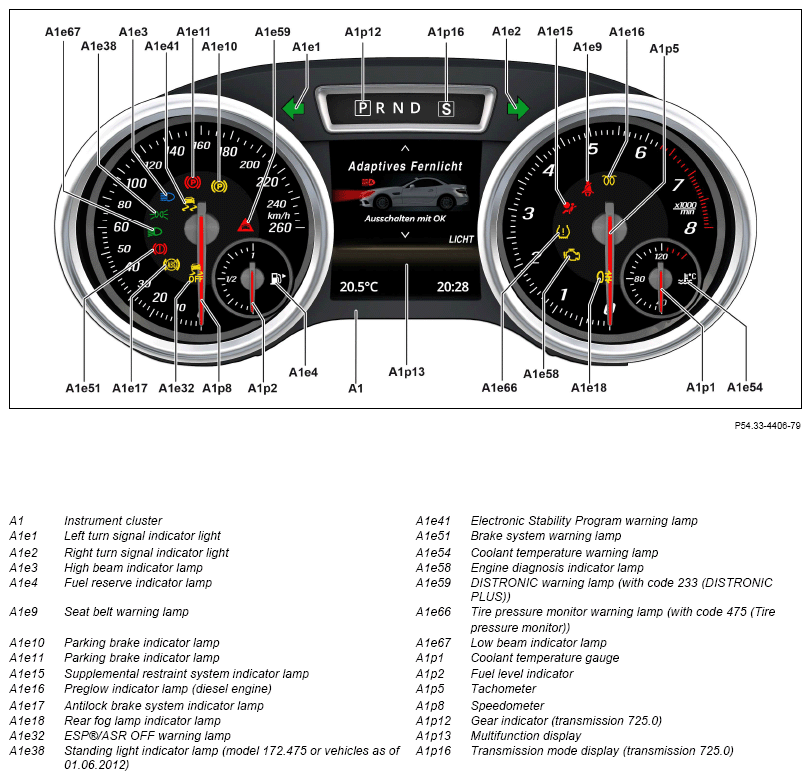

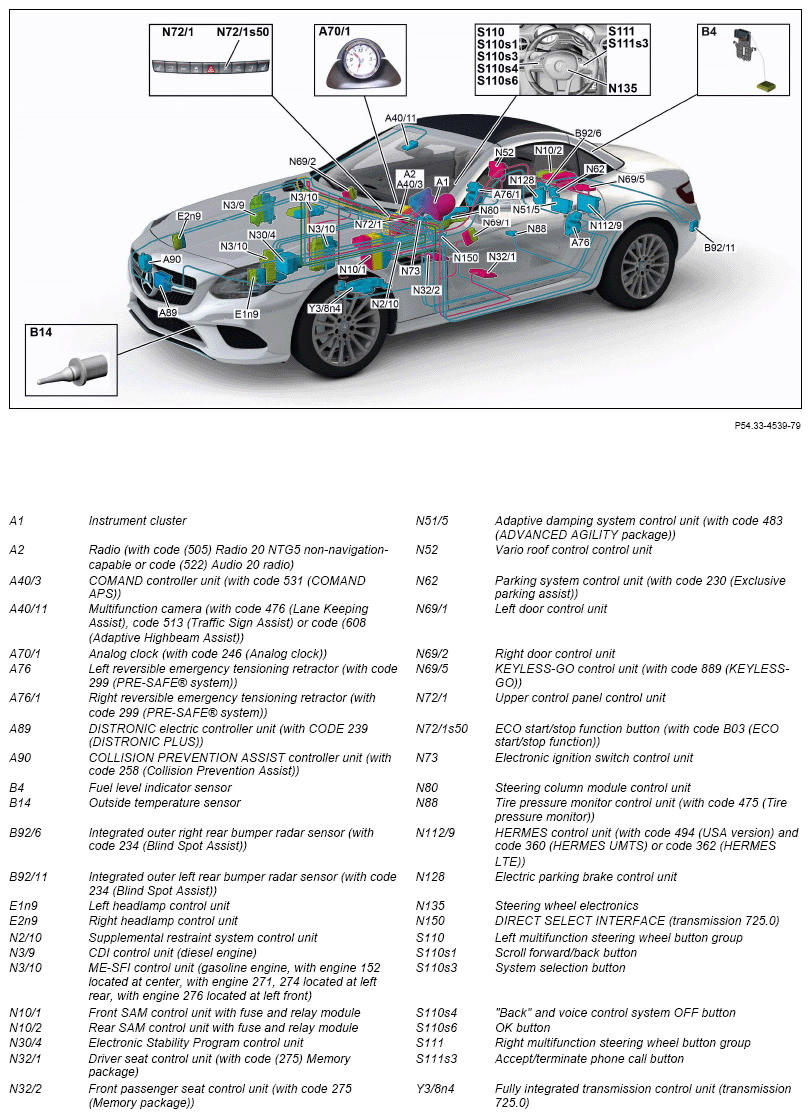

Illustration shows model 172.4 as of 01.03.2016

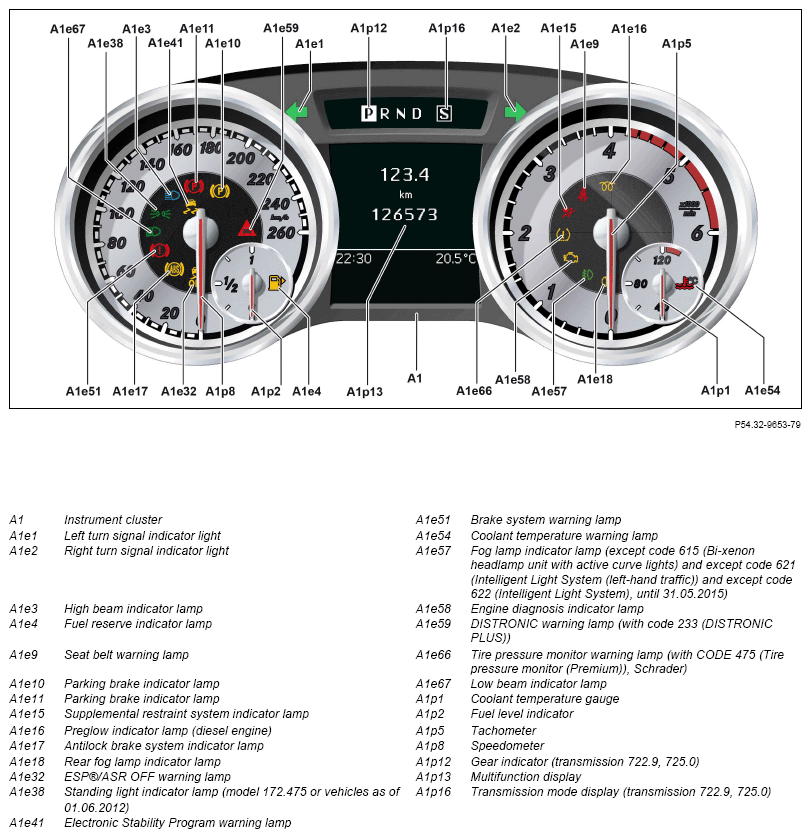

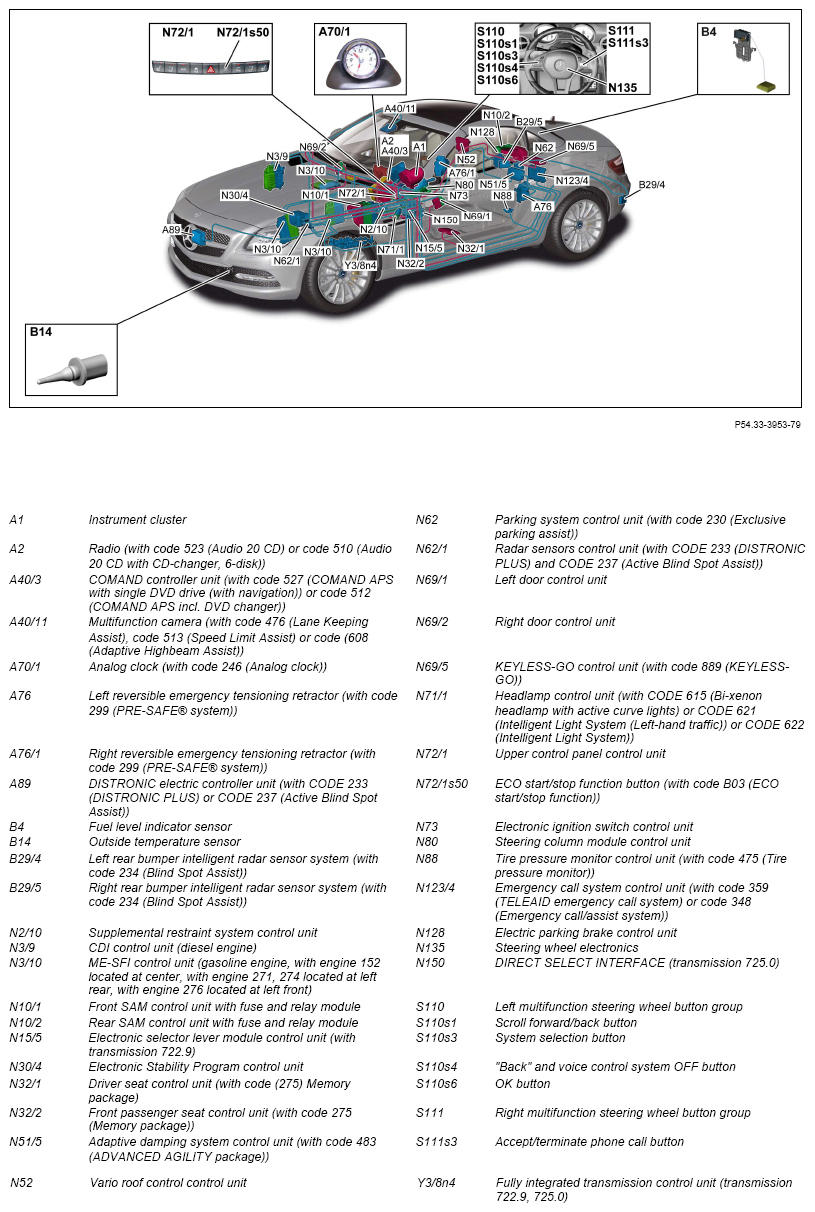

Shown on model 172.4 up to 29.02.2016
Shown on model 172.403 up to 29.02.2016
The following components integrated in the instrument cluster are not shown:
- Warning buzzer (A1h1)
- Function check of turn signal lights, acoustic (A1 h2)
- Instrument illumination brightness control (A1r1)
| Component description for instrument cluster | A1 | GF54.30-P-6000RD | |
| Component description for the radio | Model 172.4 as of model year 2017 with code 505 (Radio 20 NTG5, not navigation-enabled) Model 172.4 as of model year 2017 with code 522 (Audio 20 radio) A2 |
GF82.60-P-3122RDM | |
| Model 172.4 up to model year 2017 with code 510 (Audio 20 CD with 6-disc CD changer) Model 172.4 up to model year 2017 with code 523 (Audio 20 CD) A2 |
GF82.60-P-3122RD | ||
| Component description for COMMAND controller unit | Model 172.4 as of model year 2017 with code 531 (COMMAND APS) A40/3 | GF82.85-P-3136RDM | |
| Model 172.4 up to model year 2017 with code 512 (COMMAND APS with DVD changer) Model 172.4 up to model year 2017 with code 527 (COMMAND APS with single DVD drive (with navigation)) A40/3 |
GF82.85-P-3136RD | ||
| Component description for multifunction camera | Model 172.4 as of model year 2017 with code 513 (Traffic Sign Assist) Model 172.4 up to model year 2017 with code 513 (Speed Limit Assist) Model 172.4 with code 476 (Lane keeping assist) Model 172.4 with code 608 (Adaptive High beam Assist) Model 172.4 with code 628 (Adaptive High beam Assist Plus) A40/11 |
GF54.21-P-3300RD | |
| Component description for front reversible emergency tensioning retractors | Model 172.4 with code 299 (PRE-SAFE® system) A76, A761 | GF91.40-P-4020RD | |
| Component description for DISTRONIC electric controller unit | Model 172.4 as of model year 2016 with code 239 (DISTRONIC PLUS) A89 | GF30.30-P-3213RDA | |
| Model 172.4 up to model year 2016 with code 233 (DISTRONIC PLUS) A89 | GF30.30-P-3213RD | ||
| COLLISION PREVENTION ASSIST controller unit, component description | Model 172.4 as of model year 2017 with code 258 (COLLISION PREVENTION ASSIST) A90 | GF30.30-P-3214RDM | |
| Component description for intelligent radar sensor control unit | Model 172.4 as of model year 2013 up to model year 2016 with code 234 (Blind Spot Monitoring) B29/4, B29/5 | GF30.30-P-3305RD | |
| Integrated radar sensor, component description | Model 172.4 as of model year 2016 with code 234 (Blind Spot Monitoring) B92/6, B92/11 | GF30.30-P-3313RDM | |
| Headlamp control unit, component description | Model 172.4 as of model year 2017 with code 640 (High-performance LED) Model 172.4 as of model year 2017 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 172.4 as of model year 2017 with code 642 (Dynamic LED headlamps, right-hand traffic) E1n9. E2n9 |
GF82.10-P-2020RDM | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RD | |
| Component description for CDI control unit | Model 172.403 with engine 651.980 N3/9 | GF07.16-P-6000OLK | |
| Component description for ME-SFI (ME) control unit | Model 172.4 with engine 152.9 N3/10 | GF07.61-P-6000MMI | |
| Model 172.4 with engine 271.861 N3/10 | GF07.61-P-6000MGA | ||
| Model 172.4 with engine 276.8 N3/10 | GF07.61-P-6000MNC | ||
| Model 172.4 with engine 274.9 N3/10 |
GF07.61-P-6000MRE | ||
| Model 172.4 with engine 276.9 N3/10 |
GF07.61-P-6000MMD | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070RD | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030RD | |
| Component description for electronic selector lever module control unit | Model 172 with transmission 722.9 N15/5 |
GF27.60-P-5163AHN | |
| Component description for Electronic Stability Program control unit | Model 172.4 as of model year 2017 N30/4 |
GF42.45-P-5119RDA | |
| Model 172.4 up to model year 2017 N30/4 |
GF42.45-P-5119RD | ||
| Component description for driver seat control unit | Model 172.4 with code 275 (Memory package) N32/1 |
GF91.29-P-5231RD | |
| Component description for front passenger seat control unit | Model 172.4 with code 275 (Memory package) N32/2 |
GF91.29-P-5241RD | |
| Component description for adaptive damping system control unit | Model 172.4 up to model year 2017 with code 483 (ADVANCED AGILITY package) N51/5 | GF32.32-P-1010RD | |
| Vario roof control unit, component description | N52 | GF77.39-P-3210RD | |
| Parking system control unit component description | Model 172.4 as of model year 2017 with code 230 (Advanced Parking Guidance) N62 | GF54.65-P-5002RDM | |
| Model 172.4 up to model year 2017 with code 230 (Advanced Parking Guidance) N62 | GF54.65-P-5002RD | ||
| Component description for radar sensors control unit | Model 172.4 up to model year 2016 with code 233 (DISTRONIC PLUS) N62/1 | GF30.30-P-3301RD | |
| Left door control unit, component description | N69/1 | GF72.29-P-4143RD | |
| Right door control unit, component description | N69/2 | GF72.29-P-4144RD | |
| Component description for KEYLESS-GO control unit | Model 172.4 with code 889 (KEYLESS-GO) N69/5 | GF80.61-P-4204RD | |
| Headlamp control unit, component description | Model 172.4 up to model year 2017 with code 615 (Bi-xenon headlamps with active light function) Model 172.4 up to model year 2017 with code 621 (Intelligent Light System (left-hand traffic)) Model 172.4 up to model year 2017 with code 622 (Intelligent Light System) N71/1 | GF82.10-P-2020RD | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040RD | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RD | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RD | |
| Component description for tire pressure monitor control unit | Model 172.4 with code 475 (Tire pressure monitoring system) N88 | GF40.15-P-5124RD | |
| HERMES control unit, component description | Model 172.4 with code 360 (HERMES UMTS) Model 172.4 with code 362 (HERMES LTE) N112/9 | GF82.85-P-0221RDM | |
| Component description for emergency call system control unit | Model 172.4 with code 359 (TELE AID emergency call system) N123/4 | GF82.95-P-3212RDU | |
| Model 172.4 with code 348 (Emergency call/assistant system) N123/4 |
GF82.95-P-3212RDV | ||
| Electric parking brake control unit, component description | Model 172.4 as of model year 2017 N128 |
GF42.20-P-5005RDA | |
| Model 172.4 up to model year 2017 N128 |
GF42.20-P-5005RD | ||
| DIRECT SELECT interface, component description | Model 172 with transmission 725.0 N150 |
GF27.19-P-1300ANH | |
| Component description for fully integrated transmission control unit | Model 172 with transmission 722.9 Y38n4 |
GF27.60-P-5165AHN | |
| Model 172 with transmission 725.0 Y38n4 |
GF27.60-P-5165ANH | ||
| Table of contents for function description of instrument cluster (IC) | GF54.30-P-0997RD |
