(Component Description For Fully Integrated Transmission Control Unit - GF27.60-P-5165AHN)
TRANSMISSION 722.9 in MODEL 172

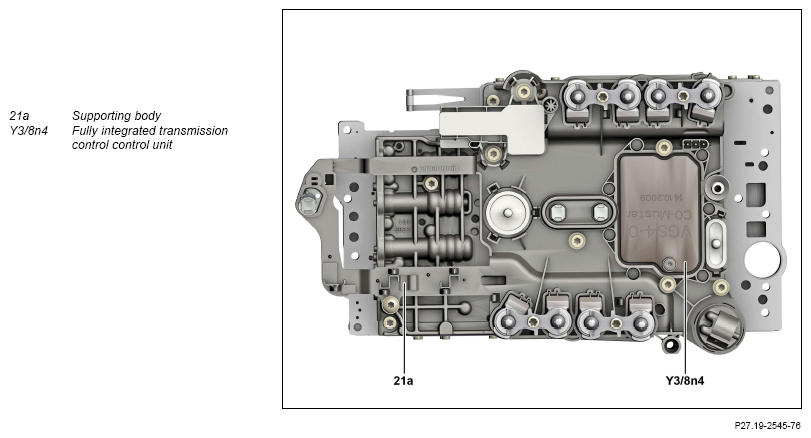

View of fully integrated transmission controller unit (Y3/8) from above, shown with fully integrated transmission control 4 (VGS4-0, as of Year Model 14)
Location
The fully integrated transmission control unit is integrated in the fully integrated transmission control controller unit (Y3/8) which is located in the oil pan at the bottom of the transmission.
Task
General
With its own independent diagnosis system the fully integrated transmission control unit determines the current operating condition of the vehicle and controls all gear change sequences taking into account shift comfort and the driving situation.
Flash programming
The transmission control system in the control unit for the fully integrated transmission control (VGS) is fishable i.e. the complete software in the control unit can be changed (replaced). The software required to program the control units is stored on the Xentry diagnostics update DVD.
CAN bus
The fully integrated transmission control unit is connected via drive train CAN (CAN C) to the vehicle's CAN network, and exchanges data with other control units.
Input and output signals
The following input signals are evaluated by the fully integrated transmission control unit and the appropriate output signals are generated:
- Direct input signals
- Direct output signals
- CAN input signals
- CAN output signals
Direct input signals
- Circuit 31
- Circuit 87 (switched circuit 15)
- Turbine wheel rpm sensor (Y3/8n1)
- Internal transmission rpm sensor (Y3/8n2)
- Output shaft rpm sensor (Y3/8n3)
- Selection range sensor (Y3/8s1)
- Transmission oil temperature sensor (Y3/8s2) (integrated into fully integrated transmission control unit)
Direct output signals
- Working pressure control solenoid valve (Y3/8y1)
- Clutch control solenoid valve K1 (Y3/8y2)
- Clutch control solenoid valve K2 (Y3/8y3)
- Clutch control solenoid valve K3 (Y3/8y4)
- Multidisk brake control solenoid valve B1 (Y3/8y5)
- Multidisk brake control solenoid valve B2 (Y3/8y6)
- Multidisk brake control solenoid valve B3 (Y3/8y7)
- Torque converter lockup clutch control solenoid valve (Y3/8y8)
CAN input signals
Electronic selector lever module control unit (N15/5)
- Selector lever position
- Transmission mode selection
Electronic ignition lock control unit (N73)
- Drive authorization system (DAS) enable
- Shift-lock request
- Circuit 50 signal, influencing fault storage
Electronic Stability Program control unit (N30/4)
- Wheel speeds and direction of rotation, substitute values in the event of failure of the output shaft rpm sensor
- Adjusted braking torque, change of shift strategy, brake the vehicle, transmission shifts down earlier
- Vehicle lateral acceleration at center of gravity, adaptation of shift strategy, detection of dynamic driving style
- Cruise control operation, special shifting strategy
- Electronic Stability Program (ESP®) requested shift into "N", interruption of power flow
- Brake light switch (S9/1), change of shift strategy, brake vehicle, transmission shifts down earlier
- ESP® specified torque, torque reduction or torque increase
Steering column tube module control unit (N80)
- Steering wheel downshift button signal (S110/1) (with CODE 428 (Steering wheel shift paddles))
- Steering wheel upshift button signal (S111/1) (with CODE 428 (Steering wheel shift paddles))
CDI control unit (N3/9) or ME-SFI [ME] control unit (N3/10)
- Requests for catalytic converter heating
- Shift request
- Engine torque
- Engine coolant temperature
- Engine speed
- Engine load
- Kickdown
- Engine speed limitation active
- Engine management limp-home mode
Front SAM control unit with fuse and relay module (N10/1)
- Diagnosis request
Automatic transmission fluid auxiliary pump control unit (N89)
- Actual value of duty cycle (applied current actual value)
- Diagnostic data
CAN output signals
Instrument cluster (A1)
- Selector lever position for gear indicator (A1p12)
- Multifunction display (A1 p 13)
- Mode selection for transmission mode display (A1p16)
- Actuation of engine diagnosis indicator lamp (A1e58)
Electronic Stability Program control unit (N30/4)
- Wheel torque factor, overall gear ratio
- Actual gear, target gear
- Transmission variant, recognition of basic variants, difference in gear ratios
Front SAM control unit with fuse and relay module (N10/1)
- Diagnostic data
CDI control unit (N3/9) or ME-SFI [ME] control unit (N3/10)
- Drive position
- Transmission mode
- Actual gear, target gear
- Engine torque reduction request
- Starter enable in selector lever position "P, N"
- Target engine speed in neutral (for actuation of torque converter lockup clutch)
- Status of torque converter lockup clutch
- Transmission limp-home mode
Automatic transmission fluid auxiliary pump control unit (N89)
- Specified value of duty cycle (applied current specification value)
| Wiring diagram for electronic selector lever module control unit | PE27.19-P-2102-97TAA | ||
| Wiring diagram for fully integrated transmission control unit | PE27.19-P-2103-97TAA |
