Direct Select Interface, Component Description - GF27.19-P-1300ANH
Transmission 725.0 in model 172

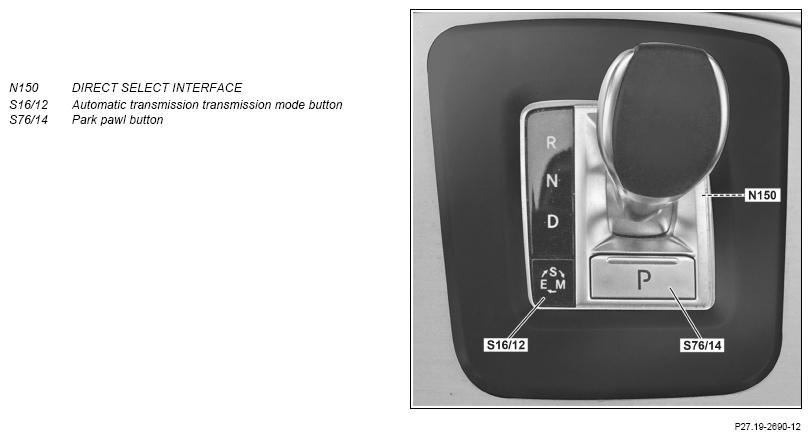

View of center console with code 950 (AMG sport package) except code B59 (DYNAMIC SELECT)

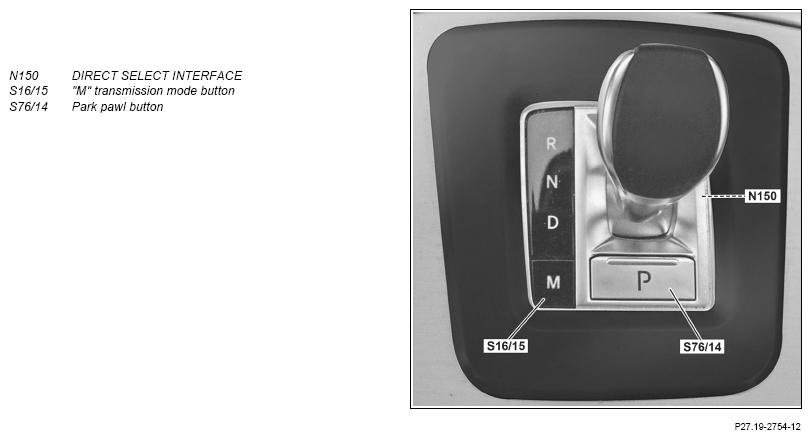

View of center console with code B59 (DYNAMIC SELECT)
Location
The DIRECT SELECT INTERFACE is in the center console.
Task
DIRECT SELECT INTERFACE records the positions of the selector lever using integrated contactless sensors with Hall elements.
Flash programming
The DIRECT SELECT INTERFACE is fishable, i.e. the complete control unit software can be changed (updated). The software required for control unit programming is stored on the diagnosis software DVD.
CAN bus
The DIRECT SELECT INTERFACE is connected to the CAN network of the vehicle via the drive train CAN (CAN C) and exchanges data with other control units.
Input and output signals
The DIRECT SELECT INTERFACE evaluates the following input signals and outputs the appropriate output signals:
- Direct input signals
- Direct output signals
- CAN input signals
- CAN output signals
Direct input signals
- Circuit 30 (fused)
- Circuit 31
- Automatic transmission mode button (except code B59 (DYNAMIC SELECT))
- Transmission mode "M" button (with code B59 (DYNAMIC SELECT))
- Status of park pawl button (gear range "P", "Not P")
Direct output signals
- None
CAN input signals
Front SAM control unit with fuse and relay module (N10/1)
- Let door rotary tumbler switch status
- On-board electrical system status and diagnosis communication
- Status of DYNAMIC SELECT button
Electronic Stability Program control unit (N30/4)
- Service brake, status
- Wheel speeds
Electronic ignition lock control unit (N73)
- Circuit 15 status
CAN output signals
Front SAM control unit with fuse and relay module
- Diagnosis communication
Fully integrated transmission control unit (Y3/8n4)
- Selector lever signal (gear range "R, N, D")
- Status of park pawl button (gear range "P", "Not P")
- Upshift and downshift request (cross-tip function)
- Status, A/T transmission mode button
CDI control unit (N3/9) (with diesel engine) or ME-SFI [ME] control unit (N3/10) (with gasoline engine)
- Selector lever signal (gear range "R, N, D")
- Upshift and downshift request (cross-tip function)
- Status, A/T transmission mode button
Electronic Stability Program control unit
- DIRECT SELECT INTERFACE signal (gear range "R, N, D")
- Status of park pawl button (gear range "P", "Not P")
Instrument cluster (A1)
- DIRECT SELECT INTERFACE signal (gear range "R, N, D")
- Status of park pawl button (gear range "P", "Not P")
The DIRECT SELECT INTERFACE is fishable and codeable.
| Wiring diagram for DIRECT SELECT interface! | PE27.19-P-2101-97TAA |
