Component Description For Instrument Cluster - GF54.30-P-6000RD
Model 172.4

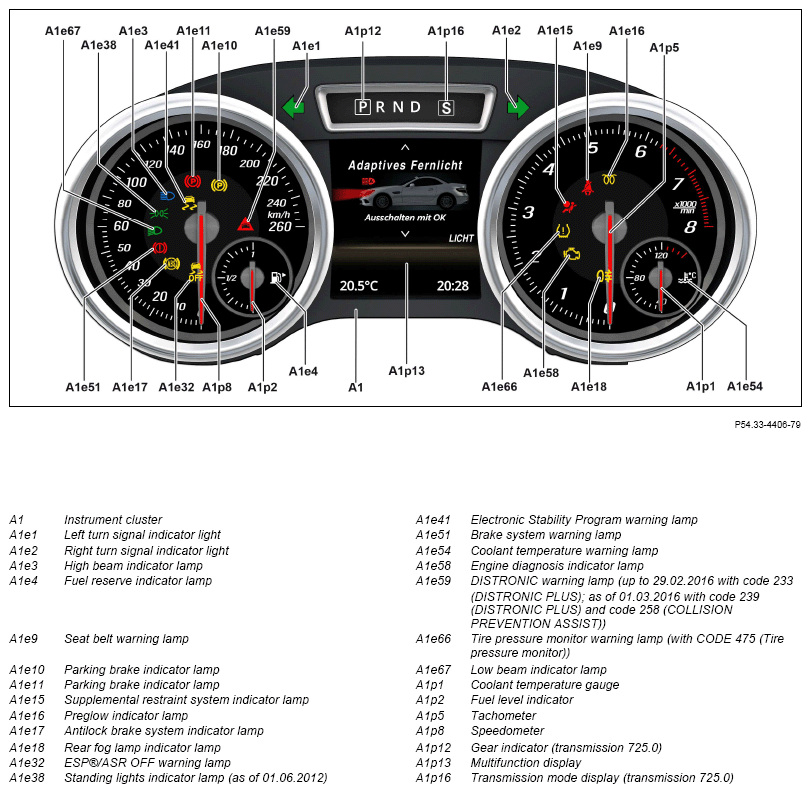

Vehicle with gasoline engine; illustration shows model 172.4 as of 01.03.2016

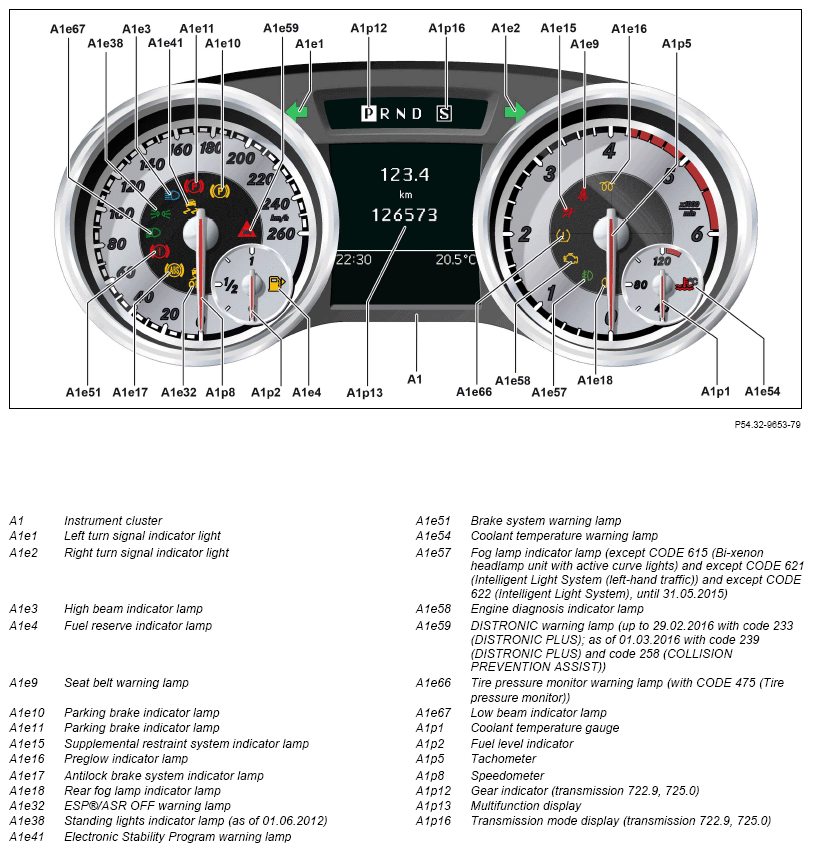

Vehicle with gasoline engine; illustration shows model 172.447 up to 29.02.2016
The following components integrated in the instrument cluster are not shown:
- Warning buzzer (A1h1)
- Function check of turn signal lights, acoustic (A1 h2)
- Instrument illumination brightness control (A1r1)

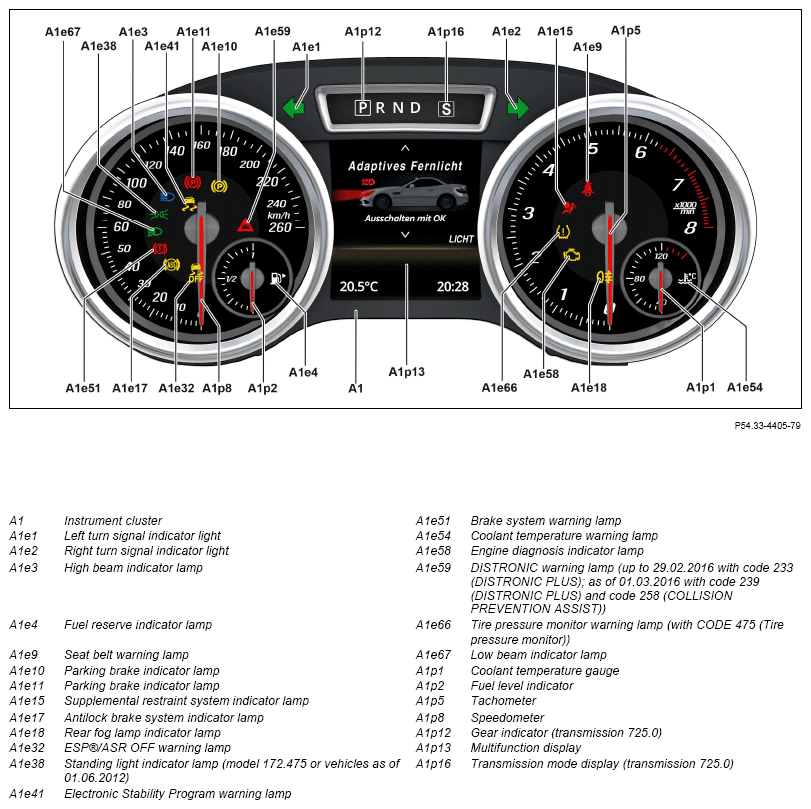

Vehicle with diesel engine; illustration shows model 172.4 with gasoline engine as of 01.03.2016

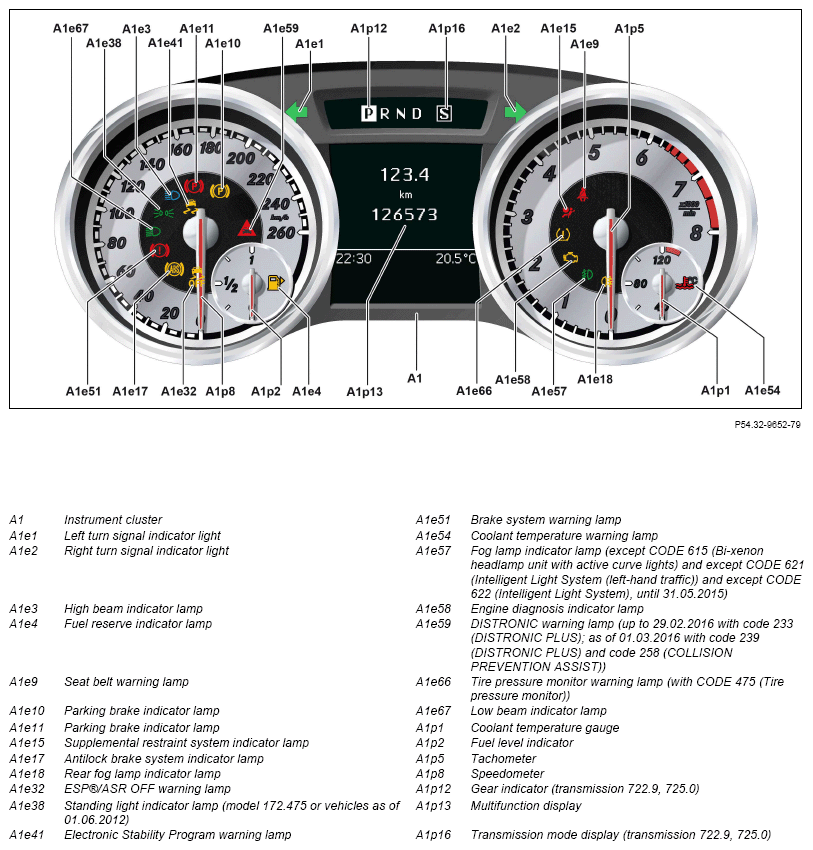

Vehicle with diesel engine; illustration shows model 172.403 up to 29.02.2016
The following components integrated in the instrument cluster are not shown:
- Warning buzzer
- Turn signal light function check, acoustic
- Instrument illumination brightness control
Location
The instrument cluster is located in the dashboard on the driver-side.
Tasks
The instrument cluster has the following tasks:
- Reading in of sensors and signals
- Evaluation of input factors
- Actuation of components
- Output of warning tones and indicator tones
- Output of signals
Reading in of sensors and signals
The instrument cluster reads in the input factors via the following connections:
Interior CAN
The signals are read in by the instrument cluster over the interior CAN.
- Interior CAN (CAN B)
- Chassis CAN (up to 29.02.2016) or chassis CAN 2 (as of 01.03.2016)
The functions that use these signals are described in the individual function descriptions (see block diagram or function schematic).
Chassis CAN (up to 29.02.2016) or chassis CAN 2 (as of 01.03.2016)
The signals are read in by the instrument cluster via the chassis CAN (up to 29.02.2016) or chassis CAN 2 (as of 01.03.2016).
The functions that use these signals are described in the individual function descriptions (see block diagram or function schematic).
Evaluation of input factors
The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.
Actuation of components
The instrument cluster directly actuates all internal actuators (e.g. indicator and warning lamps, stepper motors of displays, multifunction display) as well as the instrument illumination.
Output of warning tones and indicator tones
To issue warning and information tones which are requested by the systems installed in the vehicle, the instrument cluster actuates the warning buzzer or the acoustic function check for the turn signal lights (output of turn signal ticking).
Output of signals
The signals are issued over the following connections:
- Interior CAN
- Chassis CAN (up to 29.02.2016) or chassis CAN 2 (as of 01.03.2016)
Interior CAN
The signals are sent by the instrument cluster over the interior CAN. The functions that use these signals are described in the individual function descriptions (see block diagram or function schematic). Chassis CAN (up to 29.02.2016) or chassis CAN 2 (as of
01.03.2016)
The signals are sent by the instrument cluster via the chassis CAN (up to 29.02.2016) or chassis CAN 2 (as of 01.03.2016).
The functions that use these signals are described in the individual function descriptions (see block diagram or function schematic).
| Wiring diagram for instrument cluster (IC) control unit | PE54.30-P-2101-97TAA |
