Remove/Install Complete Rear Axle - AR35.10-P-0010XG
Model 463
as of model year 2019
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Raise vehicle using vehicle lift. | AR00.60-P-1006A | |

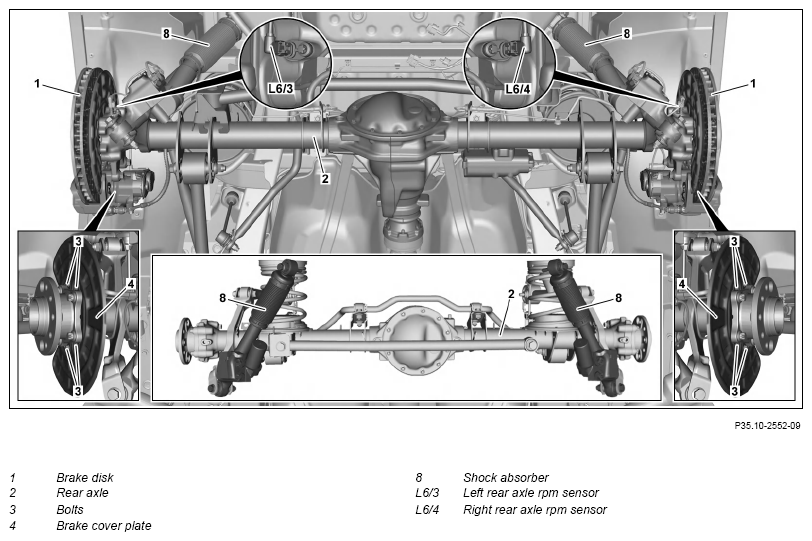

| 2 | Remove brake disks (1) from rear axle (2). | Only when replacing the rear axle. | AR42.10-P-0220XG |
| 3 | Remove screws (3) on left and right of rear axle (2) and remove brake cover plates (4). | Only when replacing the rear axle. | |
| 4 | Remove left rear axle RPM sensor (L6/3) and right rear axle RPM sensor (L6/4). | Only when replacing the rear axle. | AR42.40-P-0820XG |
| 5 | Cut outer brake hoses (5) at the locations (arrows) marked in the diagram, seal with suitable stop plugs and remove together with brake calipers. | Only when replacing the rear axle. | AR42.10-P-0013XG |
| Fig 4 | |||
| 6 | Cut inner brake hoses (6) at the locations (arrows) marked in the diagram, and seal with suitable stop plugs. | AR42.10-P-0013XG | |
| Fig 4 | |||
| 7 | Detach brake lines (7) from rear axle (2) and seal with suitable stop plugs. | Only when replacing the rear axle. | |
| Fig 4 | |||
| 8 | Support rear axle (2) with support plate and major assembly mount. | Fig 2 | |
| Fig 3 | |||
| 9 | For removal, secure rear axle (2) on support plate and major assembly mount to prevent it from falling. | Fig 2 | |
| Fig 3 | |||

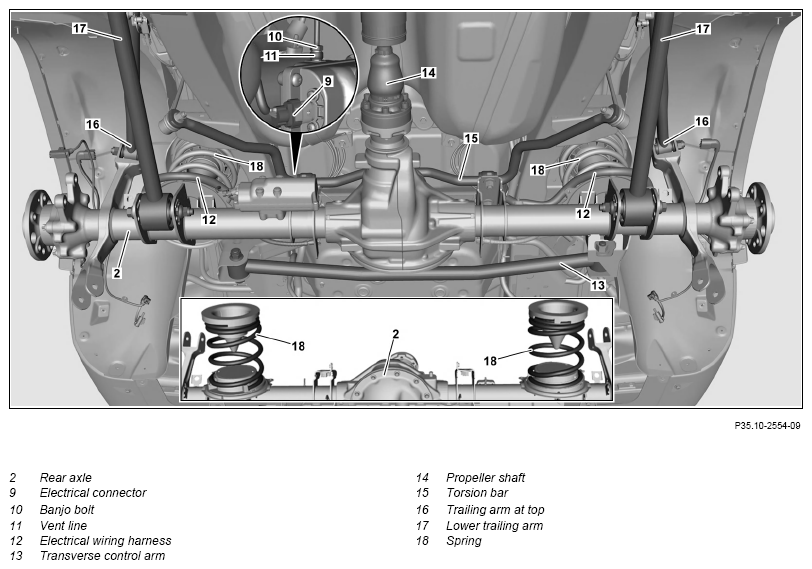

| 10 | Remove shock absorbers (8). | AR32.25-P-0110XG | |
| 11 | Disconnect electrical connector (9). | ||
| 12 | Unscrew banjo bolt (10), remove sealing rings and expose bleed line (11). | ||
| 13 | Detach electrical wiring harnesses (12) from rear axle (2) on left and right. | ||
| 14 | Remove transverse control arm (13). | AR35.20-P-0140XG | |
| 15 | Detach propeller shaft (14) from rear axle (2) and secure to vehicle to prevent it from falling. | Model 463 with engine 176 as of model year 2019 Model 463 with engine 177 as of model year 2019 | AR41.10-P-0050XGA |
| 16 | Detach torsion bar (15) from rear axle (2). | Model 463.276/277 as of model year 2019 | AR32.20-P-0315XG |
| 17 | Detach upper trailing arm (16) from rear axle (2). | AR35.15-P-0320XG | |
| 18 | Detach lower trailing arm (17) from rear axle (2). | If this is not observed, the wheel alignment measurement must be performed. |
AR35.15-P-0330XG |
| 19 | Lower rear axle (2) until springs (18) are unloaded and can be removed. | Otherwise, they will be damaged. |
|
| 20 | Remove springs (18). | AR32.20-P-0230XG | |
| 21 | Lower rear axle (2) completely and remove towards the rear. | Otherwise, they will be damaged. |
|
| 22 | Install in reverse order. | ||
| Check | |||
| 23 | Perform wheel alignment measurement. | When replacing: - the rear axle (2) - the lower trailing arms (17) and if the original version, location and installation position of the adjusting shims (17) are not assured. | AR40.20-P-0200XG |
