Remove/Install Upper Trailing Arm Of Rear Axle - AR35.15-P-0320XG
Model 463
as of model year 2019
MODIFICATION NOTES
| 19.01.2021 | Screw, upper trailing arm to frame | Model 463 as of model year 2019 | BA35.15-P-1008-02A |
Shown on left side of vehicle

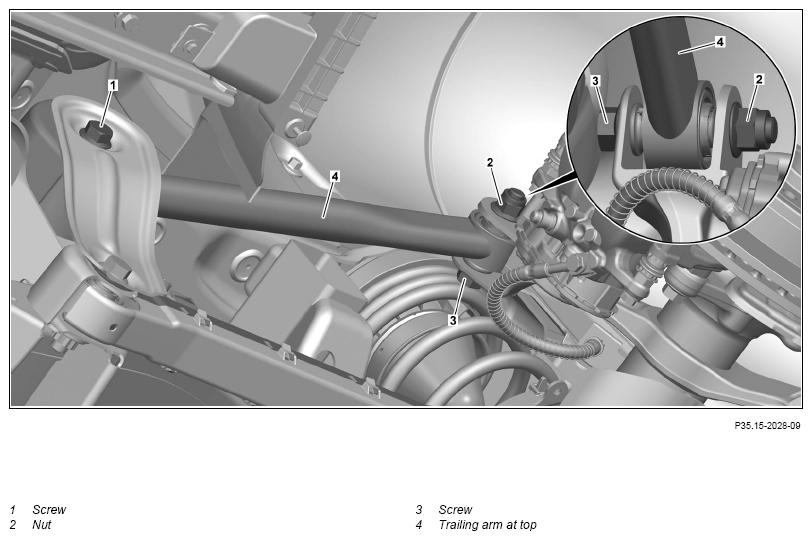

Fig 1: Rear Axle Upper Trailing Arm Components Location - Model 463 As Of Model Year 2019 (Shown On Left Side Of Vehicle)
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Remove left or right wheel and tire assembly from rear axle. | AR40.10-P-1102XG | |
| 2 | Unscrew bolt (1). | *BA35.15-P-1008-02A | |
| 3 | Unscrew nut (2) from bolt (3). | *BA35.15-P-1007-02A | |
| 4 | Remove screw (3) then remove top trailing arm (4). | ||
| Check | |||
| 5 | Check top trailing arm (4) for damage. | If the top trailing arm (4) is damaged, | |
| ↓ | |||
| replace top trailing arm (4). | |||
| 6 | Check condition of elastomer bearing on top trailing arm (4). | If elastomer bearings on the trailing arm at the top (4) are damaged, | |
| ↓ | |||
| replace top trailing arm (4). | |||
| 7 | Install in reverse order. | ||
| Check | |||
| 8 | Perform wheel alignment measurement. | Only when replacing the top trailing arm (4). | AR40.20-P-0200XG |
TRAILING ARMS, TRANSVERSE CONTROL ARMS
| Number | Designation | Model 463 as of model year 2019 | ||
|---|---|---|---|---|
| BA35.15-P-1007-02A | Screw, upper trailing M14 arm to rear axle | Stage 1 | Nm | 70 |
| Stage 2 | ∠° | 90 | ||
TRAILING ARMS, TRANSVERSE CONTROL ARMS
| Number | Designation | Model 463 as of model year 2019 | ||
|---|---|---|---|---|
| BA35.15-P-1008-02A | Screw, upper trailing M14 arm to frame | Stage 1 | Nm | 100 |
| Stage 2 | ∠° | 180 | ||
