Remove/Install Rear Axle Transverse Control Arm - AR35.20-P-0140XG
Model 463
as of model year 2019
MODIFICATION NOTES
| 17.11.2020 | Remove AdBlue® container. | Operation step 2. |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of burn injuries and scalding when working at AdBlue lines and the components attached to them. Risk of injury to skin and eyes when handling AdBlue. Risk of poisoning caused by swallowing AdBlue | Pour AdBlue into suitable containers only. Wait until the pressure is released before starting any work on the exhaust aftertreatment system. | AS14.40-Z-0001-01A | |
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Raise vehicle using vehicle lift. | AR00.60-P-1006A | |
| 2 | Remove AdBlue® container. | Model 463 with engine 656 as of model year 2019 | AR49.20-P-2014XGE |

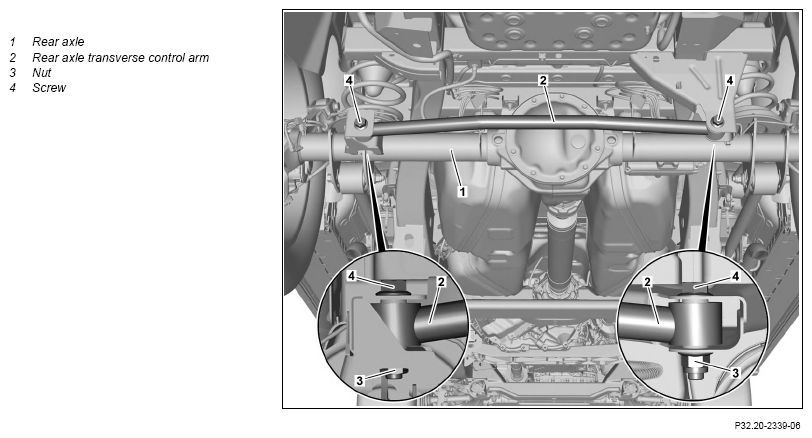

| 3 | Raise rear axle (1) until the rear axle transverse control arm (2) is free of tension. | ||
| 4 | Remove nuts (3) at right and left on rear axle transverse control arm (2). | *BA35.15-P-1005-02A | |
| *BA35.15-P-1006-02A | |||
| 5 | Remove bolt (4) on right of vehicle, release rear axle transverse control arm (2) from mounting support then lower. | ||
| 6 | Remove bolt (4) at left on the vehicle then remove rear axle transverse control arm (2). | ||
| 7 | Install in the reverse order. |
TRAILING ARMS, TRANSVERSE CONTROL ARMS
| Number | Designation | Model 463 as of model year 2019 | ||
|---|---|---|---|---|
| BA35.15-P-1005-02A | Bolt, transverse control arm to rear axle | Stage 1 | Nm | 150 |
| Stage 2 | ∠° | 90 | ||
TRAILING ARMS, TRANSVERSE CONTROL ARMS
| Number | Designation | Model 463 as of model year 2019 | ||
|---|---|---|---|---|
| BA35.15-P-1006-02A | Bolt, transverse control arm to frame | Stage 1 | Nm | 150 |
| Stage 2 | ∠° | 90 | ||
