Remove/Install Rear Shock Absorber - AR32.25-P-0110XG
Model 463 as of model year 2019
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Remove left or right wheel and tire assembly from rear axle. | AR40.10-P-1102XG | |
| 2 | Support rear axle at axle tube. | ||

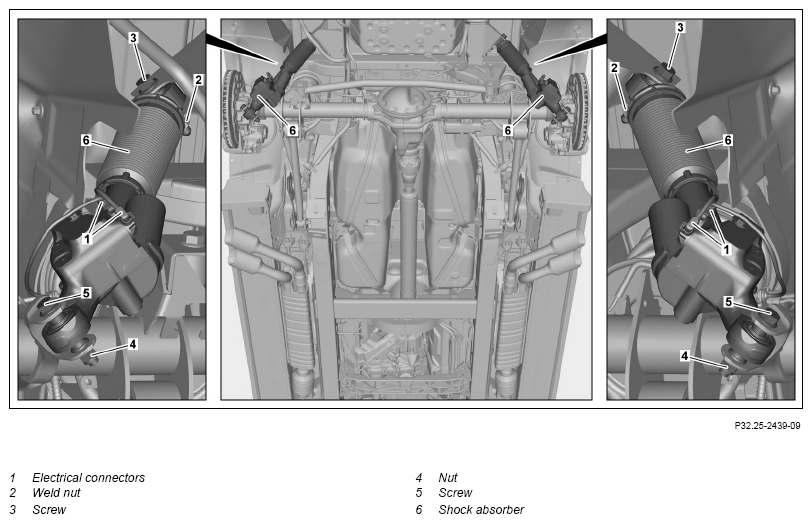

| 3 | Disconnect electrical connectors (1). | Model 463 as of model year 2019 with code A20 (Suspension with Adaptive Damping system) | |
| 4 | Remove the screw (3). | *BA32.25-P-1003-03E | |
| 5 | Unscrew nut (4) and remove screw (5). | *BA32.25-P-1004-03E | |
| 6 | Remove shock absorber (6). | ||
| Check | |||
| 7 | Check shock absorber (6) for damage and leakage. | Checking shock absorber | AR32.25-P-0121XG |
| 8 | Install in reverse order. |
REAR AXLE SHOCK ABSORBER
| Number | Designation | Model 463 as of model year 2019 | ||
|---|---|---|---|---|
| BA32.25-P-1003-03E | Bolt, shock absorber to frame | Stage 1 | Nm | 100 |
| Stage 2 | ∠° | 90 | ||
REAR AXLE SHOCK ABSORBER
| Number | Designation | Model 463 as of model year 2019 | ||
|---|---|---|---|---|
| BA32.25-P-1004-03E | Bolt, shock absorber to holder (rear axle tube) | Stage 1 | Nm | 100 |
| Stage 2 | ∠° | 90 | ||
