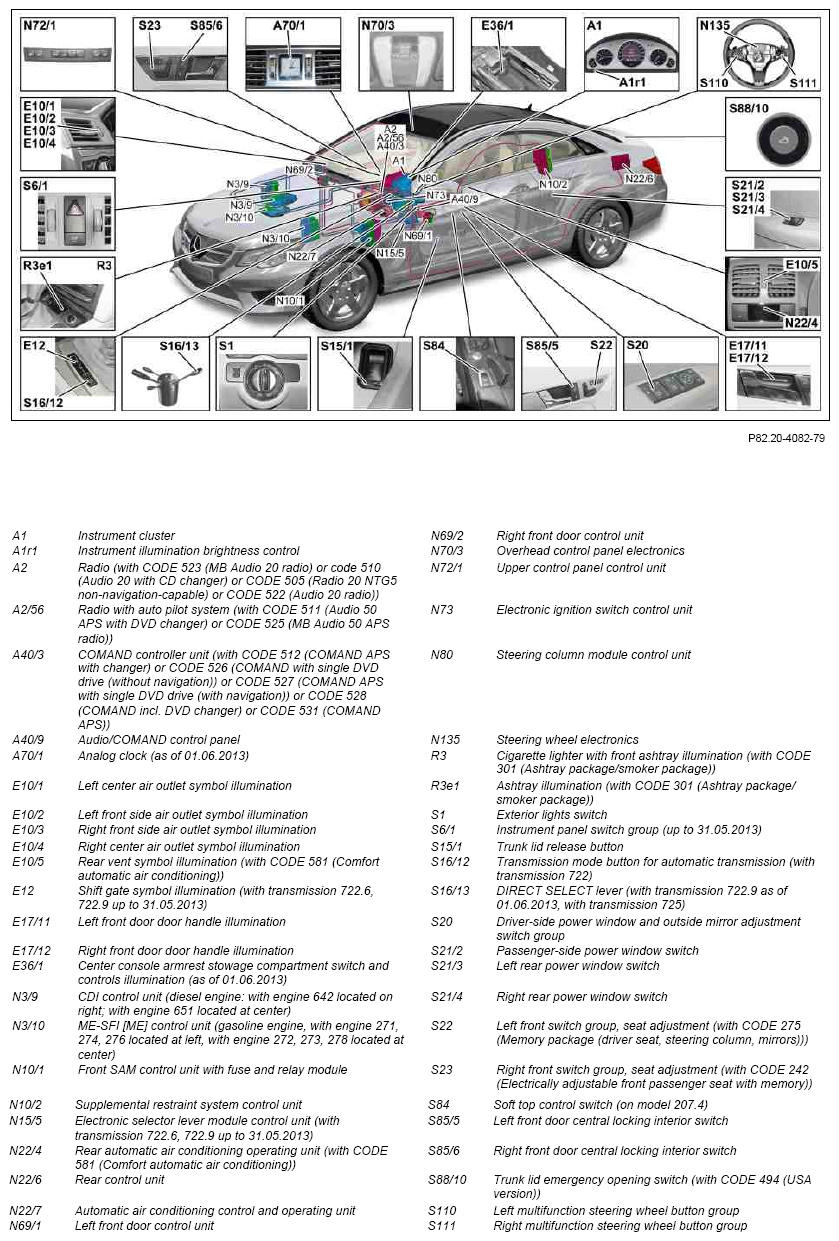

Overview of interior illumination (IBL) system components - GF82.20-P-9997CA
MODEL 207.3/4

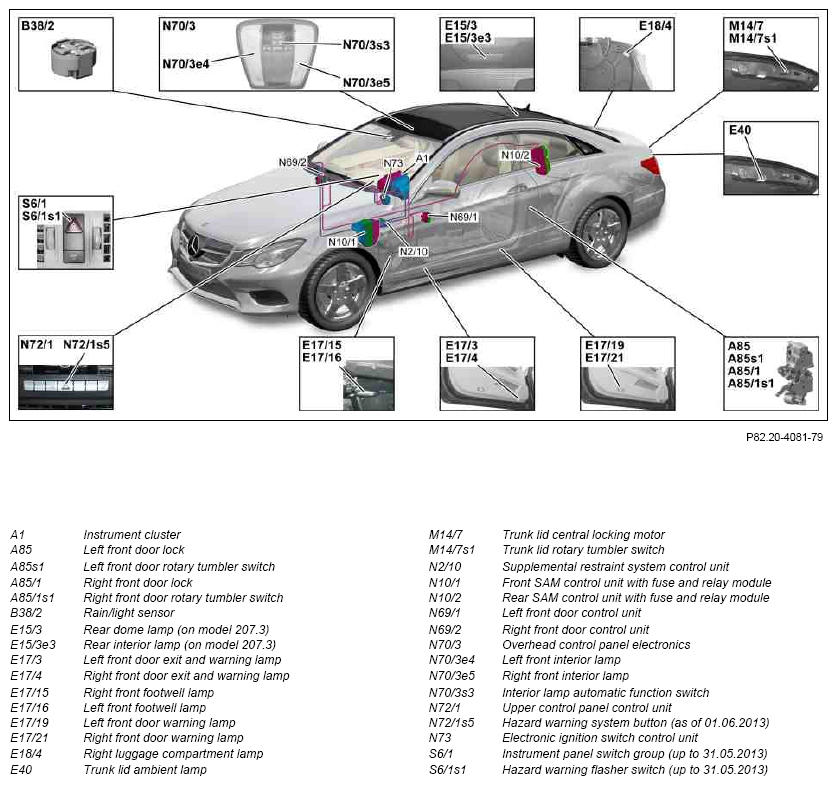

Manual interior lights control, shown on model 207.3

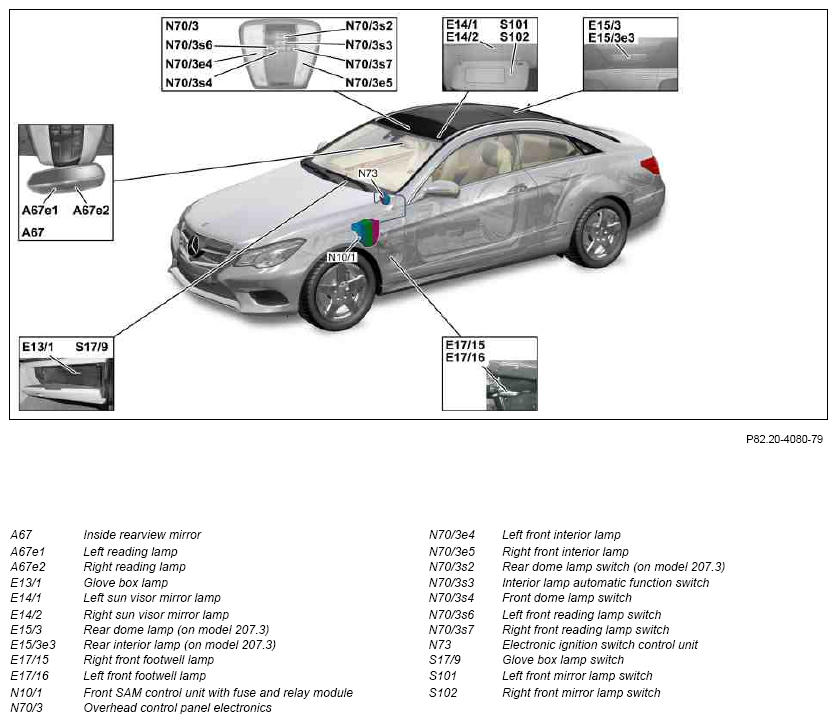

Automatic interior lights control, shown on model 207.3
Search and symbol illumination, shown on model 207.3

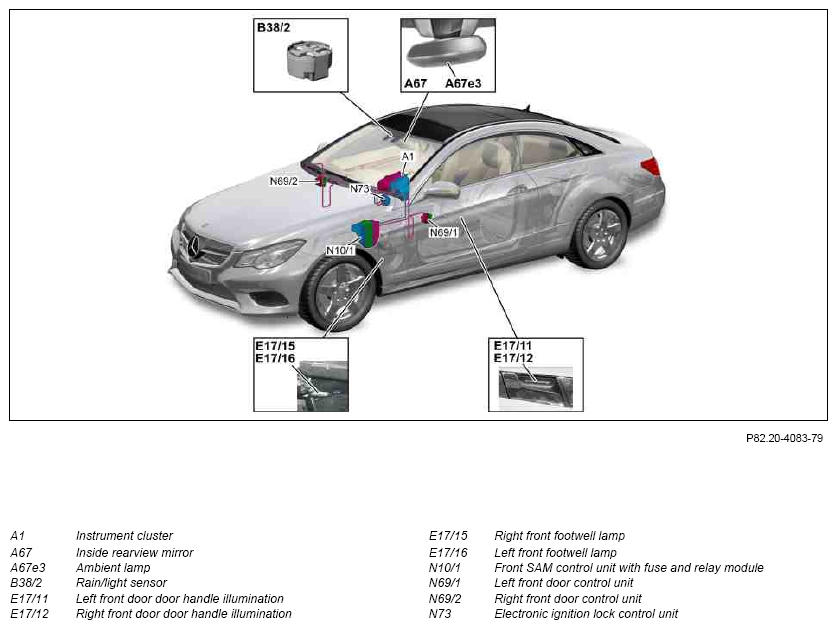

Ambiance illumination, shown on model 207.3
| Component description for instrument cluster | A1 | GF54.30-P-6000CA | |
| Component description for the radio | MODEL 207 up to 3/1/15 up to model year 2016 with CODE 510 (Audio 20 with CD changer) MODEL 207 up to 3/1/15 up to model year 2016 with CODE 523 (MB Audio 20 radio) A2 |
GF82.60-P-3122CAA | |
| MODEL 207 as of 3/2/15 as of model year 2016 with CODE 505 (Radio 20 NTG5, not navigation-enabled) MODEL 207 as of 3/2/15 as of model year 2016 with CODE 522 (Audio 20 radio) A2 |
GF82.60-P-3122CAB | ||
| Component description for radio with auto pilot system | MODEL 207.3/4 with CODE 511 (Audio 50 APS with DVD changer) MODEL 207.3/4 with CODE 525 (MB Audio 50 APS radio) A2/56 |
GF82.61-P-4112CAA | |
| Component description for COMAND controller unit | MODEL 207.3/4 up to model year 2013 with CODE 512 (COMAND APS with DVD changer) MODEL 207.3/4 up to model year 2013 with CODE 527 (COMAND APS with single DVD drive (with navigation)) A40/3 |
GF82.85-P-3136CA | |
| MODEL 207.3/4 up to model year 2013 with CODE 526 (COMAND with single DVD drive (without navigation)) MODEL 207.3/4 up to model year 2013 with CODE 528 (COMAND with DVD changer) A40/3 |
GF82.85-P-3136CAA | ||
| MODEL 207 as of 9/1/14 up to 3/1/15 up to model year 2016 with CODE 526 (COMAND with single DVD drive (without navigation)) MODEL 207 up to 3/1/15 as of model year 2013 up to model year 2016 with CODE 512 (COMAND APS with DVD changer) MODEL 207 up to 3/1/15 as of model year 2013 up to model year 2016 with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 207 up to 8/31/14 as of model year 2013 with CODE 528 (COMAND with DVD changer) A40/3 |
GF82.85-P-3136CAB | ||
| MODEL 207 as of 3/2/15 as of model year 2016 with CODE 531 (COMAND APS) A40/3 |
GF82.85-P-3136CAC | ||
| MODEL 207.3/4 up to model year 2013 with CODE 498 (Japanese version) with CODE 527 (COMAND APS with single DVD drive (with navigation)) A40/3 |
GF82.85-P-3136CAJ | ||
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501CA | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080CAM | |
| Component description for CDI control unit | MODEL 207.3/4 with ENGINE 642.8 N3/9 | GF07.16-P-6000OG | |
| MODEL 207.3/4 with ENGINE 651.9 N3/9 | GF07.16-P-6000OM | ||
| Component description for ME-SFI (ME) control unit | MODEL 207.3/4 with ENGINE 271.8 N3/10 | GF07.61-P-6000MG | |
| MODEL 207.3/4 with ENGINE 272.9 (except 272.984) N3/10 | GF07.61-P-6000MI | ||
| MODEL 207.3/4 with ENGINE 272.984 N3/10 | GF07.61-P-6000MIE | ||
| MODEL 207.3/4 with ENGINE 273.9 N3/10 | GF07.61-P-6000ML | ||
| MODEL 207.3/4 with ENGINE 274.9 N3/10 | GF07.61-P-6000MRB | ||
| MODEL 207.3/4 with ENGINE 276.8 as of model year 2014 N3/10 | GF07.61-P-6000MMP | ||
| MODEL 207.3/4 with ENGINE 276.9 N3/10 | GF07.61-P-6000MM | ||
| MODEL 207.3/4 with ENGINE 278.9 N3/10 | GF07.61-P-6000MMA | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070CA | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030CA | |
| Component description for electronic selector lever module control unit | MODEL 207.3/4 with TRANSMISSION 722.6 up to model year 2012 N15/5 | GF27.60-P-5163ACL | |
| MODEL 207 with TRANSMISSION 722.9 up to model year 2014 N15/5 | GF27.60-P-5163AHC | ||
| Rear control unit, component description | N22/6 | GF54.21-P-4134CA | |
| Component description for automatic air conditioning control and operating unit | MODEL 207.3/4 without CODE 581 (Comfort automatic air conditioning) N22/7 |
GF83.40-P-3000CAA | |
| MODEL 207.3/4 with CODE 581 (Comfort automatic air conditioning) N22/7 |
GF83.40-P-3000CAB | ||
| Component description for left front door control unit | N69/1 | GF72.29-P-6001CA | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009CA | |
| Component description for electronic overhead control panel | N70/3 | GF82.20-P-5217CA | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040CA | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001CA | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051CA | |
| Contents, function description of interior illumination (IBL) | GF82.20-P-0998CA |
