Component description for electronic selector lever module control unit - GF27.60-P-5163AHC

TRANSMISSION 722.9 in MODEL 207 up to model year 2014

Location

The electronic selector lever module control unit is located in the center console between the two front seats.

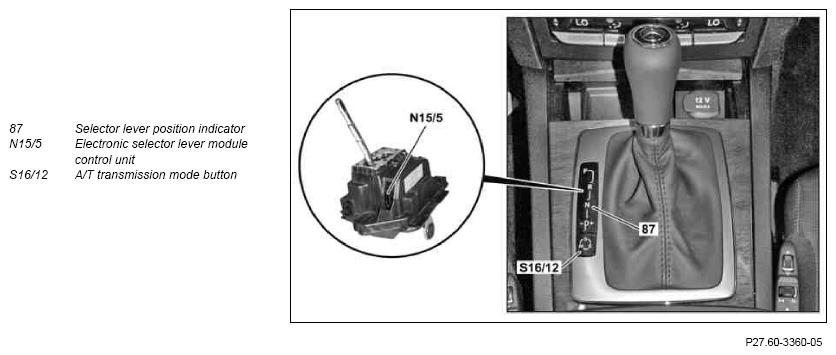

View of center console, shown on model 207.3 as of model year 11/AEJ 10

Task

The electronic selector lever module control unit records the positions of the selector lever (non-contact) using inductive sensors.

The selector lever positions and touch shifts carried out are detected in a non-contact manner by means of optoelectronic switches. A photoelectric barrier is closed or interrupted each time the position of the selector lever is changed.

Controller Area Network (data bus/CAN bus) (CAN)

The electronic selector lever module control unit is connected via the drive train CAN (CAN C) to the vehicle's CAN network, and exchanges data with other control units.

Input and output signals

Input signals are evaluated by the electronic selector lever module control unit and the corresponding output signals are output:

• Direct input signals
• Direct output signals
• CAN input signals
• CAN output signals

Direct input signals

• Circuit 30g
• circuit 31
• Selector lever position
• Status of A/T transmission mode button
• Push button +/-

Direct output signals

• Selector lever positions R and P locking solenoid (Y66/2)
• Function illumination for selector lever position "P", "R", "N" and "D" (with code (494) USA version)
• Switch and controls illumination "circuit 58d" for gear indicator

CAN input signals

Instrument cluster (A1)

• Circuit 58 dimmed

Electronic Stability Program control unit (N304) (except code (233) DISTRONIC PLUS) or Electronic Stability Program Premium control unit (N307) (with code (233) DISTRONIC PLUS)

• Wheel speed signals
• braking torque

Electronic ignition lock control unit (N73)

• Circuit 50 signal
• Circuit 15 signal
• Stop lamp actuation feedback
• drive authorization system, stage 3 (ADS 3)

Steering column tube module control unit (N80)

• Signal for steering wheel downshift button (S110/1)
• Signal for steering wheel upshift button (S111/1)

Front SAM control unit with fuse and relay module (N10/1)

• Diagnosis request

CAN output signals

Instrument cluster

• Selector lever position for the gear indicator (A1p12)
• Program selection for transmission mode display (A1p16)

CDI control unit (N3/9) (for diesel engines) or ME-SFI [ME] control unit (N3/10) (for gasoline engines)

• Selector lever position

Electronic ignition switch control unit

• Selector lever position for reversing lamp actuation
• Enable request from DAS 3

Control unit for fully electronic transmission control (Y3/8n4)

• Selector lever position
• Transmission mode selection

Front SAM control unit with fuse and relay module

• Diagnostic data

Functions

Base function

• Read in signals from the A/T transmission mode button
• Transmission of selector lever positions "P", "R", "N" and "D" and touch shifts "1", "2", "3", "4", "5", "6" and "7"

Shift lock function

• Park pawl
• Ignition-lock lock
• Selector lever position "P" lock
• Shift lock override (Manual unlocking, selector lever position "P")

The electronic selector lever module control unit is flashable, i.e. the complete software in the electronic selector lever module control unit can be changed (replaced). The software required to program the control units is stored on the Star Diagnosis software DVD.

Wiring diagram for electronic selector lever module control unit

PE27.19-P-2102-97EAA
