Component description for COMAND controller unit - GF82.85-P-3136CAA
MODEL 207 with CODE (526) COMAND with single DVD drive (without navigation) with CODE (528) COMAND with DVD changer up to model year 2013
Shown on model 207.3 with code (528) COMAND incl. DVD changer
Location
The COMAND controller unit is located in the center console.
Task
The COMAND controller unit fulfills the following tasks:
- Central operating unit for the entertainment and communication systems integrated into the vehicle
- Reading in the controls and input signals
- Evaluation of input factors
- Activation of output media and system components
Central operating unit for the entertainment and communication systems integrated into the vehicle
The COMAND controller unit provides the user with a structured and uniform interface for the following system components:
- Video
- DVD
- Media interface for external audio or mass storage devices (with code (518) Media interface)
- Communication (telephone)
- System settings and (as of 1.7.2011) Fuel consumption indicator
- Audio
- Radio
- CD/DVD audio
- Memory card
- Electrical connector for AUX connection (X39/45), up to 31.5.2011 in glove compartment and as of 1.6.2011 in stowage compartment (telephone compartment) under the center armrest, for external audio equipment (without code (518) Media Interface)
- USB electrical connector (X115) (as of 1.7.2011), in stowage compartment (telephone compartment) under the center armrest
- Bluetooth® audio (as of 1.6.2010)
Reading in the controls and input signals
The input factors are read in via the following connections:
- Direct lines
- CAN
- Media Oriented System Transport (MOST)
Direct lines
The COMAND controller unit has the following direct connections:
- Wake-up for MOST (bi-directional)
- AUX jack electrical connector (without code (518) Media Interface)
- USB electrical connector (as of 1.7.2011)
- Emergency call system control unit (N123/4) (with code (359) TELEAID emergency call system) (audio muting)
- FM, AM and CL [ZV] antenna amplifier (A2/18) (model 207.3) or FM, AM and CL [ZV] antenna amplifier (A2/55) (model 207.4)
- Rear window antenna amplifier for FM antenna (A2/19) (model 207.3) or
TV 3, FM2 and DAB band III antenna amplifier (A2/54) (model 207.4)
- Color video baseband signal (CVBS) from:
- Reversing camera power supply module (N66/10) (with code (218) Reversing camera)
- Media interface electrical connector (X18/70) (with code 518) Media Interface)
- COMAND fan motor (M4/13) (diagnosis)
- Bluetooth antenna (A2/91)
- Hands-free system microphone (A67b1) (two microphones)
CAN
- The COMAND controller unit is a telematics CAN (CAN A) subscriber.
- The COMAND controller unit is an interior CAN (CAN B) subscriber.
MOST
The COMAND controller unit receives control and audio signals from the following control units:
- Sound system amplifier control unit (N40/3) (with code (810) Sound system)
- Satellite digital audio radio (SDAR) control unit (N87/5) (with code (536) SIRIUS satellite radio, as of 1.6.2010)
- SDAR/high definition tuner control unit (N87/8) (with code (536) SIRIUS satellite radio, up to 31.5.2010)
- Media interface control unit (N125/1) (with code (518) Media interface)
Evaluation of input factors
The input values are processed in the COMAND controller unit.
Activation of output media and system components
- Audio output: Speaker (without code (810) Sound system)
- Video output: Low voltage differential signaling (LVDS) line transmits picture and video signals from the COMAND controller unit to the Audio/COMAND display (A40/8)
- COMAND fan motor (power supply and control)
- Microphone output to emergency call system control unit (with code (359) TELEAID emergency call system)
Design
Shown on vehicle up to 30.6.2011
The following components are also integrated into the COMAND controller unit:
- Radio tuner including high definition (HD) radio tuner
- CD/DVD changer (with code (528) COMAND incl. DVD changer) or CD/DVD drive (with code (526) COMAND with single DVD drive (without navigation))
- Card reader for memory cards
- Bluetooth® receiver
- Central computer
- Audio amplifier
Function

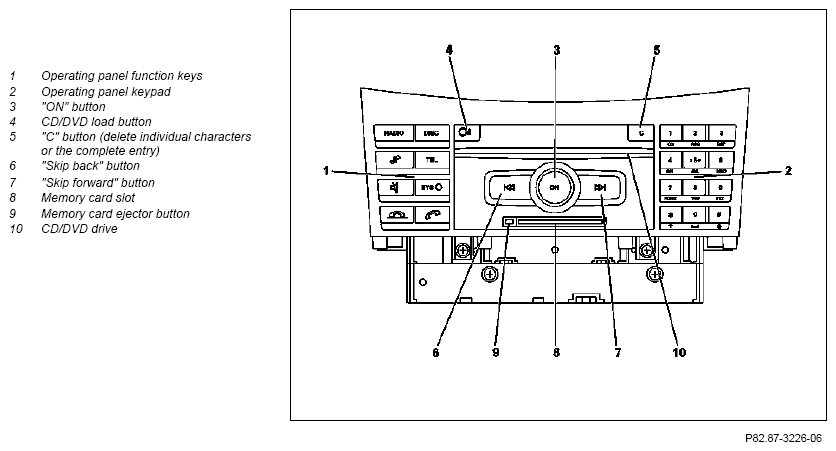

- Controls
- DVD drive
- Card reader for memory cards
Controls
The operating panels on the COMAND controller unit are read in and provided to the central computer. The button operations are processed further in the central computer and forwarded via MOST, the telematics CAN and the interior CAN to the other system components in the form of messages. If the ON button on the COMAND controller unit is pressed, the COMAND controller unit is switched on. The volume is regulated for each audio source set by turning the ON button. The function keys switch over to the audio source desired by the user.
In the event of a system fault or system crash, pressing the "ON" button for t = 8 s will reboot the COMAND controller unit.
DVD drive
The integrated DVD drive can be used to play an audio CD/DVD or a video DVD.
Card reader for memory cards
With the aid of the integrated card reader, data from a memory card can be stored on the internal hard disk and then called up.
Card reader variants
In vehicles up to 30.6.2011 the card reader is compatible with Personal Computer Memory Card International Association (PCMCIA) memory cards.
In vehicles as of 1.7.2011 the card reader is compatible with Secure Digital (SD) memory cards.
Variants
The COMAND controller unit is available in the following variants:
- Code (526) COMAND with single DVD drive (without navigation)
- Code (528) COMAND incl. DVD changer, up to 30.6.2011 or as of 1.7.2011
Diagnosis
The COMAND controller unit is the diagnosis gateway for all MOST users. The diagnostic communication takes place between the COMAND controller unit and the front SAM control unit with fuse and relay module (N10/1) via the interior CAN. The diagnostic communication between the front SAM control unit and the diagnostic connector (X11/4) connected to the "IS tester" is performed via diagnostic CAN (CAN D).
| Technical data Designation |
Unit | Values | Tolerance range | Remarks |
|---|---|---|---|---|
| COMAND controller unit | ||||
| Power supply | V | 12 | Operating voltage (UB ) | |
| Voltage limits | V | 9 | Minimum (UBmin ) | |
| V | 16 | Maximum (UBmax ) | ||
| Power consumption | A | 15 | Rated current consumption (IBmax ) | |
| A | 3.5 | Rated current consumption (IBTyp ) | ||
| A | approx. 4.5 | Speaker (IAction ) | ||
| A | approx. 0.1 | Cradle ON/OFF (IAction ) (with code (386) Comfort telephony) | ||
| mA | 0.1 | Quiescent current (I0 ) | ||
| Reverse polarity protection | Yes | |||
| Additional specific parameters | None | |||
| Special features | The COMAND controller unit is protected with a 20 A fuse in the combination plug, MQS 40+4 pin (electrical) at the rear panel. | |||
| Flash capability/coding capability | Yes/yes | |||
| COMAND fan motor | ||||
| Model | Direct current motor | |||
| Power consumption | mA | 500 | Rated current | |
| USB electrical connection (as of 1.7.11) | ||||
| Model | Plug connection | |||
| Power consumption | mA | 500 | Permanent current |
| Cockpit Management and Data System (COMAND) control unit wiring diagram | A40/3, as of 1.7.2011 | PE82.85-P-2101-97EAD | |
| A40/3, as of 1.7.2011 | PE82.85-P-2101-97EAE | ||
| A40/3, up to 30.6.2011 | PE82.85-P-2101-97EAA |
