Remove/install right water-cooled charge air cooler - AR09.41-P-6828MNA
ENGINE 177 in MODEL 205
MODIFICATION NOTES
| 20.8.15 | Screw / nut pressure transducer to bracket / intercooler | Motor 177 | BA09.41-P-1009-01X |
| Notes on threaded connections with aluminum screws/bolts | AH00.00-P-0006-01RM | ||
| Remove/install | |||
| 1 | Drain coolant from full-flow radiator | AR20.00-P-1142LW | |
| 2 | Drain coolant from low-temperature circuit | AR09.41-P-6834MNA | |
| 3 | Drain air conditioning system | AR83.30-P-1760LW | |
| 4 | Remove left-hand air filter housing | AR09.10-P-1150MNA | |
| 5 | Remove right air filter housing | AR09.10-P-1150MNA | |

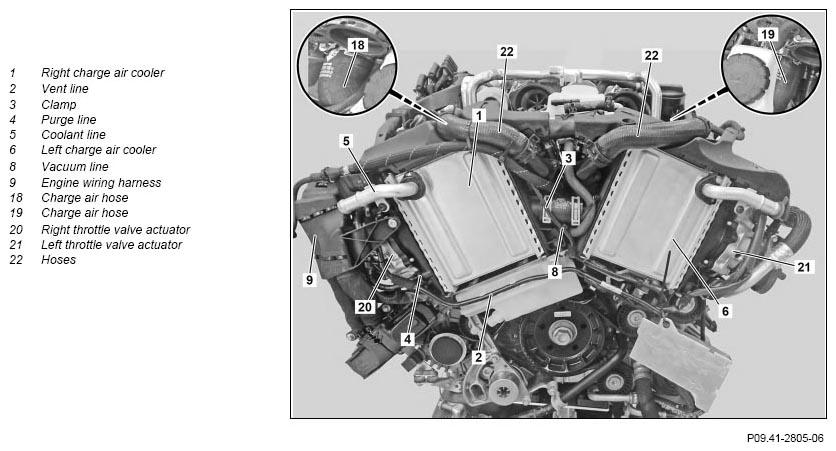

| 6 | Detach hoses (22) at left and right charge air cooler (6, 1) | Figure | |
| 7 | Remove fan unit | AR20.40-P-5050MNA | |
| 8 | Detach both coolant hoses on full-flow radiator | AR20.20-P-7441-01RQ | |
| 9 | Detach both coolant hoses at radiator for low-temperature water circuit | AR20.20-P-7441-01RQ | |
| 10 | Disconnect electrical connection on pressure sensor of the condenser of the A/C | AR83.30-P-6540LWA | |
| 11 | Detach both refrigerant lines at condenser and close off openings with grommets | AR83.30-P-6540LWA | |
| 12 | Unclip engine oil cooler and fix with attached lines outside the working area | AR18.30-P-1000MNA | |
| 13 | Remove radiator package completely upwards | ||
| 14 | Detach low-temperature circuit expansion reservoir () and place to one side with connected hoses | AR09.41-P-0001MNA | |

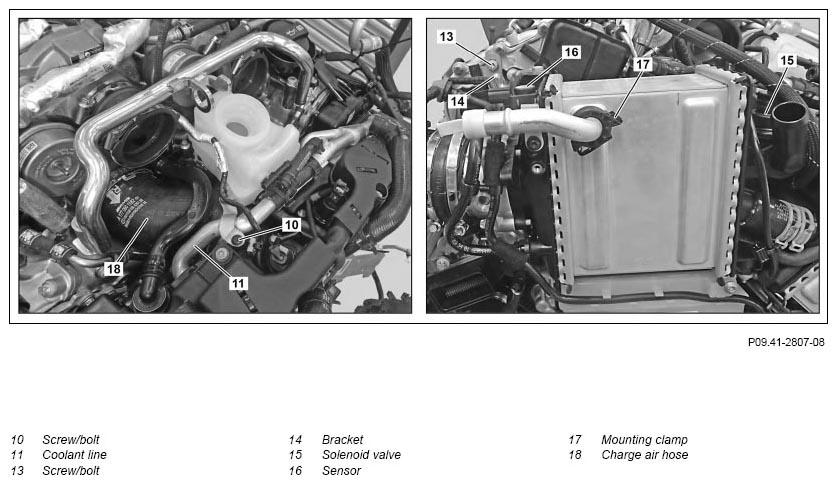

| 15 | Remove coolant line (11) | AR20.20-P-7442MNA | |
| 16 | Disconnect engine wiring harness (9) | AR01.00-P-2410-02MNA | |
| 17 | Detach purge line (4) from the right charge air cooler (1) | ||
| 18 | Unclip vacuum line (8) on right charge air cooler (1) and place to one side | ||
| 19 | Unclip vent line (2) at lower low-temperature circuit coolant expansion reservoir | ||
| 20 | Unfasten mounting clamp of the charge air hose (18) on right charge air cooler (1) | ||
| 21 | Unfasten mounting clamp of the charge air hose (19) on left charge air cooler (6) | ||
| 22 | Unfasten mounting clamps on right throttle valve actuator (20) and left throttle valve actuator (21) | ||
| 23 | Open clamp (3) and push in the direction of the left charge air cooler (1) | ||
| 24 | Remove bracket (14) | *BA09.41-P-1006-01X | |
| 25 | Detach purge line on bracket of left charge air cooler (6) | *BA09.41-P-1009-01X | |
| 26 | Detach bracket of the left charge air cooler (6) on left front cover of the left cylinder head | *BA09.41-P-1006-01X | |
| 27 | Carefully take out right charge air cooler (1) and left charge air cooler (6) upwards from the brackets and right charge air cooler (1) to the front | ||
| 28 | Remove sensor (16) | When replacing the right charge air cooler (1) | AR09.41-P-0003MNA |
| 29 | Detach right throttle valve actuator (20) from the right charge air cooler (1) | When replacing the right charge air cooler (1) | AR09.41-P-1330MNA |
| 30 | Open mounting clamp (17) and remove coolant line (13) from left charge air cooler (1) | When replacing the right charge air cooler (1) |
|
| 31 | Detach solenoid valve (15) from right charge air cooler (1) | When replacing the right charge air cooler (1) |
AR09.40-P-3000MNA |
| 32 | Install in the reverse order |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.41-P-1006-01X | Bolt, upper charge air cooler bracket to charge air cooler/chain case cover | Nm | 9 |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.41-P-1009-01X | Bolt/nut, pressure transducer to bracket/charge air cooler | Nm | 6 |
