Remove/install fan unit - AR20.40-P-5050MNA
ENGINE 177 in MODEL 205
| Remove/install | |||
| 1 | Drain off coolant | AR20.00-P-1142LW | |
| 2 | Remove reinforcement (6) | AR62.30-P-1570LW | |

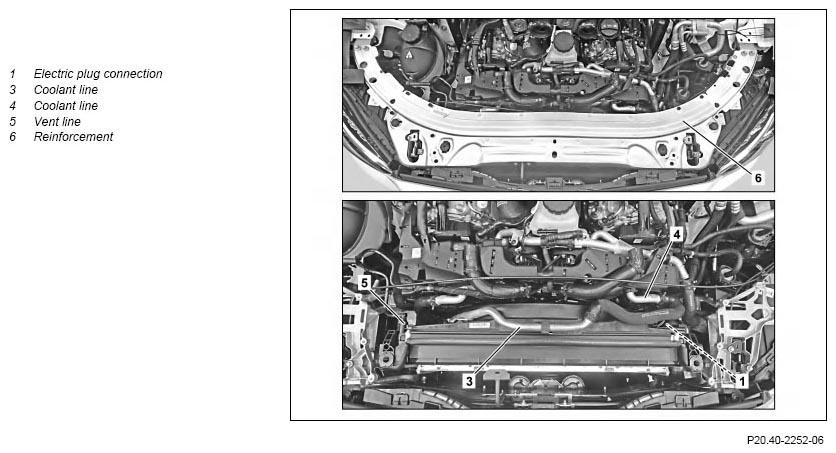

| 3 | Disconnect electrical connection on electrical plug connection (1) | ||
| 4 | Detach upper coolant hose (3) from fan unit (2) | ||
| 5 | Detach upper coolant line (3) from coolant line (4) for left charge air cooler | AR09.41-P-6827MNA | |
| 6 | Remove air duct segment (7) | ||
| 7 | Detach A/T oil cooler on fan unit (2) and place with attached oil lines to one side | AR27.55-P-1000LW | |
| 8 | Detach left coolant hose (2) at fan unit | ||
| 9 | Detach vent line (5) | AR20.20-P-7441-01RQ | |

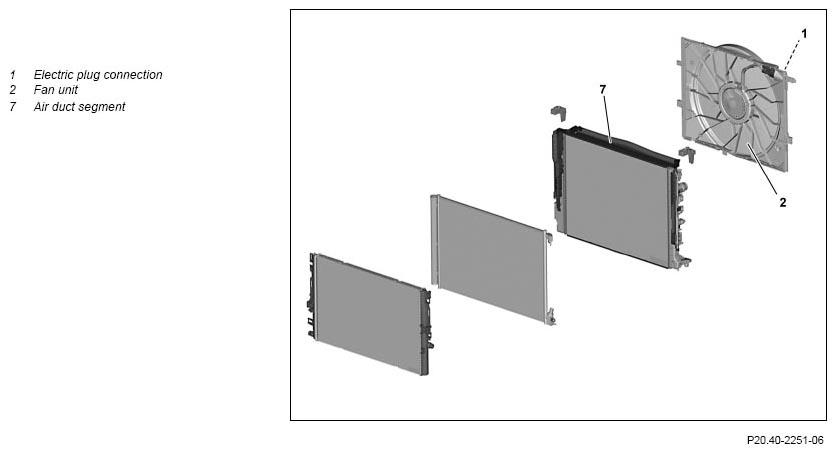

| 10 | Unhook fan unit (2) from radiator frame and pull out upwards | ||
| 11 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 12 | Perform an engine test run and check engine cooling system for proper operation |
