Drain, evacuate and recharge air conditioning, check for proper operation and check for leaks - AR83.30-P-1760LW

MODEL 205

MODEL 253

Shown on model 205

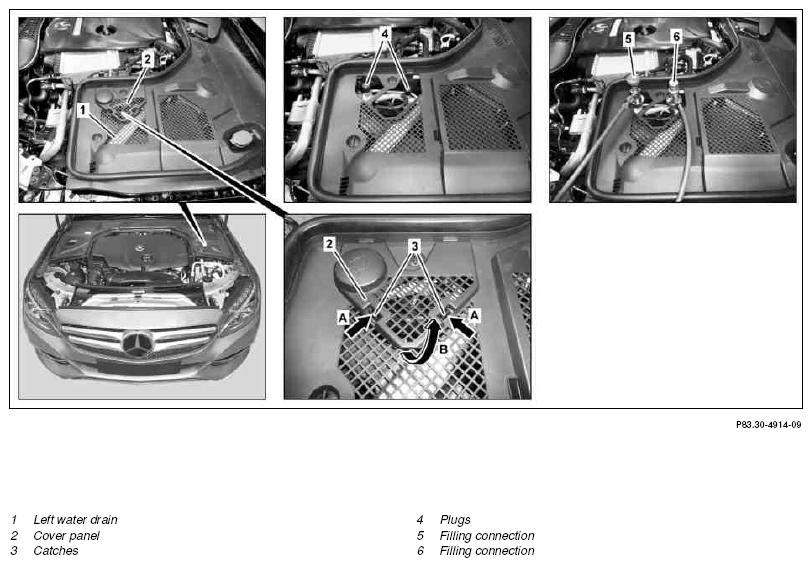

Fig 1: Removing Air Conditioning Cover Panel - Shown On Model 205
G10134875DANGERNOTESNOTESIMPORTANTREFER TO SPECIAL TOOLSIMPORTANTREFER TO CAPACITIES & SPECIFICATIONSNOTESNOTESIMPORTANTFLUID SPECIFICATIONFLUID SPECIFICATIONFLUID SPECIFICATIONFLUID SPECIFICATIONFLUID SPECIFICATIONFLUID SPECIFICATIONFLUID SPECIFICATIONFLUID SPECIFICATIONFLUID SPECIFICATIONFLUID SPECIFICATIONINSPECTCourtesy of MERCEDES-BENZ USA
DANGER Risk of explosion  caused by welding or soldering work on closed air conditioning system. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with liquid refrigerant. Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated areas. Carry out repair work on the air conditioning system circuit only after the system has been drained. AS83.00-Z-0001-01A
NOTES Protect air conditioning circuit and components from moisture when carrying out repair work   AH83.30-P-0005-01A
NOTES Procedure for a damaged or leaky air conditioning system   AH83.30-N-0004-01A
IMPORTANT Notes on handling refrigerant R134a   AH83.30-N-0003-01A
  Draining
1 Press catches (3) in direction of arrow (A), swivel cover (2) upwards in direction of arrow (B) and remove
2 Unscrew plugs (4)
3 Connect filler connections (5, 6) of air conditioning service unit to corresponding diagnostic sockets
REFER TO SPECIAL TOOLS 000 588 04 82 00 Air conditioning service unit   WS83.00-P-0031B
    IMPORTANT When operating the air conditioning service unit, proceed in accordance with the operator's manual from the manufacturer.
4 Suction off refrigerant
5 Note down quantity of extracted refrigerant as well as compressor oil
6 Install new desiccant cartridge If required.
AR83.30-P-6521LW
  Evacuate
7 Clean refrigerant and evacuate refrigerant circuit
8 Conduct vacuum test using air conditioning service unit
  Filling
9 Add new compressor oil to the refrigerant circuit according to the oil filling quantity noted during extraction
REFER TO CAPACITIES & SPECIFICATIONS Compressor oils (specification 362.0)   Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
NOTES
Only use the approved compressor oil.
If it is proven that a different compressor oil has been used, we will refuse to reimburse costs within the warranty and goodwill period. Daimler AG reserves the right to perform reexaminations.
NOTES
Correct oil filling quantity in refrigerant circuit. In the event of an incorrectly measured oil filling quantity, the refrigerant compressor may be damaged.
IMPORTANT Depending on the repair case, the oil filling quantity may need to be adjusted accordingly.
FLUID SPECIFICATION Additional quantity of oil to be added when system suddenly looses fluid (e.g. line ruptured) *BF83.55-P-1002-01J
FLUID SPECIFICATION Additional oil filling quantity after replacement of condenser *BF83.55-P-1003-01J
FLUID SPECIFICATION Additional oil filling quantity after replacement of evaporator *BF83.55-P-1004-01J
FLUID SPECIFICATION Additional oil filling quantity after replacement of suction line *BF83.55-P-1005-01J
FLUID SPECIFICATION Additional oil filling quantity after replacement of pressure line *BF83.55-P-1006-01J
FLUID SPECIFICATION Additional oil filling quantity after replacement of refrigerant compressor *BF83.55-P-1007-01J
FLUID SPECIFICATION Additional oil filling quantity with detectable leakage *BF83.55-P-1008-01J
FLUID SPECIFICATION Additional oil filling quantity after replacement of desiccant cartridge *BF83.55-P-1009-01J
FLUID SPECIFICATION Model 205
with code ME04 (Mild hybrid drive)
with code ME06 (Hybrid drive 50-KW variant (incl. plugin))
Model 253
with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN)) Additional oil filling capacity after replacing high-voltage battery		 *BF83.55-P-1010-01J
10 Charge air conditioning system FLUID SPECIFICATION Model 205 with engine 177
Model 205 with engine 274
except code ME06 (Hybrid drive 50-KW variant (incl. plugin))
Model 205 with engine 274
with code ME06 (Hybrid drive 50-KW variant (incl. plugin))
Model 205 with engine 276, 626
Model 205 with engine 651
except code ME04 (Mild hybrid drive)
Model 205 with engine 651
with code ME04 (Mild hybrid drive)
Model 253
except code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN))
Model 253
with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN)) Filling capacity of air conditioning/automatic air conditioning		 *BF83.00-P-1001-01M
INSPECT Check
11 Conduct pressure test using air conditioning service unit In the event of a pressure drop during the pressure test:
↓
Check air conditioning system for leakage.
AR83.30-P-1761LW
12 Detach filler connections (5, 6)
13 Install cover (2)
AIR CONDITIONING/AUTOMATIC AIR CONDITIONING

Number Designation Model 205 with engine 177 MODEL 205 with ENGINE 274 with CODE ME06
BF83.00-P-1001-01M Filling capacity of air conditioning/automatic air conditioning Refrigerant R134 a g 610 670
Specification   MB 361.0 refrigerant R134a A 000 989 03 48 MB 361.0 refrigerant R134a A 000 989 03 48
AIR CONDITIONING/AUTOMATIC AIR CONDITIONING

Number Designation MODEL 205 with ENGINE 651 with CODE ME04 MODEL 205 with ENGINE 274 except CODE ME06, MODEL 205 with ENGINE 276, 626, MODEL 205 with ENGINE 651 except CODE ME04
BF83.00-P-1001-01M Filling capacity of air conditioning/automatic air conditioning Refrigerant R134 a g 710 630
Specification   MB 361.0 refrigerant R134a A 000 989 03 48 MB 361.0 refrigerant R134a A 000 989 03 48
AIR CONDITIONING/AUTOMATIC AIR CONDITIONING

Number Designation Model 253 except code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN)) Model 253 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN))
BF83.00-P-1001-01M Filling capacity of air conditioning/automatic air conditioning Refrigerant R134 a g 630 670
Specification   MB 361.0 refrigerant R134a A 000 989 03 48 MB 361.0 refrigerant R134a A 000 989 03 48
REFRIGERANT COMPRESSOR

Number Designation Model 205 except code ME04 (Mild hybrid drive) except code ME06 (Hybrid drive 50-KW variant (incl. plugin)) Model 205 with code ME04 (Mild hybrid drive) Model 205 with code ME06 (Hybrid drive 50- KW variant (incl. plugin))
BF83.55-P-1002-01J Additional quantity of oil to be added when system suddenly looses fluid (e.g. line ruptured) Compressor oil cm3 40 40
Specification   Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
REFRIGERANT COMPRESSOR

Number Designation Model 253 except code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN)) Model 253 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN))
BF83.55-P-1002-01J Additional quantity of oil to be added when system suddenly looses fluid (e.g. line ruptured) Compressor oil cm3 40 40
Specification   Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
REFRIGERANT COMPRESSOR

Number Designation Model 205 except code ME04 (Mild hybrid drive) except code ME06 (Hybrid drive 50-KW variant (incl. plugin)) Model 205 with code ME04 (Mild hybrid drive) Model 205 with code ME06 (Hybrid drive 50- KW variant (incl. plugin))
BF83.55-P-1003-01J Additional oil filling quantity after replacement of condenser Compressor oil cm3 20 20
Specification   Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
REFRIGERANT COMPRESSOR

Number Designation Model 253 except code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN)) Model 253 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN))
BF83.55-P-1003-01J Additional oil filling quantity after replacement of condenser Compressor oil cm3 20 20
Specification   Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
REFRIGERANT COMPRESSOR

Number Designation Model 205 except code ME04 (Mild hybrid drive) except code ME06 (Hybrid drive 50-KW variant (incl. plugin)) Model 205 with code ME04 (Mild hybrid drive) Model 205 with code ME06 (Hybrid drive 50- KW variant (incl. plugin))
BF83.55-P-1004-01J Additional oil filling quantity after replacement of evaporator Compressor oil cm3 40 40
Specification   Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
REFRIGERANT COMPRESSOR

Number Designation Model 253 except code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN)) Model 253 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN))
BF83.55-P-1004-01J Additional oil filling quantity after replacement of evaporator Compressor oil cm3 40 40
Specification   Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
REFRIGERANT COMPRESSOR

Number Designation Model 205 except code ME04 (Mild hybrid drive) except code ME06 (Hybrid drive 50-KW variant (incl. plugin)) Model 205 with code ME04 (Mild hybrid drive) Model 205 with code ME06 (Hybrid drive 50-KW variant (incl. plugin))
BF83.55-P-1005-01J Additional oil filling quantity after replacement of suction line Compressor oil cm3 20 20
Specification   Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
REFRIGERANT COMPRESSOR

Number Designation Model 253 except code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN)) Model 253 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN))
BF83.55-P-1005-01J Additional oil filling quantity after replacement of suction line Compressor oil cm3 20 20
Specification   Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
REFRIGERANT COMPRESSOR

Number Designation Model 205 except code ME04 (Mild hybrid drive) except code ME06 (Hybrid drive 50-KW variant (incl. plugin)) Model 205 with code ME04 (Mild hybrid drive) Model 205 with code ME06 (Hybrid drive 50-KW variant (incl. plugin))
BF83.55-P-1006-01J Additional oil filling quantity after replacement of pressure line Compressor oil cm3 20 20
Specification   Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
REFRIGERANT COMPRESSOR

Number Designation Model 253 except code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN)) Model 253 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN))
BF83.55-P-1006-01J Additional oil filling quantity after replacement of pressure line Compressor oil cm3 20 20
Specification   Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
REFRIGERANT COMPRESSOR

Number Designation Model 205 except code ME04 (Mild hybrid drive) except code ME06 (Hybrid drive 50-KW variant (incl. plugin)) Model 205 with code ME04 (Mild hybrid drive) Model 205 with code ME06 (Hybrid drive 50-KW variant (incl. plugin))
BF83.55-P-1007-01J Additional oil filling quantity after replacement of refrigerant compressor Compressor oil cm3 20 20
Specification   Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
REFRIGERANT COMPRESSOR

Number Designation Model 253 except code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN)) Model 253 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN))
BF83.55-P-1007-01J Additional oil filling quantity after replacement of refrigerant compressor Compressor oil cm3 20 20
Specification   Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
REFRIGERANT COMPRESSOR

Number Designation Model 205 except code ME04 (Mild hybrid drive) except code ME06 (Hybrid drive 50-KW variant (incl. plugin)) Model 205 with code ME04 (Mild hybrid drive) Model 205 with code ME06 (Hybrid drive 50- KW variant (incl. plugin))
BF83.55-P-1008-01J Additional oil filling quantity with detectable leakage Compressor oil cm3 20 20
Specification   Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
REFRIGERANT COMPRESSOR

Number Designation Model 253 except code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN)) Model 253 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN))
BF83.55-P-1008-01J Additional oil filling quantity with detectable leakage Compressor oil cm3 20 20
Specification   Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
REFRIGERANT COMPRESSOR

Number Designation Model 205 except code ME04 (Mild hybrid drive) except code ME06 (Hybrid drive 50-KW variant (incl. plugin)) Model 205 with code ME04 (Mild hybrid drive) Model 205 with code ME06 (Hybrid drive 50- KW variant (incl. plugin))
BF83.55-P-1009-01J Additional oil filling quantity after replacement of desiccant cartridge Compressor oil cm3 20 20
Specification   Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
REFRIGERANT COMPRESSOR

Number Designation Model 253 except code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN)) Model 253 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN))
BF83.55-P-1009-01J Additional oil filling quantity after replacement of desiccant cartridge Compressor oil cm3 20 20
Specification   Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
REFRIGERANT COMPRESSOR

Number Designation Model 205 with code ME04 (Mild hybrid drive) Model 205 with code ME06 (Hybrid drive 50-KW variant (incl. plugin)) Model 253 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN))
BF83.55-P-1010-01J Additional oil filling capacity after replacing high-voltage battery Compressor oil 10 10
Specification Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
